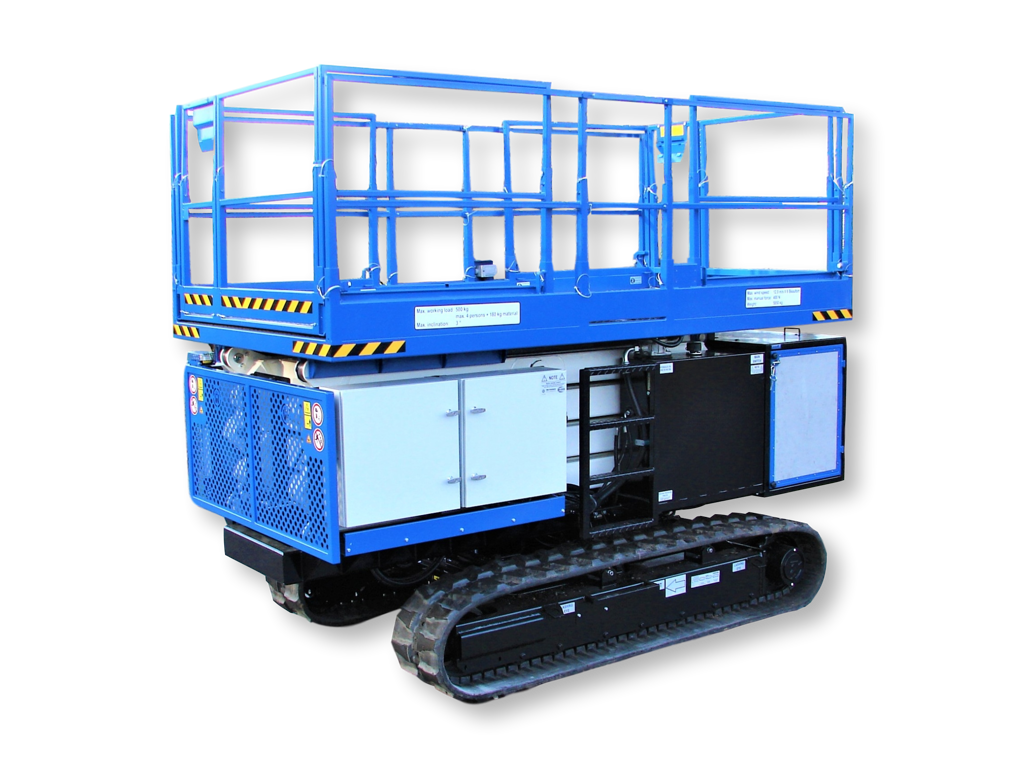

Top-Spin 550 Scissor Lift

Product code: 0699891

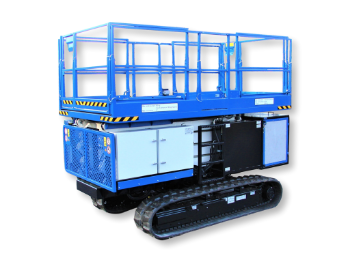

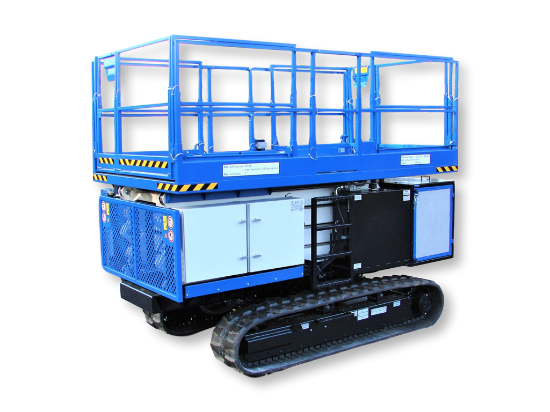

Picture of Top-Spin 550 Scissor Lift
Picture of Top-Spin 550 Scissor Lift
Picture of Top-Spin 550 Scissor Lift
Picture of Top-Spin 550 Scissor Lift

Price on request

-
+
Ask a question
Recommended products

Description

The Top-Spin 550 scissor lift is the most ideal and compact scissor lift of its kind to install screens, lighting and heating systems at height in horticultural department stores.

The work platform can be manually extended at both ends and is equipped with automatic levelling.

Product Files
0699891 Main Dimensions
0699891 Main Dimensions
Specifications
Attribute name Attribute value
Item-number: 0699891
Main dimensions in transport position (mm): Length: 3300
Width: 1800
Height: 2890 (with fencing), 2055 (without fencing)
Working width work platform (mm): 3400-5500
Height of floor work platform (mm): 1750-8994
Max. working height (mm): 10800
Wheelbase (mm): 2280
Gauge (mm): 1400
Width of tracks (mm): 400
Ground clearance (mm): 325
Ground pressure tracks (gr/cm²): 325
Max. level of work platform (°): 3,0 (floor height ≤ 4,5 m) / 3,0 (floor height > 4,5 m)
Max. level of caterpillar base (°): 7,5 (floor height ≤ 4,5 m) / 5,0 (floor height > 4,5 m)
Rotation angle of work platform (°): 90
Max. driving speed (km/h): 1,8 (normal mode) / 3,4 (fast mode)
Weight (kg): 5,850
Lifting capacity of work platform (kg): 500 (platforms retracted)
Diesel engine: Hatz 4H50TIC met EGR/DOC Tier 4 final stage IIIB (55kW)
Options: Mastervolt 24-2500W sine inverter
Dynastart 6,5kVA hydraulic generator
Documents: Handbook of aerial work platform
Instructions for use in Dutch
