Discontinued / no longer available

Teletrack 700R Telescope lift

Product code: 0699907

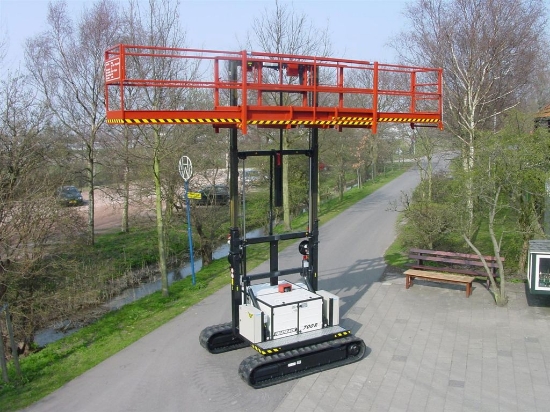

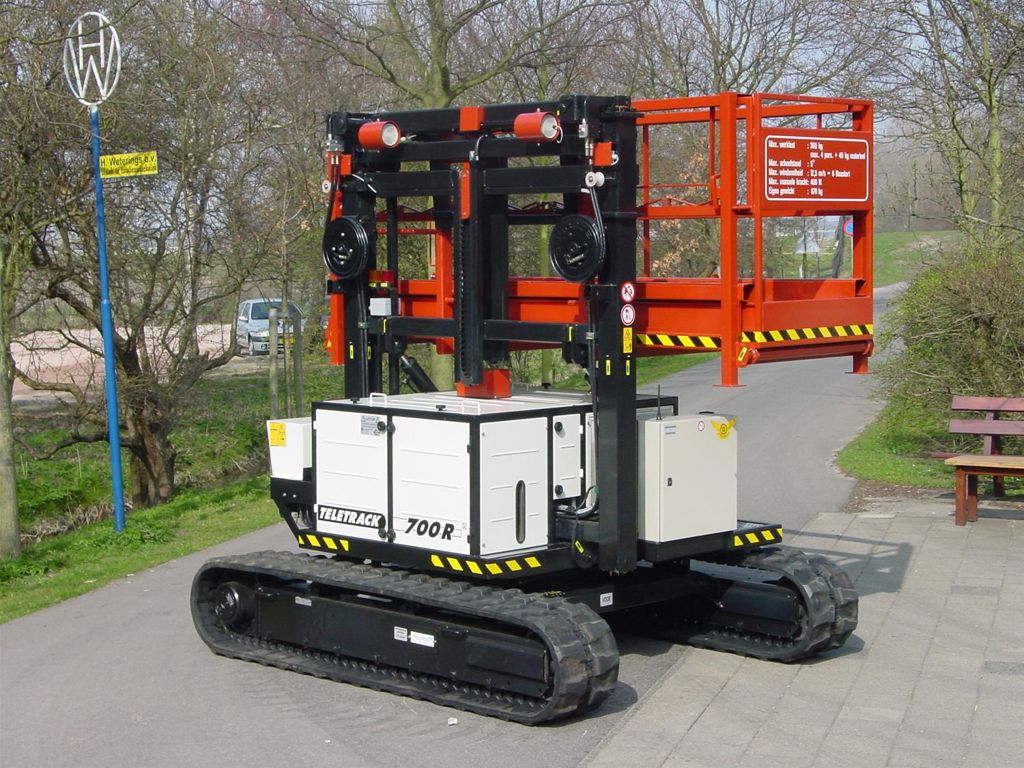

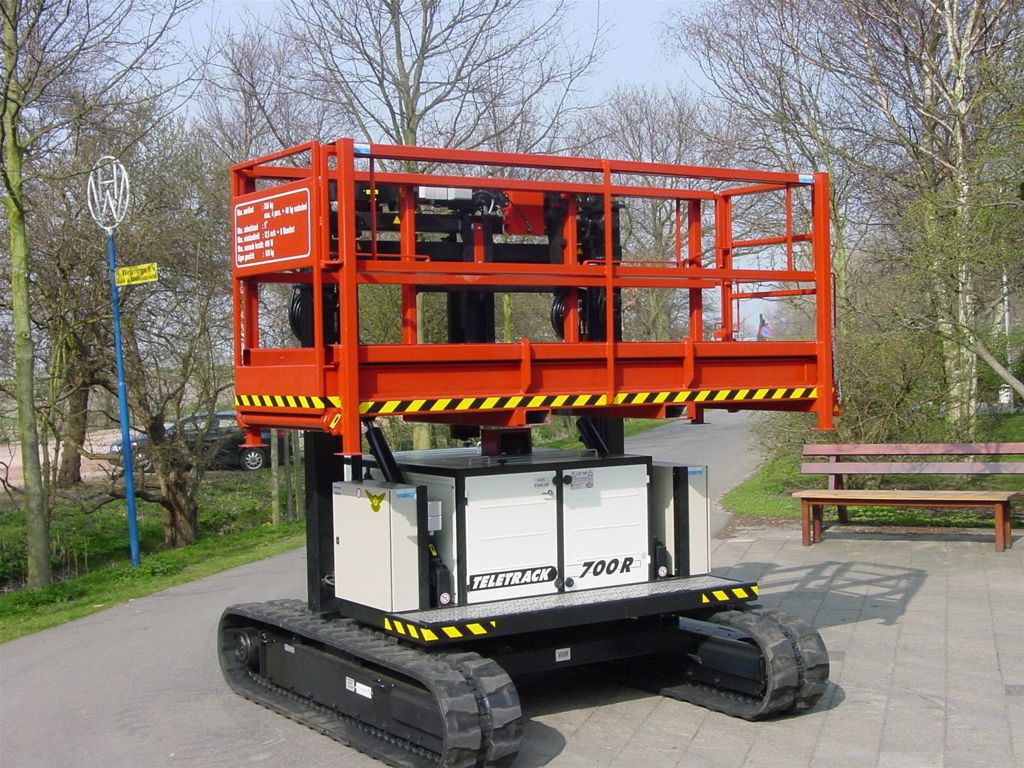

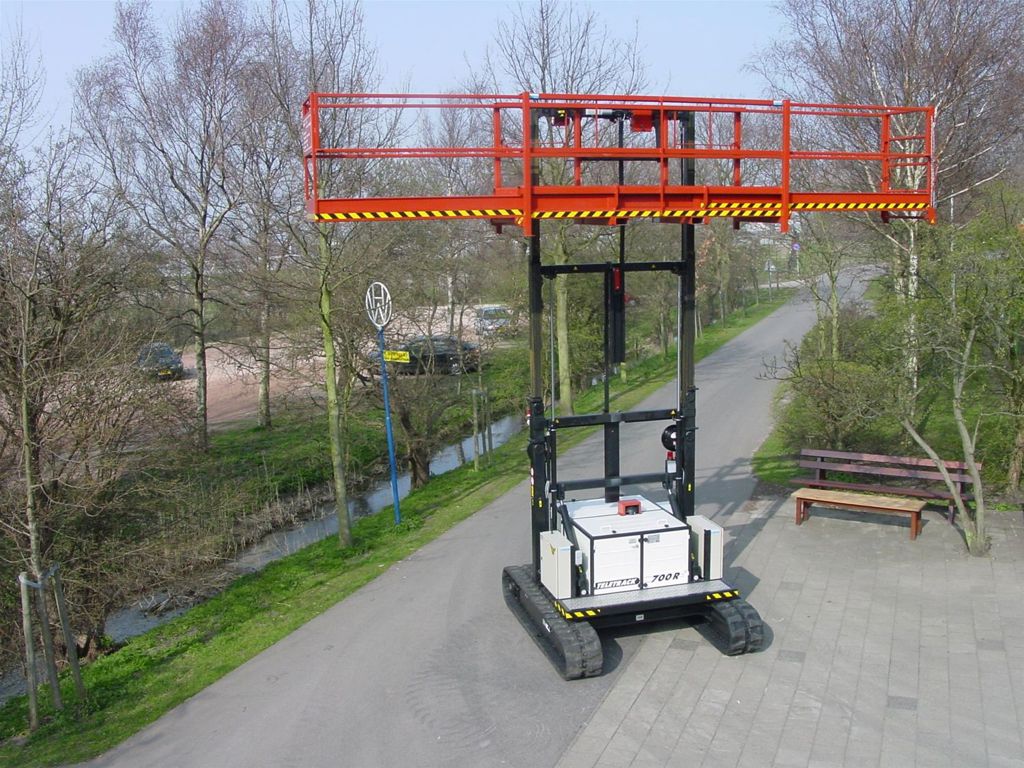

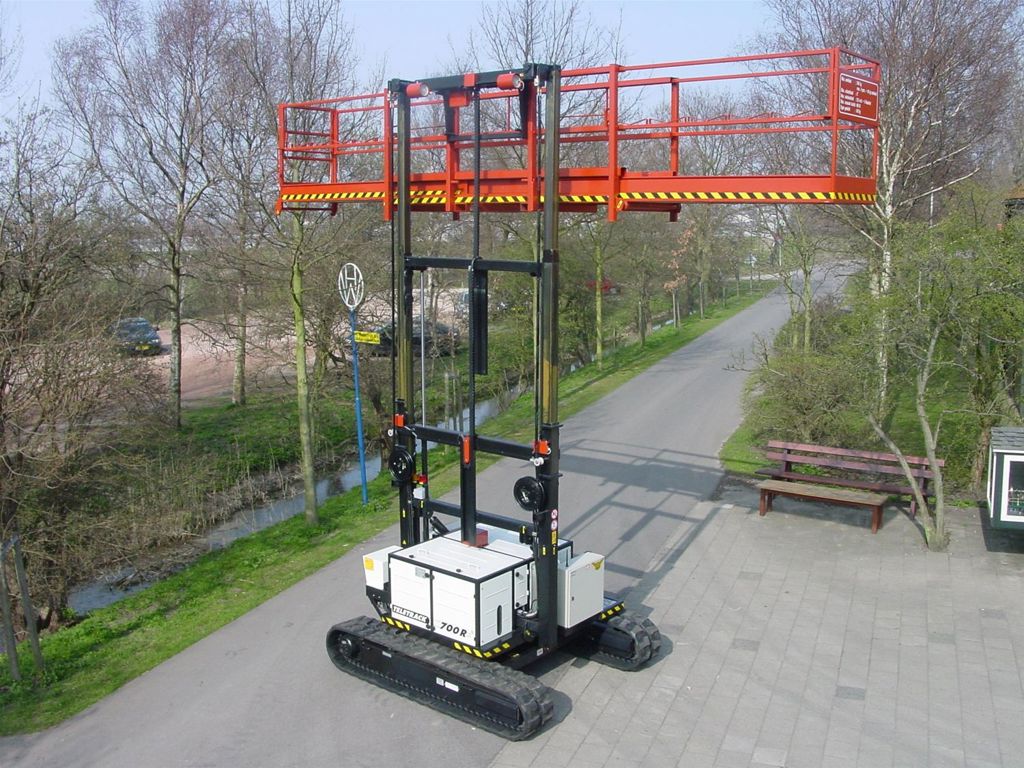

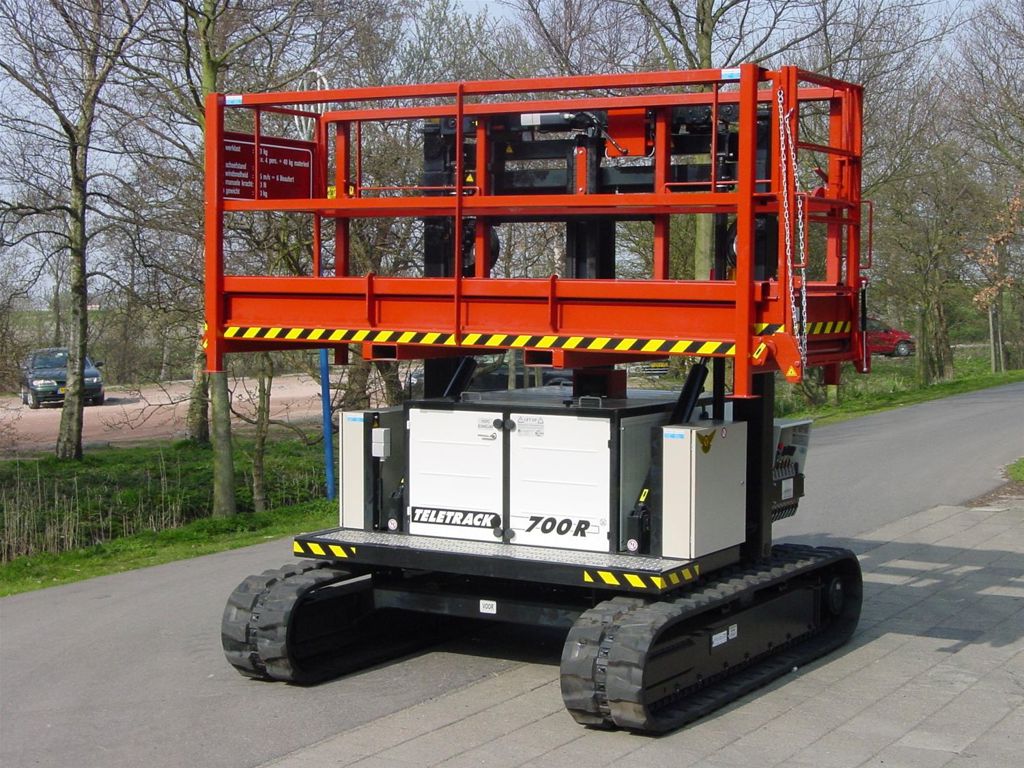

Picture of Teletrack 700R Telescope lift
Picture of Teletrack 700R Telescope lift
Picture of Teletrack 700R Telescope lift
Picture of Teletrack 700R Telescope lift
Picture of Teletrack 700R Telescope lift
Picture of Teletrack 700R Telescope lift
Picture of Teletrack 700R Telescope lift
Picture of Teletrack 700R Telescope lift
Picture of Teletrack 700R Telescope lift
+5 +4 +3

€ 88.987,60

-
+
Ask a question

Description

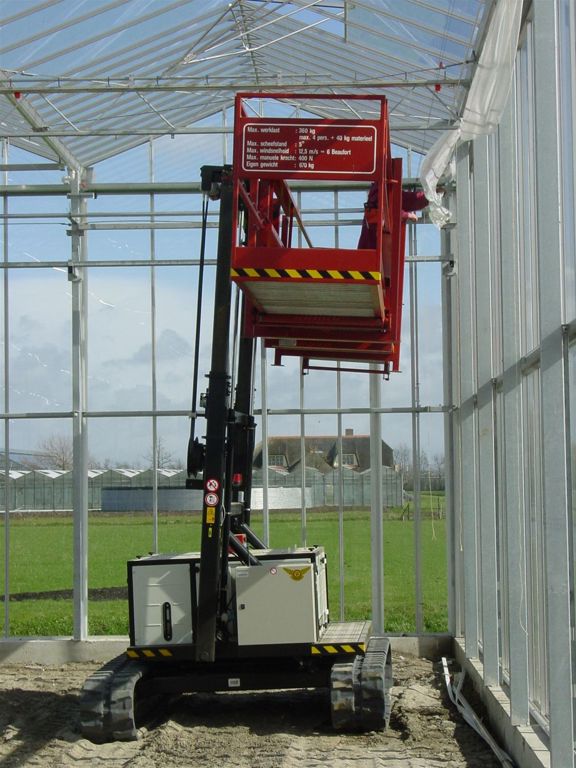

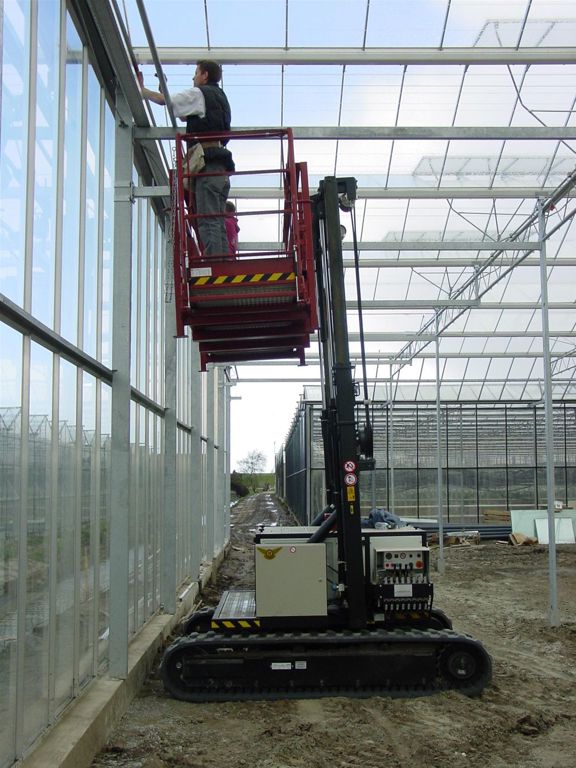

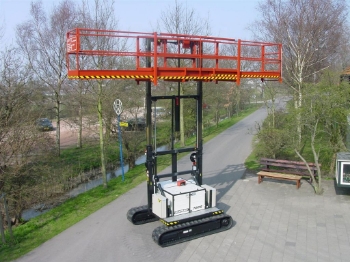

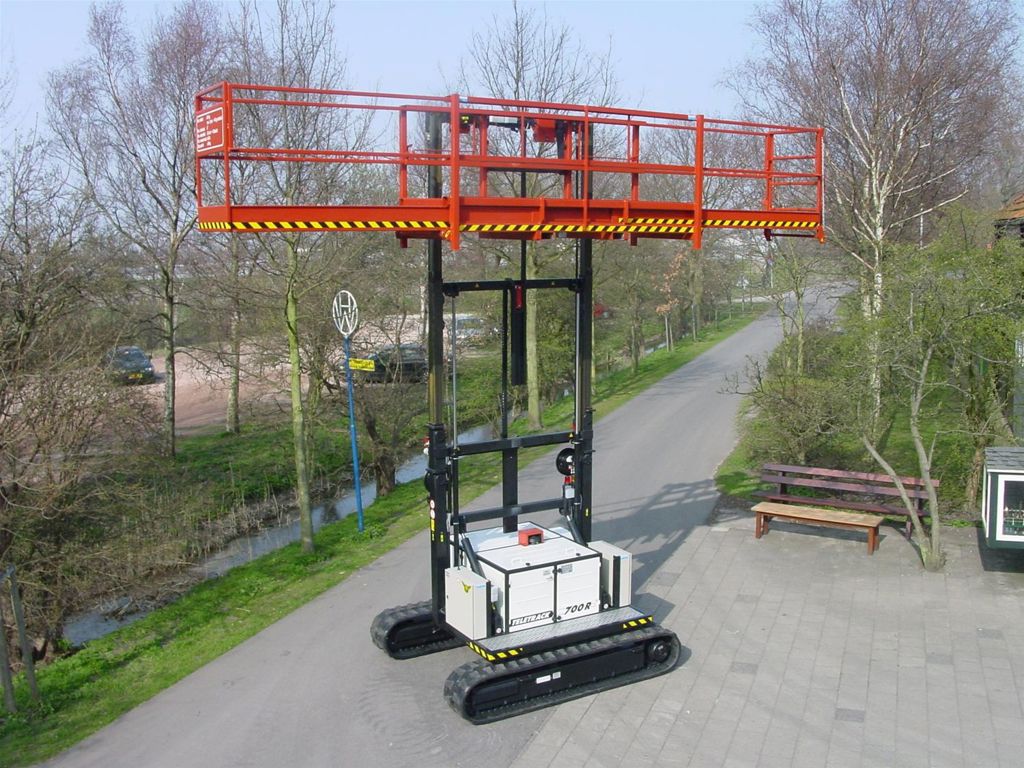

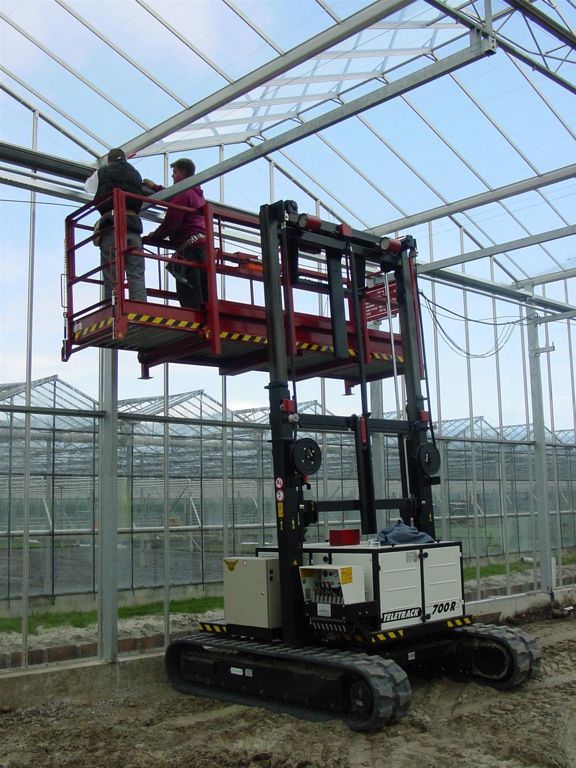

The Teletrack 700R telescope lift is a very compact and lightweight aerial work platform to construct screen installations, lighting and heating systems in horticulture greenhouses.

Both end sides of the work platform can be extended manually. The work platform can be positioned longitudinal or transverse compared to the caterpillar base.

Specifications
Attribute name Attribute value
Item-number: 0699907
Main dimensions in transport position (mm): Length: 3200
Width: 2300
Height: 2900
Working length / width work platform (mm): 3200-7000
Height of floor work platform (mm): 1800-5000
Max. working height (mm): 6800
Wheelbase (mm): 2240
Gauge (mm): 1900
Width of tracks (mm): 400
Ground clearance (mm): 325
Ground pressure tracks (gr/cm²): 275
Max. level of work platform (°): 5,0
Max. level of caterpillar base (°): 10,0
Rotation angle of work platform (°): 90
Max. driving speed (km/h): 1,8 (normal mode) / 3,4 (fast mode)
Weight (kg): 4,870
Lifting capacity of work platform (kg): 360
Diesel engine: Kubota V2203-EU1 (33kW)
Options: Mastervolt 12-2000W sine inverter
Documents: Handbook of aerial work platform
Instructions for use in Dutch
