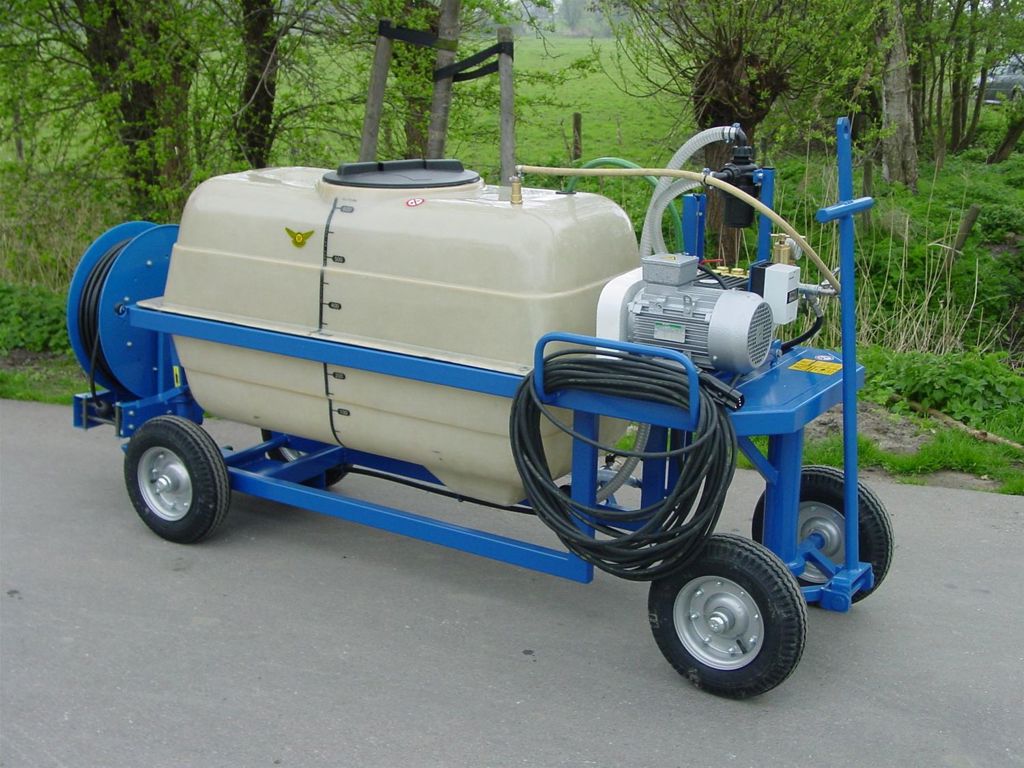

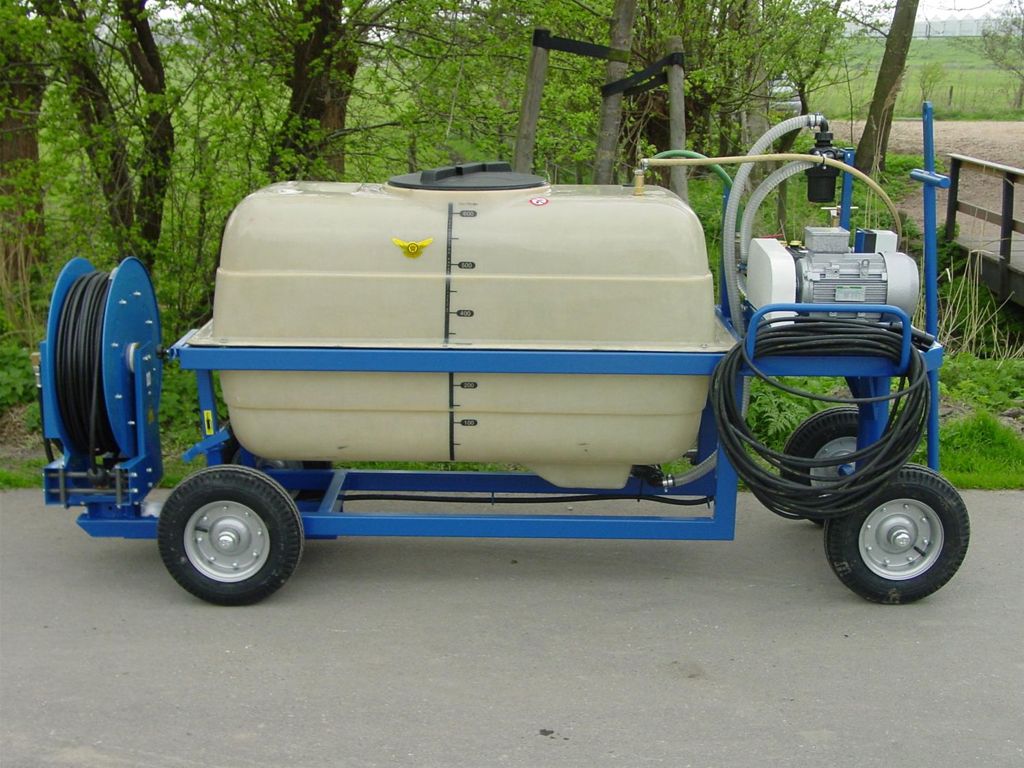

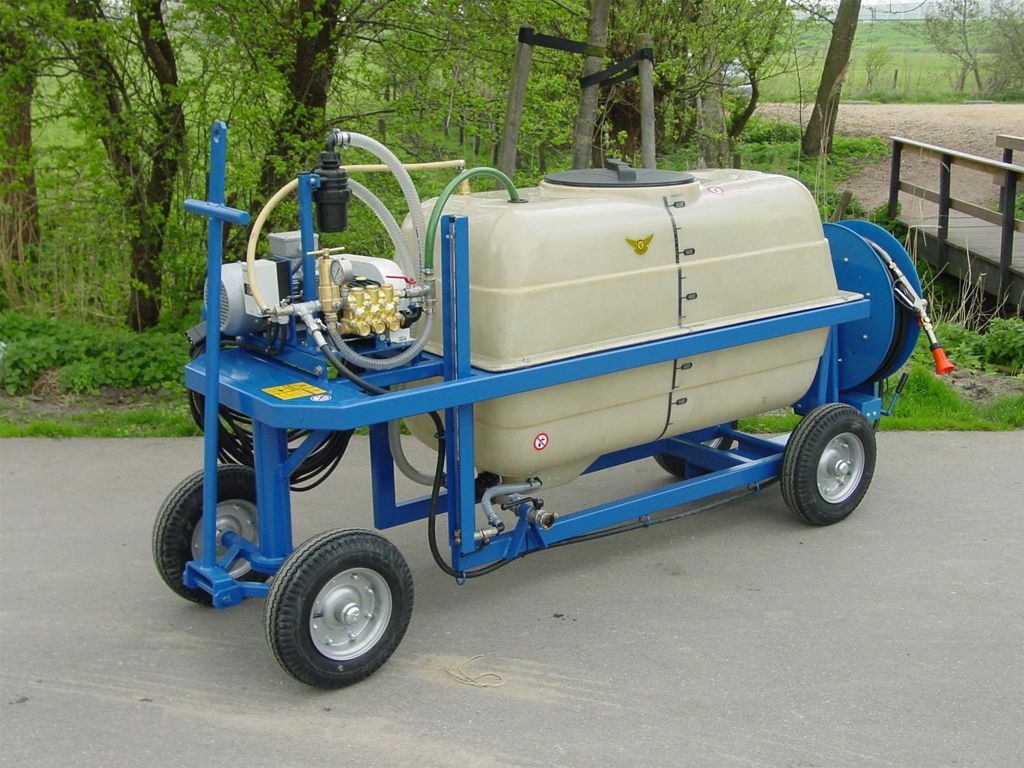

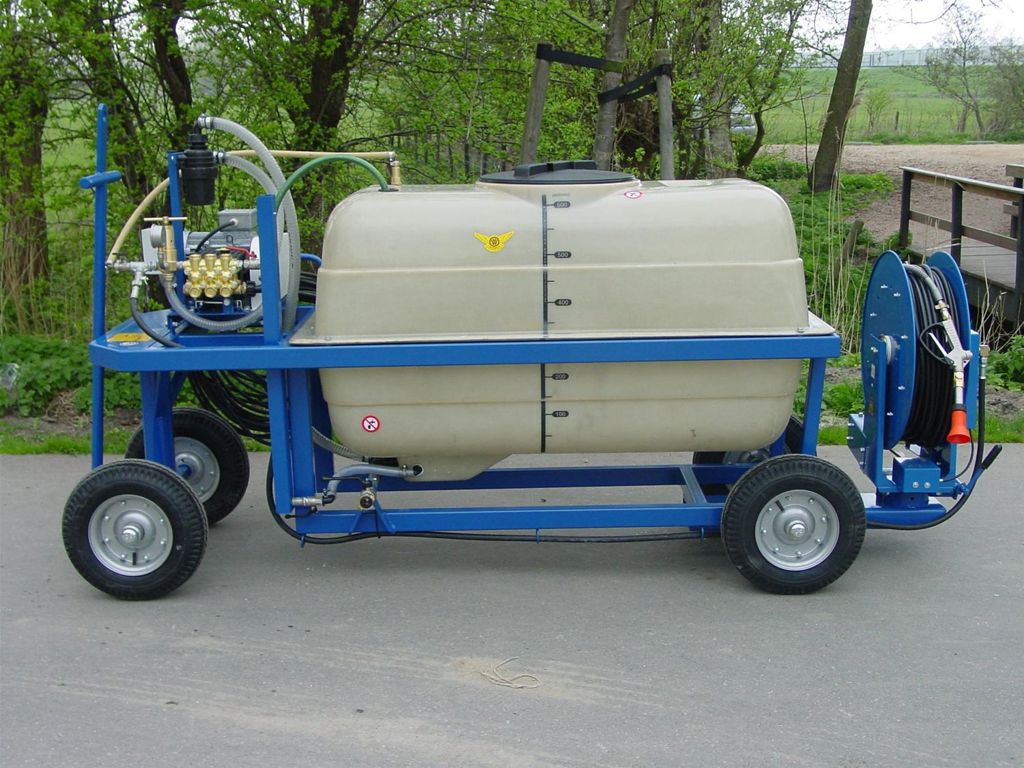

Spray Cart 600T - Plunger pump WS102 21l/min~55bar - Spring Reel Swivable

Product code: 0927580

€ 5.490,82

-
+

Description

Whether it comes to spraying of crop protection products or spray cleaning of the glass or concrete floors in greenhouses, the Weterings spraying cart is the perfect tool.

All our spraying cars are equipped with anti-swirl intake and can be filled from the bottom to avoid foaming in the tank / barrel.

This model is also provided with an rotatable spring operated reel that can be used for spraying of solvets for crop protection. The rotatable reel can be locked in three positions. This allows the hose to be rolled up always at the lowest position, so any damage to the crops will be avoided.

The WS102 electric driven plunger pump is a high quality pump with double sealed ceramic pistons for extreme durability and resistance to agressive crop protection products.

Specifications
Attribute name Attribute value
Item-number: 0927580
Main dimensions in transport position (mm): Length: 2760
Width: 850
Height: 140

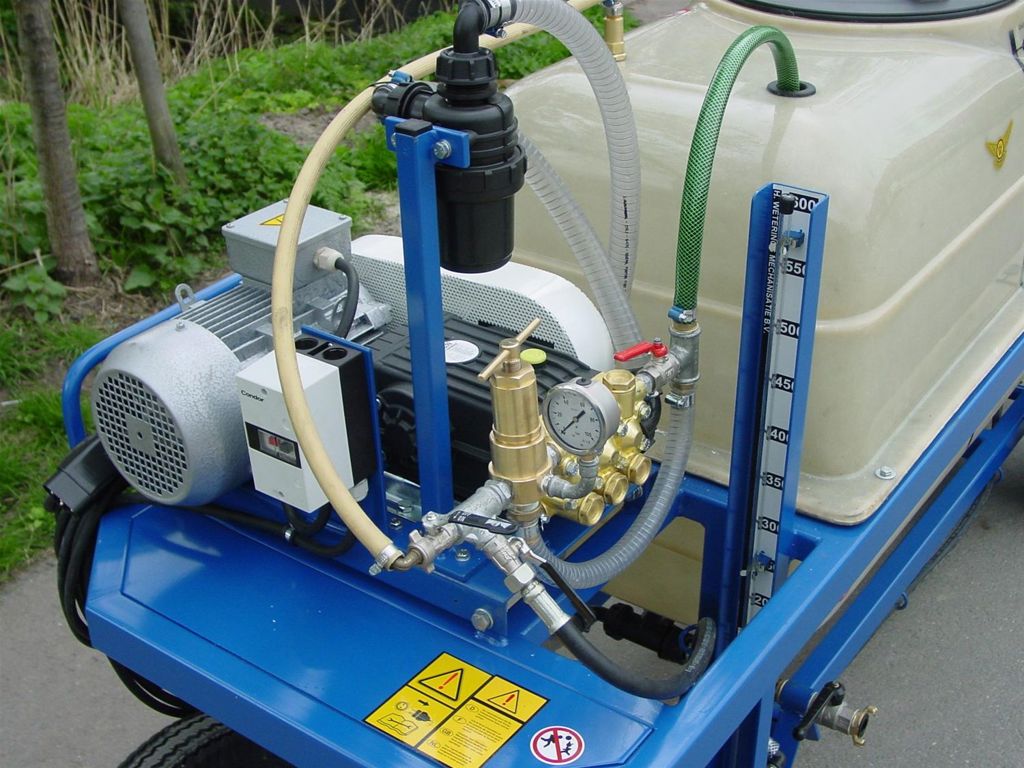

Pump unit: WS102 piston pump with 3kW electric motor and V-belt transmission
Water capacity of pump (ltr/min.): 21
Working pressure of pump (bar = kg/cm²): 55
Tank/barrel capacity (ltr.): 600
Reel: Rotatable spring operated reel
Maximum hose length on reel (mtr.): 60 (whith 3/8 hose)
Supply voltage (V), frequency (Hz): 400, 50
Tire dimensions: 400×8-4ply
Weight (kg): 250
Accessories: Power cable (10 mtr.)
Support bracket for power cable
Parking brake
Guide for power cable
Gauge
Stainless steel packing cleaner
External suction filter above liquid level
Stir injectors (1x)
Options: Spray hose on reel
Reel with wider drum
(Rotatable) hand operated reel, electric reel (WCR)
