Spray Cart 600K - Plungerpump WS102 21l/min~55bar - WCR fixed

Product code: 0927583

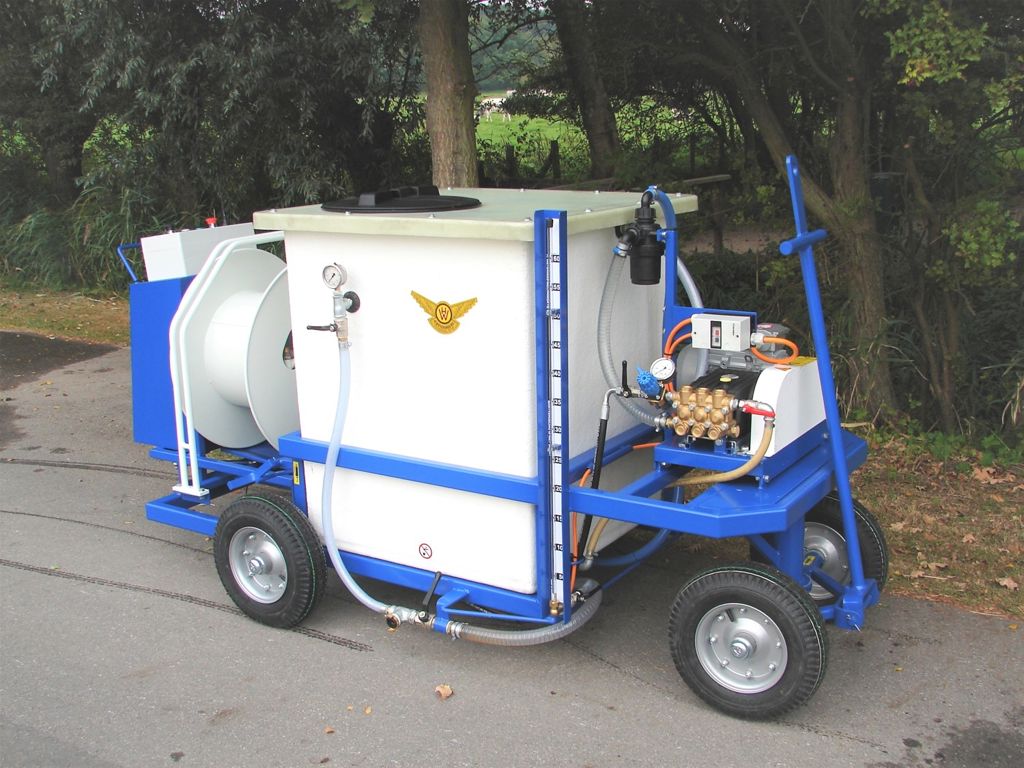

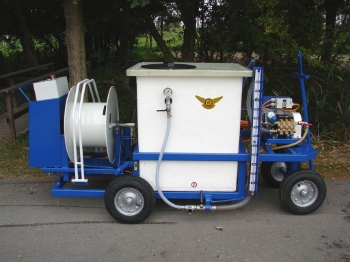

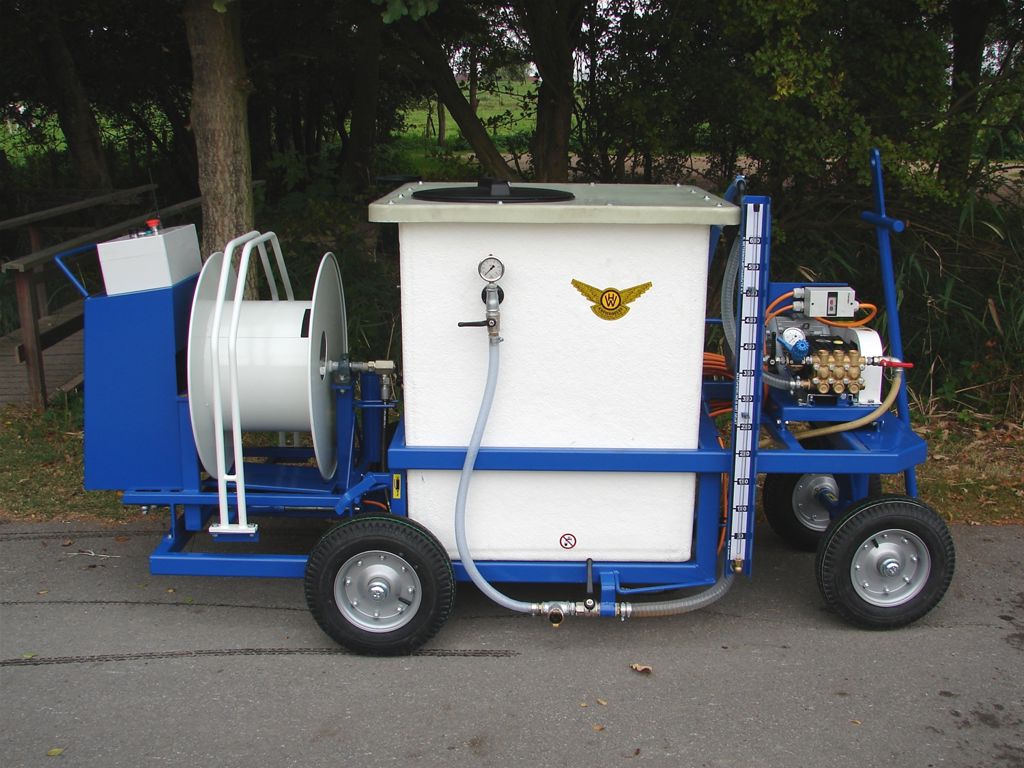

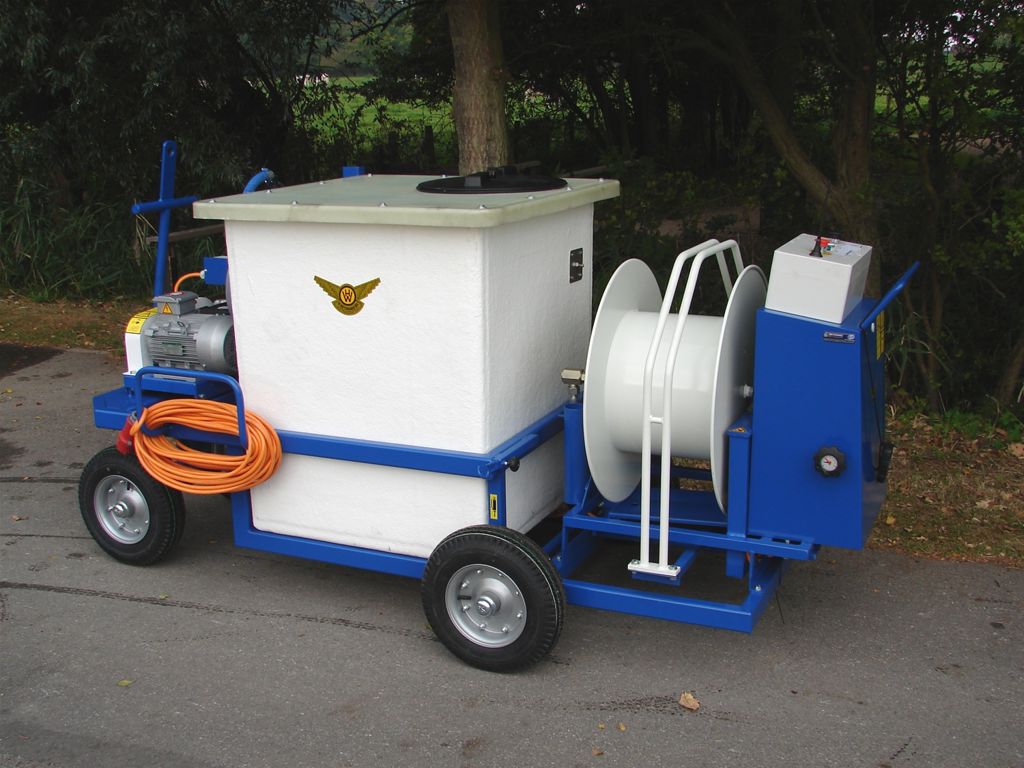

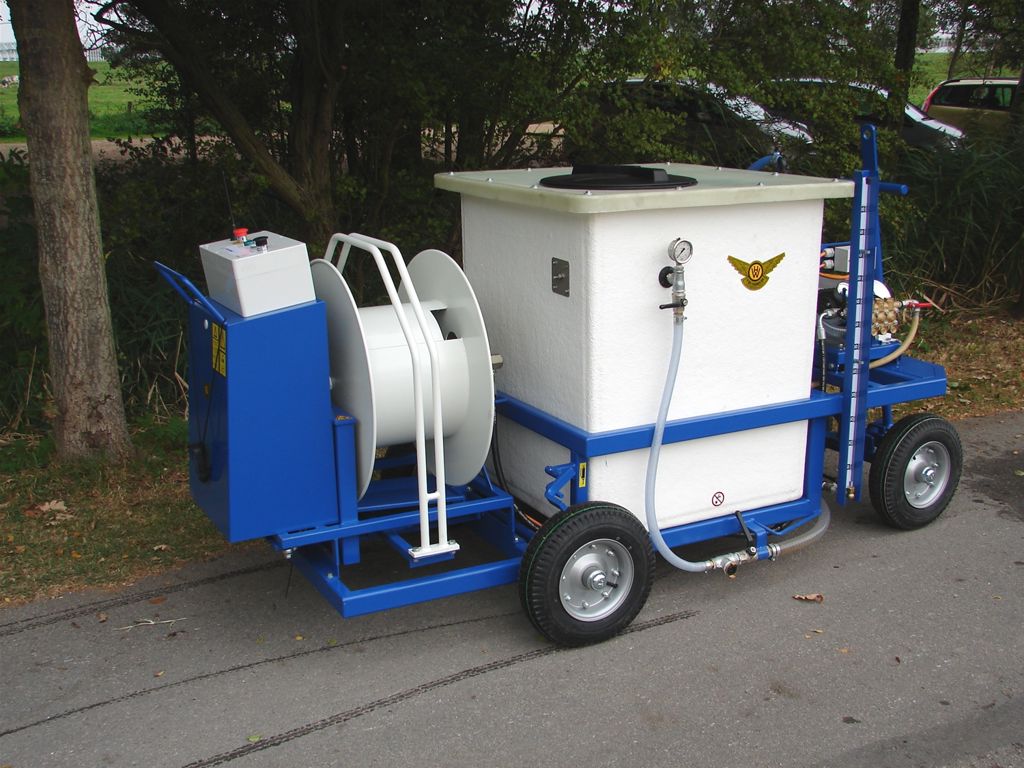

Picture of Spray Cart 600K - Plungerpump WS102 21l/min~55bar - WCR fixed

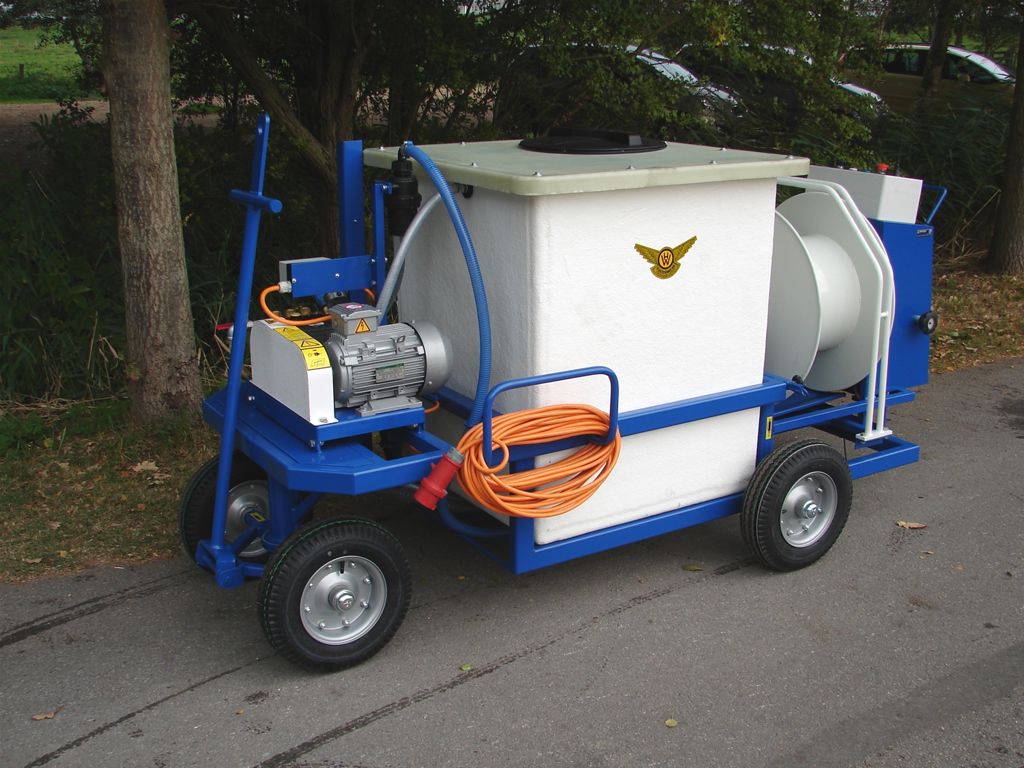

Picture of Spray Cart 600K - Plungerpump WS102 21l/min~55bar - WCR fixed
Picture of Spray Cart 600K - Plungerpump WS102 21l/min~55bar - WCR fixed
Picture of Spray Cart 600K - Plungerpump WS102 21l/min~55bar - WCR fixed
Picture of Spray Cart 600K - Plungerpump WS102 21l/min~55bar - WCR fixed
+1 +0 +-1

€ 9.747,00

-
+
Ask a question

Description

Whether it comes to spraying of crop protection products or spray cleaning of the glass or the floor, the Weterings spraying cart is the perfect tool.

This spray trolleys is equipped with an “anti-swirl” filling system and has a filling point at the bottom of the tank to prevent foaming. The cart is equipped with a an electric remote controlled reel for the spraying of plant protection products, or other solvets.

This model is also provided with an electric reel that can be used for spraying of crop protection products.

The WS102 electric driven plunger pump is a high quality pump with double sealed ceramic pistons for extreme durability and resistance to agressive crop protection products.

Specifications
Attribute name Attribute value
Item-number: 0927583
Main dimensions in transport position (mm): Length: 2660
Width: 1140
Height: 1370
Pump unit: WS102 piston pump with 3kW electric motor and V-belt transmission
Water capacity of pump (ltr/min.): 21
Working pressure of pump (bar = kg/cm²): 55
Tank/barrel capacity (ltr.): 600
Reel: Electric (WCR)
Provided with an electric motor 0,55 kW
Automatic hose guide
Remote control (range 150 mtr.)
Adjustable roll up speed (0-55 mtr/min.)
Maximum hose length on reel (mtr.): 150 (with 1/2” hose)
Supply voltage (V), frequency (Hz): 400, 50
Tire dimensions: 400×8-4ply
Weight (kg): 350
Accessories: Power cable (10 mtr.)
Support bracket for power cable
Parking brake
Guide for power cable
Gauge
External suction filter above liquid level
Stir injector
Options: Spray hose on reel
Reel with wider drum
Rotating electric reel
