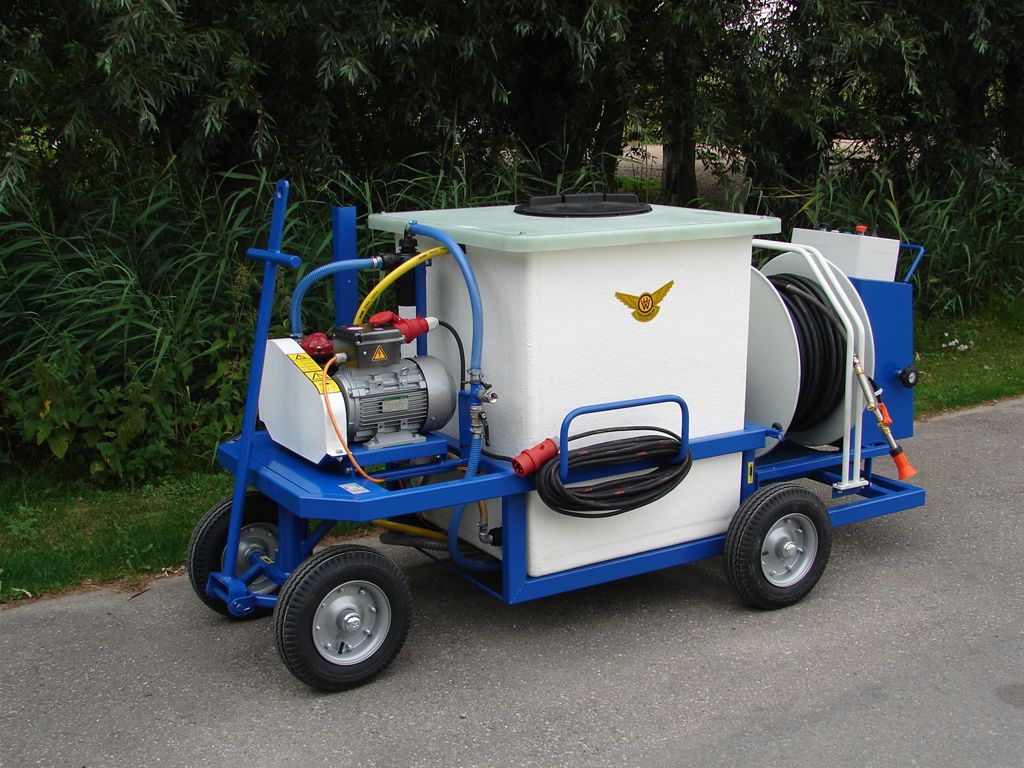

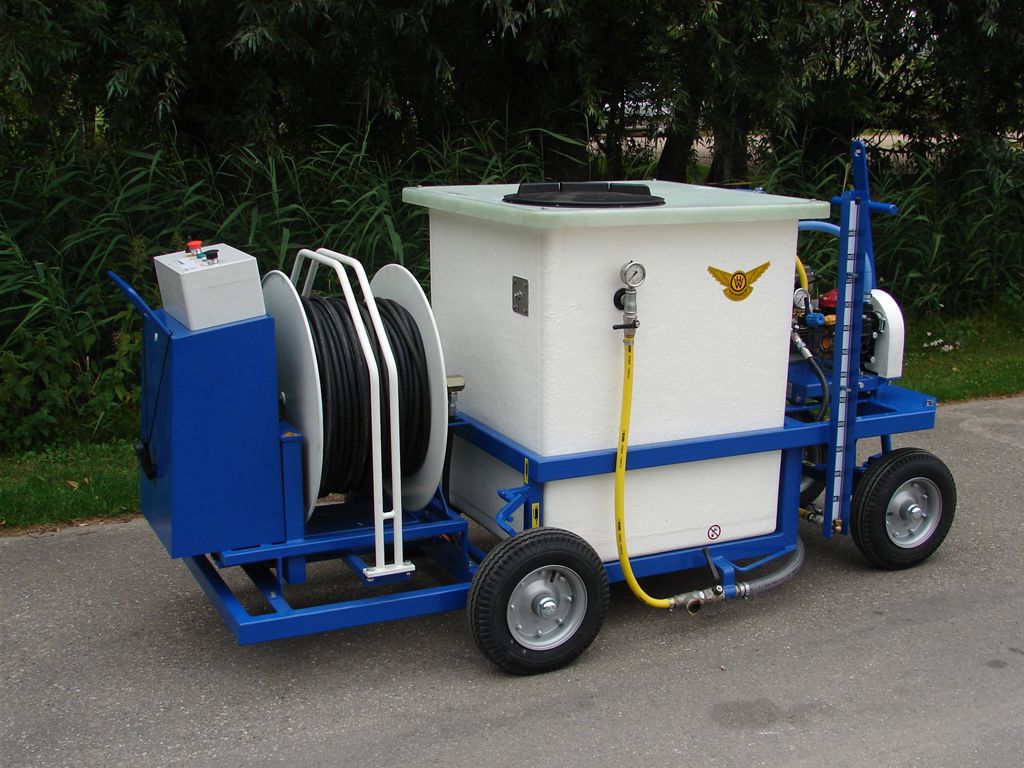

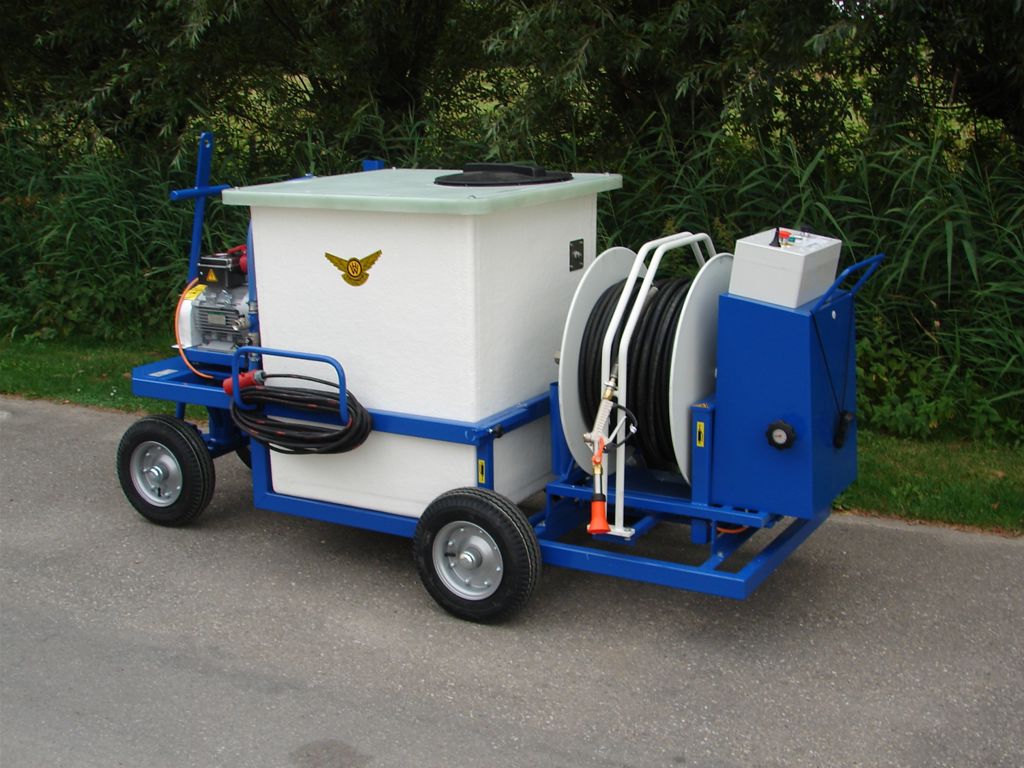

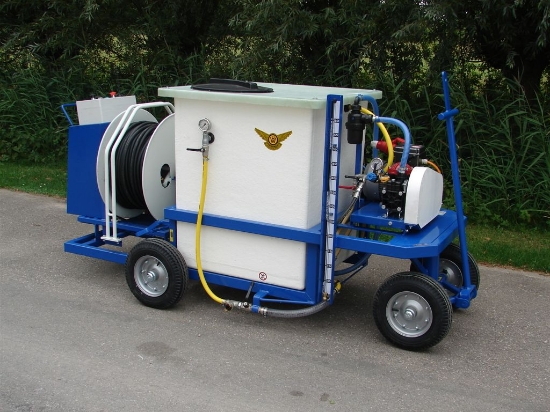

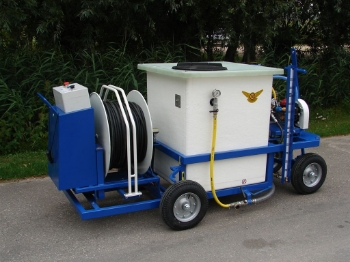

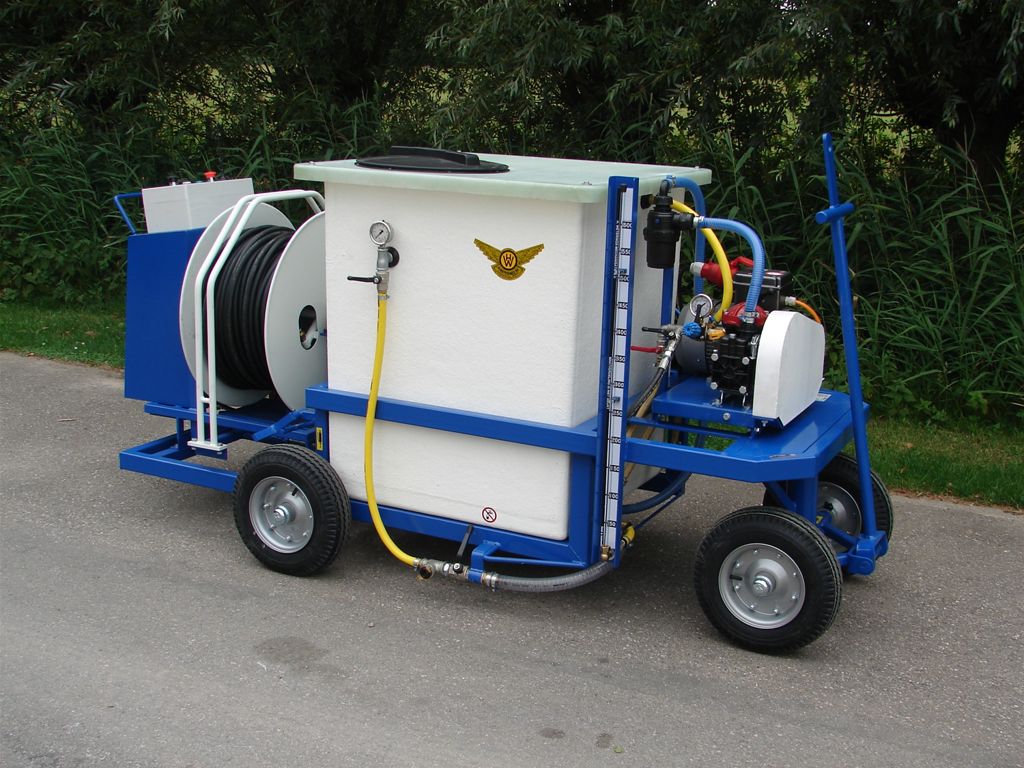

Spray Cart 600K - Plungerpump AR30 31l/min~40bar - WCR fixed

Product code: 0924208
Picture of Spray Cart 600K - Plungerpump AR30 31l/min~40bar - WCR fixed
Picture of Spray Cart 600K - Plungerpump AR30 31l/min~40bar - WCR fixed
Picture of Spray Cart 600K - Plungerpump AR30 31l/min~40bar - WCR fixed
Picture of Spray Cart 600K - Plungerpump AR30 31l/min~40bar - WCR fixed
Picture of Spray Cart 600K - Plungerpump AR30 31l/min~40bar - WCR fixed
+1 +0 +-1

€ 13.525,00

-
+
Ask a question

Description

Whether it comes to spraying of crop protection products or spray cleaning of the glass or concrete floors in greenhouses, the Weterings spraying cart is the perfect tool.

This spray trolley is equipped with an “anti-swirl” filling system and has a filling point at the bottom of the tank to prevent foaming. The cart is equipped with a an electric remote controlled reel for the spraying of plant protection products, or other solvets.

This model is also provided with an electric reel that can be used for spraying of crop protection products.

Specifications
Attribute name Attribute value
Item-number: 0924208
Main dimensions in transport position (mm): Length: 2620
Width: 1140
Height: 1380

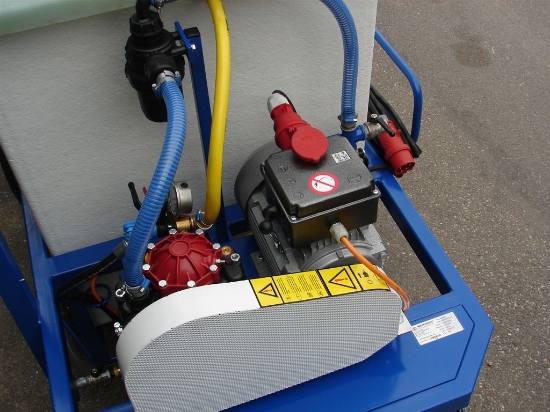

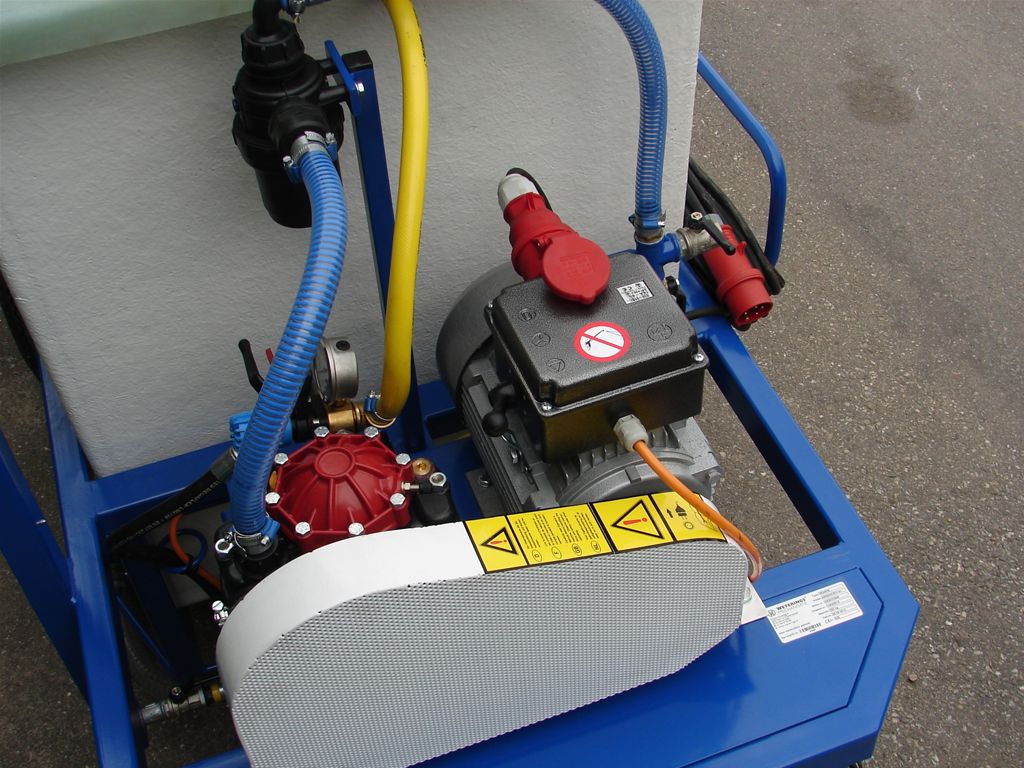

Pump unit: AR30 membrane pump with 4kW electric motor and V-belt transmission
Water capacity of pump (ltr/min.): 31
Working pressure of pump (bar = kg/cm²): 40
Tank/barrel capacity (ltr.): 600
Reel: Electric (WCR)
Provided with an electric motor 0,55 kW
Automatic hose guide
Remote control (range 150 mtr.)
Adjustable roll up speed (0-55 mtr/min.)
Maximum hose length on reel (mtr.): 150 (with 1/2” hose)
Supply voltage (V), frequency (Hz): 400, 50
Tire dimensions: 400×8-4ply
Weight (kg): 350
Accessories: Power cable (10 mtr.)
Support bracket for power cable
Parking brake
Guide for power cable
Gauge
Stainless steel packing cleaner
External suction filter above liquid level
Stir injectors (2x)
Options: Spray hose on reel
Reel with wider drum
Rotatable electric reel
