Spray Cart 300T - Plunger Pomp PM33 19l/min~50bar - Hand Reel 450mm (Swivable)

Product code: 0925051
Picture of Spray Cart 300T - Plunger Pomp PM33 19l/min~50bar - Hand Reel 450mm (Swivable)
Picture of Spray Cart 300T - Plunger Pomp PM33 19l/min~50bar - Hand Reel 450mm (Swivable)
Picture of Spray Cart 300T - Plunger Pomp PM33 19l/min~50bar - Hand Reel 450mm (Swivable)
Picture of Spray Cart 300T - Plunger Pomp PM33 19l/min~50bar - Hand Reel 450mm (Swivable)
Picture of Spray Cart 300T - Plunger Pomp PM33 19l/min~50bar - Hand Reel 450mm (Swivable)
Picture of Spray Cart 300T - Plunger Pomp PM33 19l/min~50bar - Hand Reel 450mm (Swivable)
Picture of Spray Cart 300T - Plunger Pomp PM33 19l/min~50bar - Hand Reel 450mm (Swivable)
Picture of Spray Cart 300T - Plunger Pomp PM33 19l/min~50bar - Hand Reel 450mm (Swivable)
Picture of Spray Cart 300T - Plunger Pomp PM33 19l/min~50bar - Hand Reel 450mm (Swivable)
Picture of Spray Cart 300T - Plunger Pomp PM33 19l/min~50bar - Hand Reel 450mm (Swivable)
Picture of Spray Cart 300T - Plunger Pomp PM33 19l/min~50bar - Hand Reel 450mm (Swivable)
Picture of Spray Cart 300T - Plunger Pomp PM33 19l/min~50bar - Hand Reel 450mm (Swivable)
Picture of Spray Cart 300T - Plunger Pomp PM33 19l/min~50bar - Hand Reel 450mm (Swivable)
Picture of Spray Cart 300T - Plunger Pomp PM33 19l/min~50bar - Hand Reel 450mm (Swivable)
Picture of Spray Cart 300T - Plunger Pomp PM33 19l/min~50bar - Hand Reel 450mm (Swivable)
+11 +10 +9

€ 6.623,00

-
+
Ask a question

Description

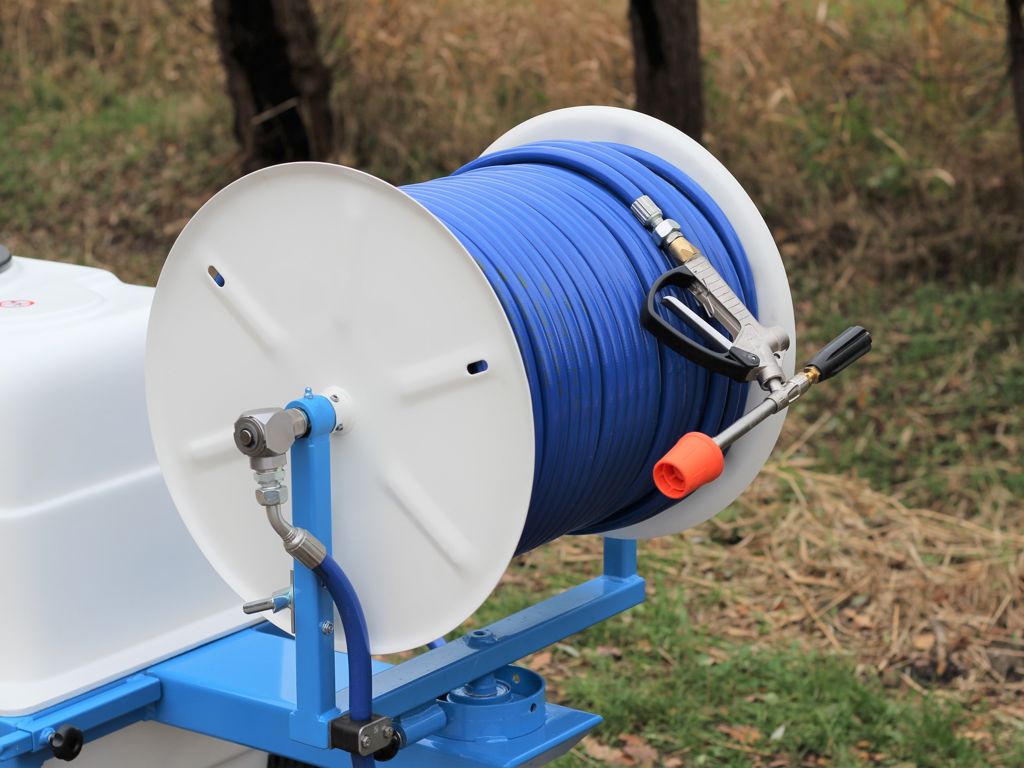

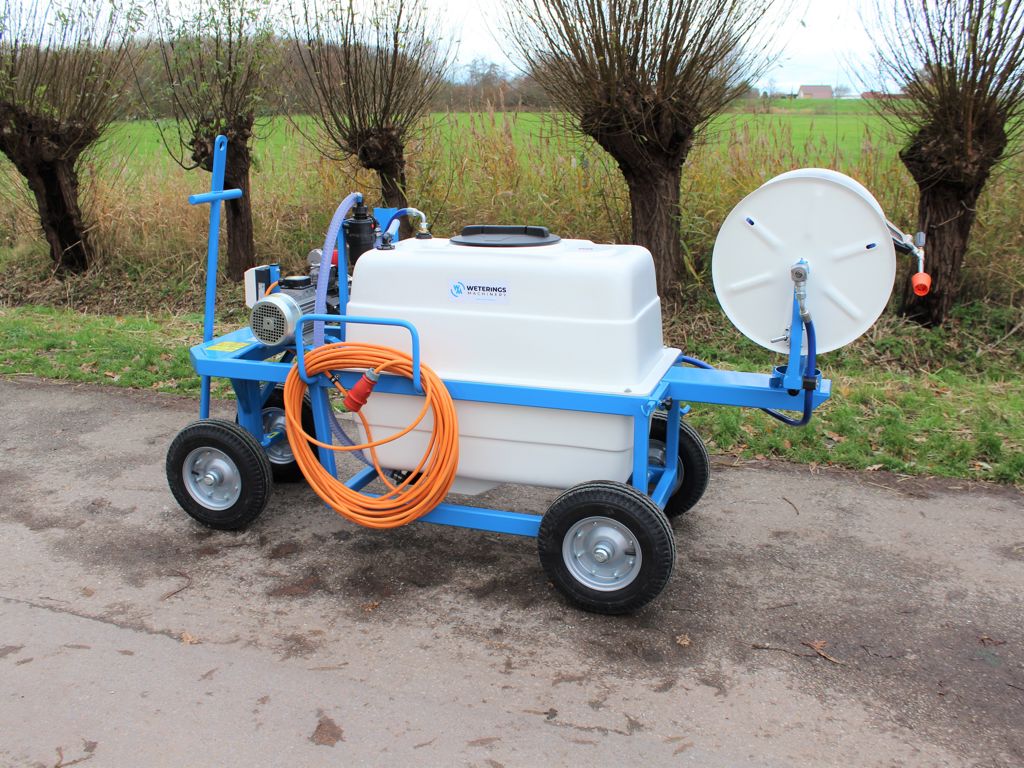

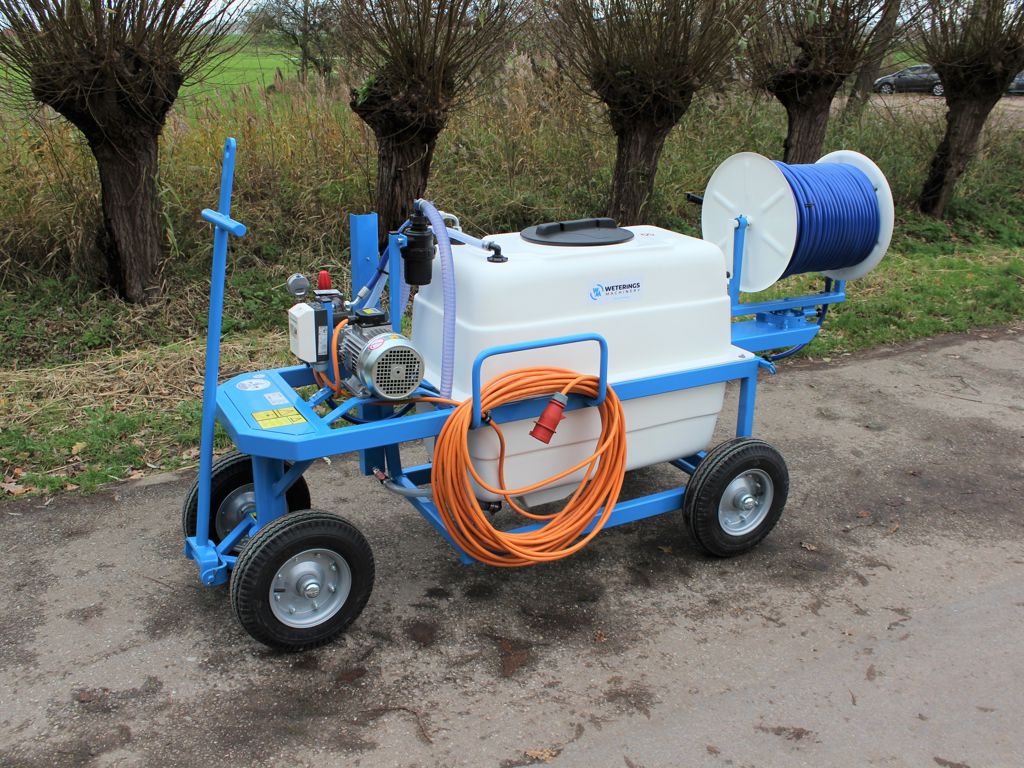

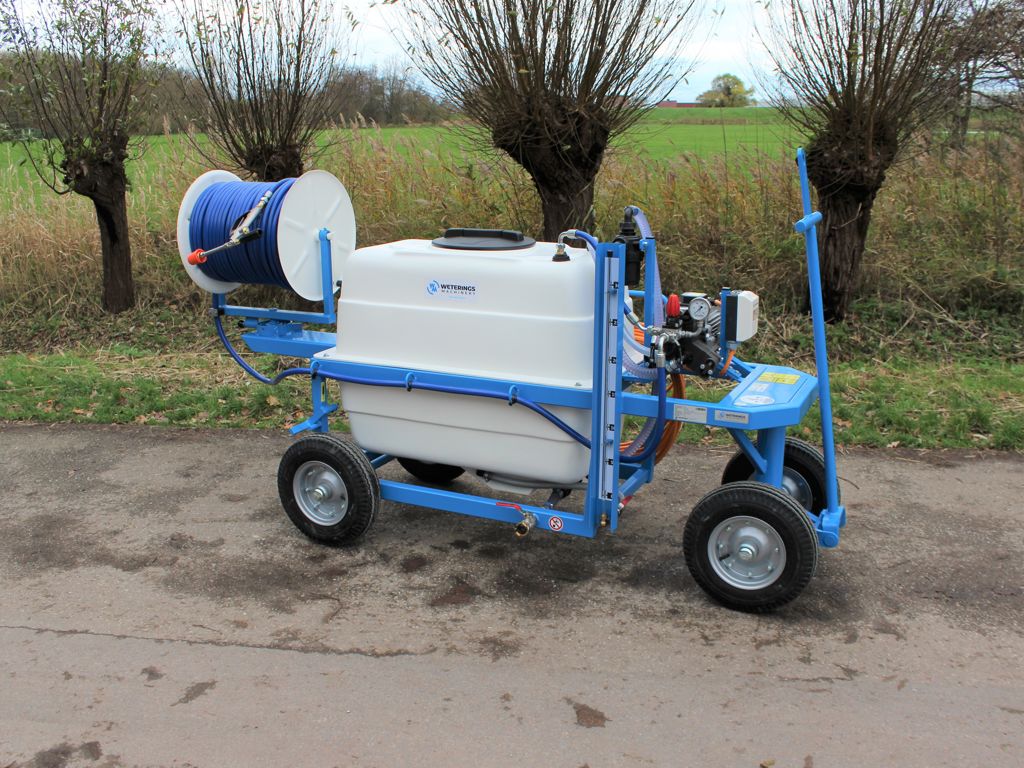

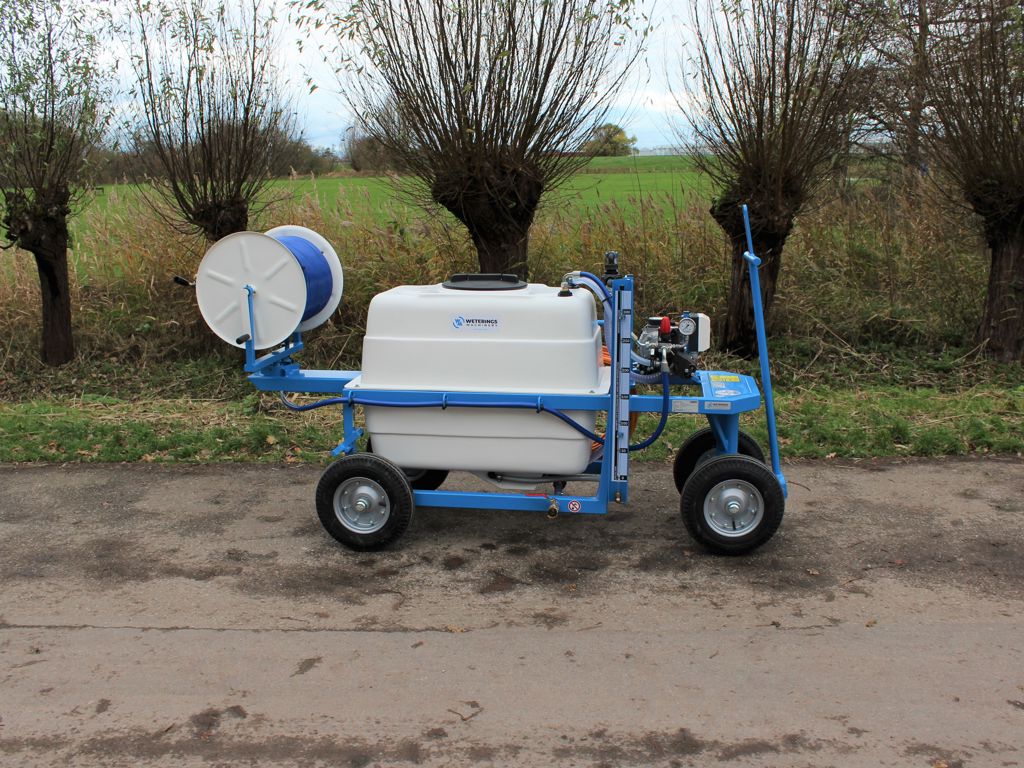

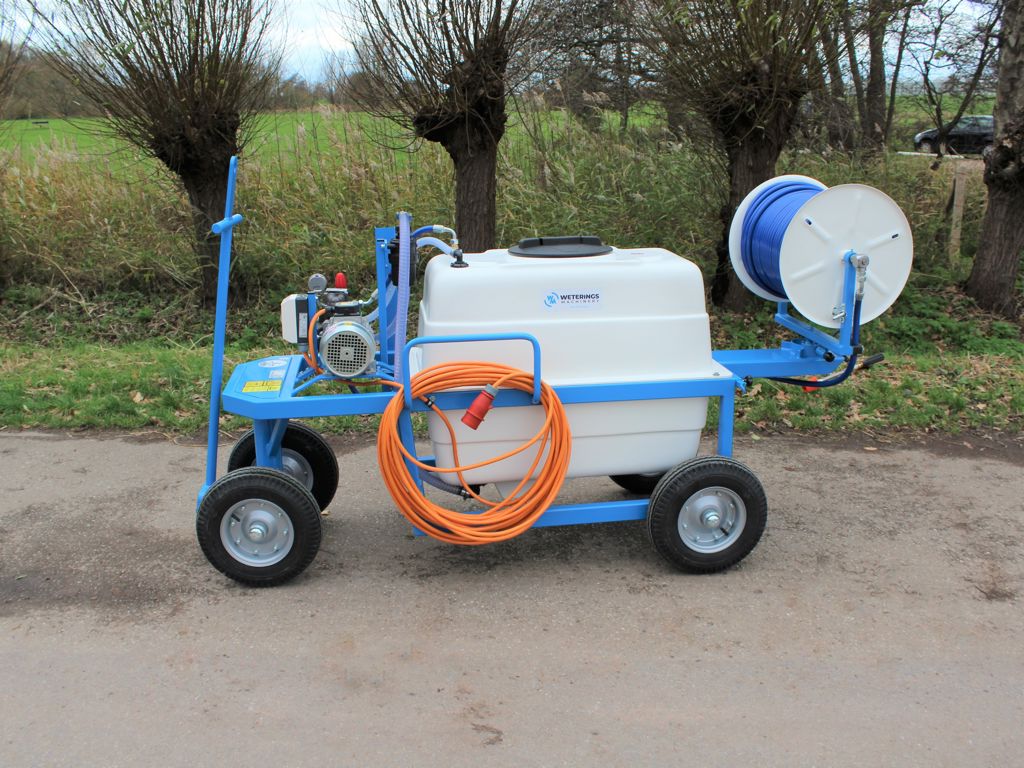

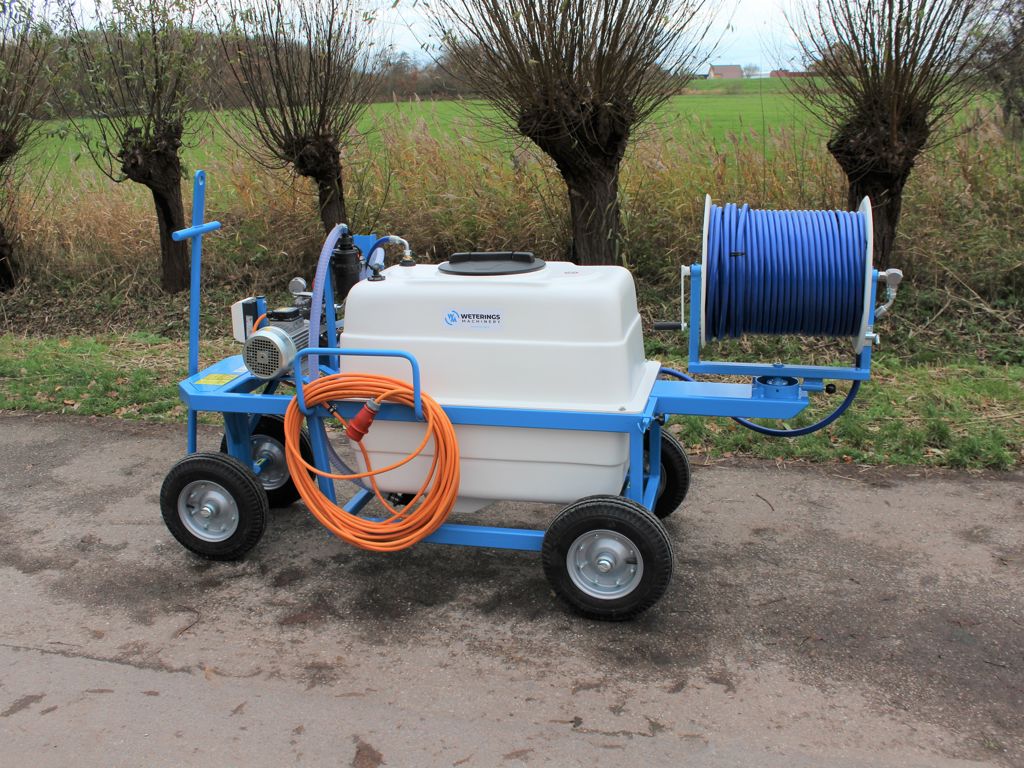

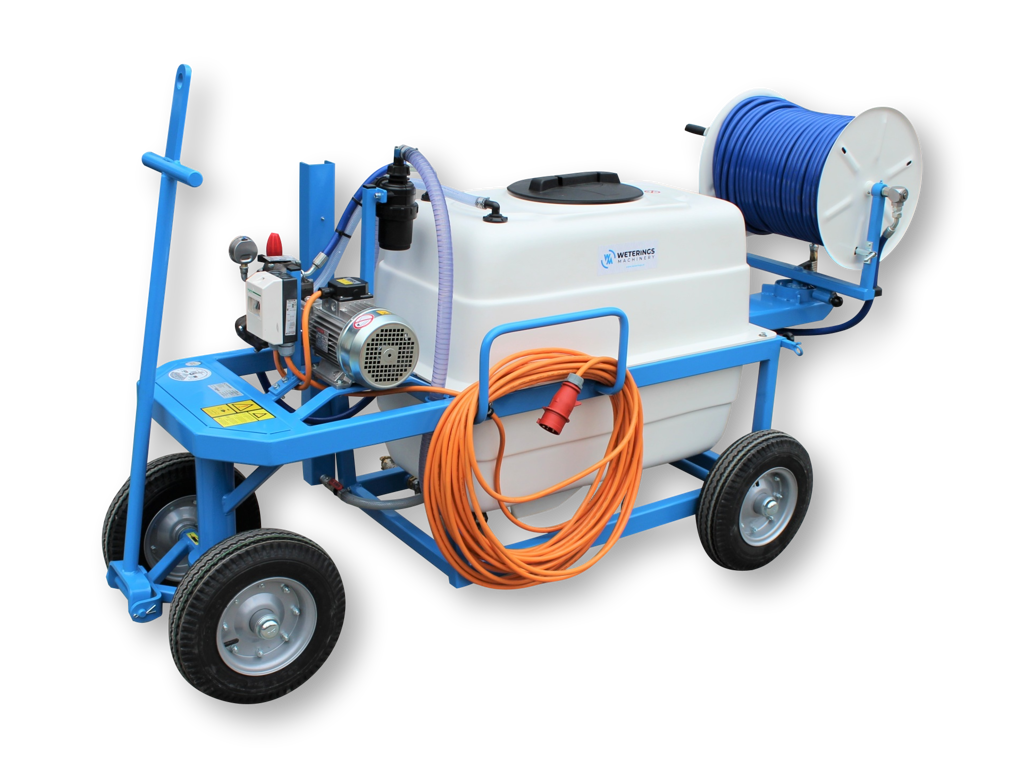

This spray trolley is equipped with a 300 liters polyester tank, with a directly coupled Imovilli PM33 pump. The spray cart is equipped a 450mm manually operated hose reel.

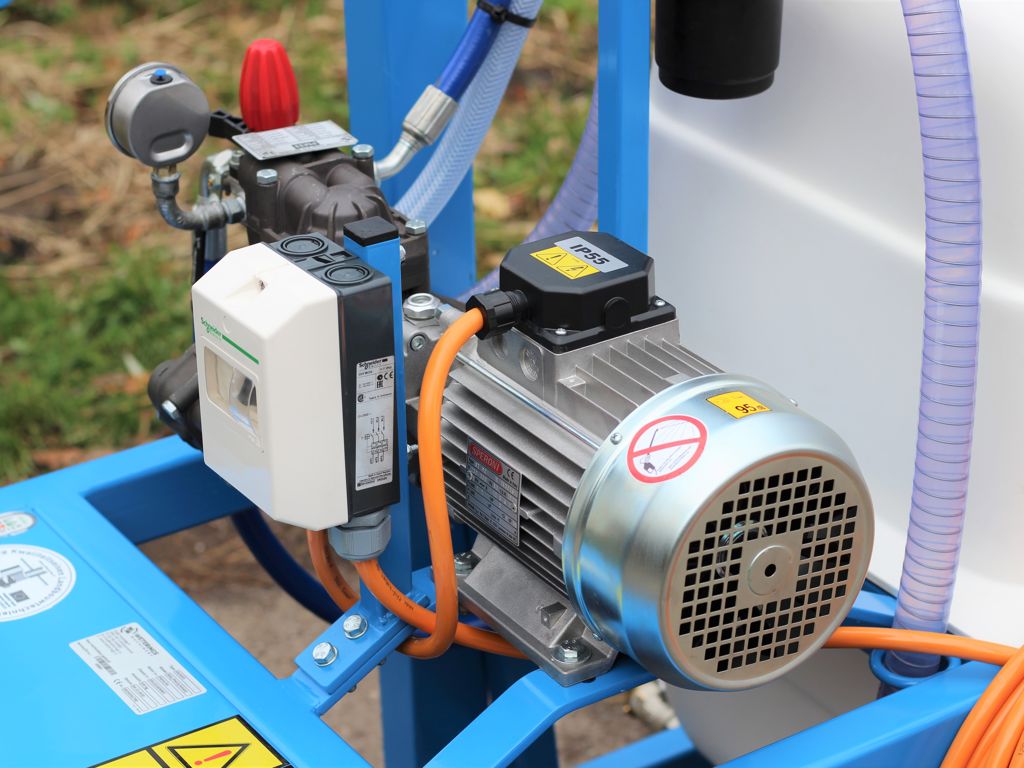

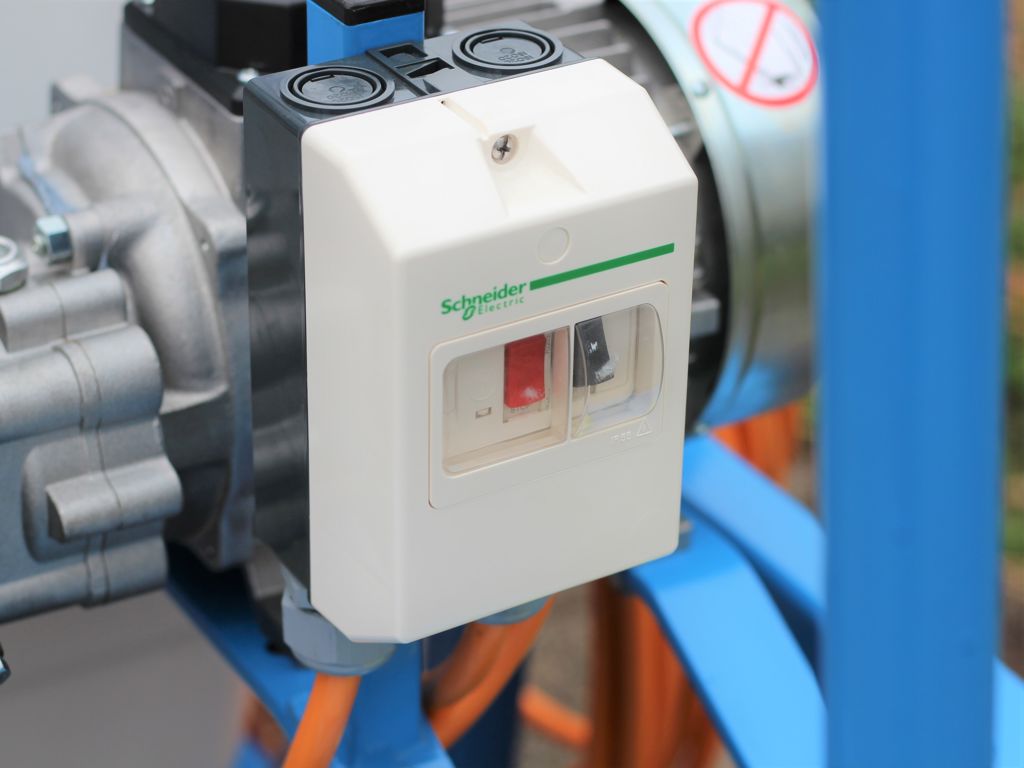

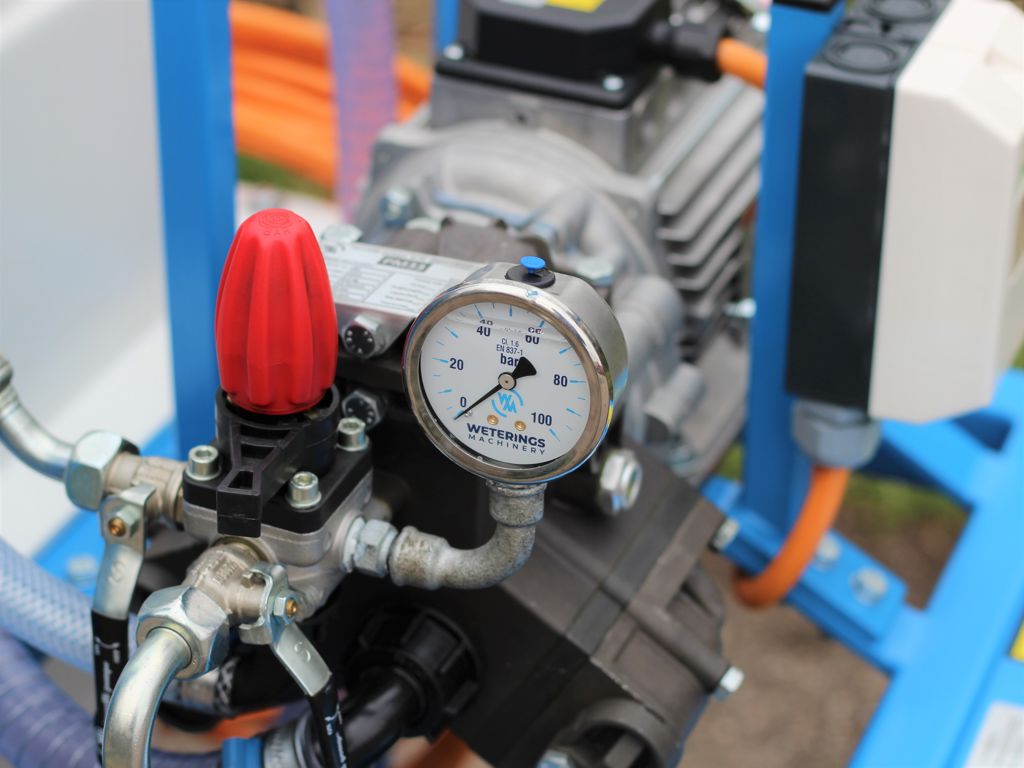

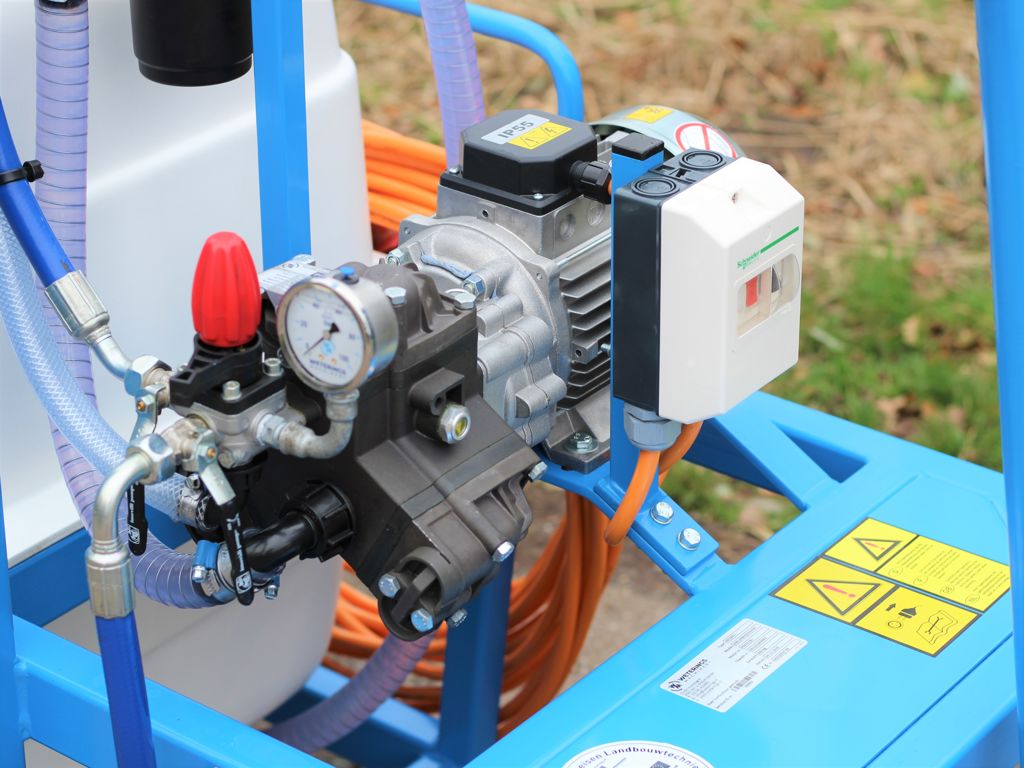

The Imovilli PM33 piston pumps are mainly used for pumping weed control agents and light plant protection agents. This pumps is electrically powered and available for different voltages. The 400V pump motors is equipped star-delta switch. The pump is driven by a maintenance-free direct gear transmission. The PM33 is a piston pump with 3 ceramic pistons valves and seats of stainless steel.

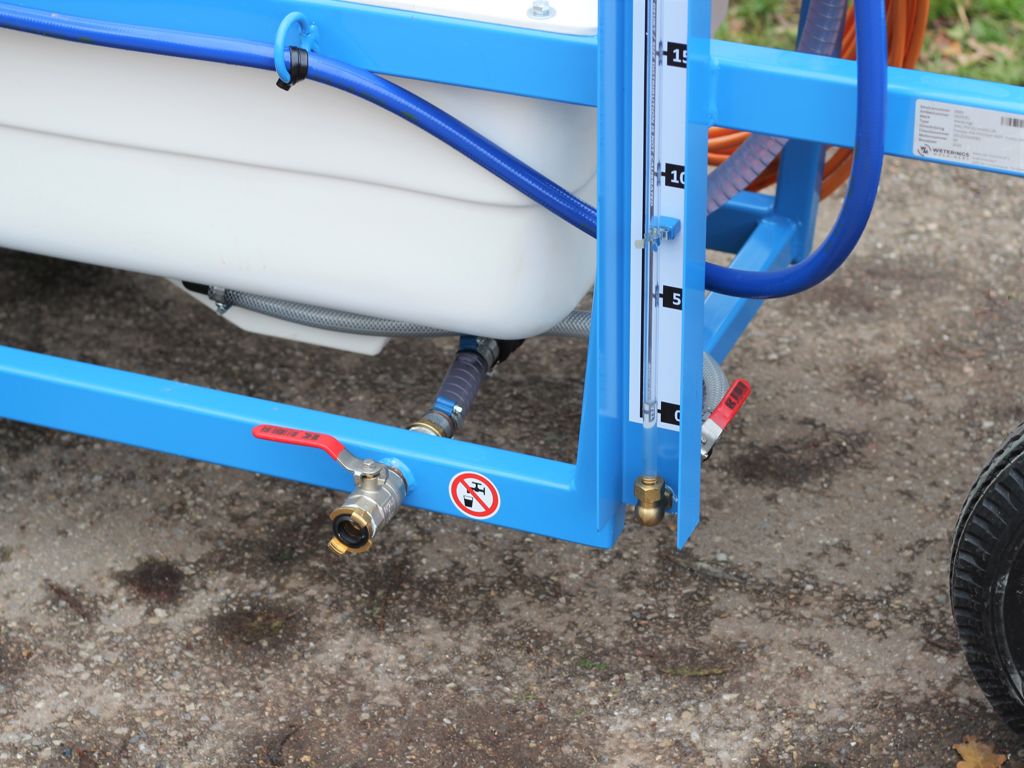

This trolley is equipped with anti-clog inlet, rudder injector, gauge glass, parking brake, cable bracket, cord guidance and external suction filter above liquid level. The tank is filled from below to prevent foaming in the tank.

Weterings spray trolleys are provided with an SKL certificate.

Specifications
Attribute name Attribute value
Item-number: 925051
Main dimensions in transport position (mm): Length: 2564
Width: 871
Height: 1407
Pump unit: PM33 piston / membrane pump with 2,2kW electric motor directly coupled
Pump capacity (ltr/min.): 19
Pump working pressure (bar = kg/cm²): 50
Supply voltage (V), frequency (Hz): 400V, 50Hz
Tank/barrel capacity (ltr.): 300

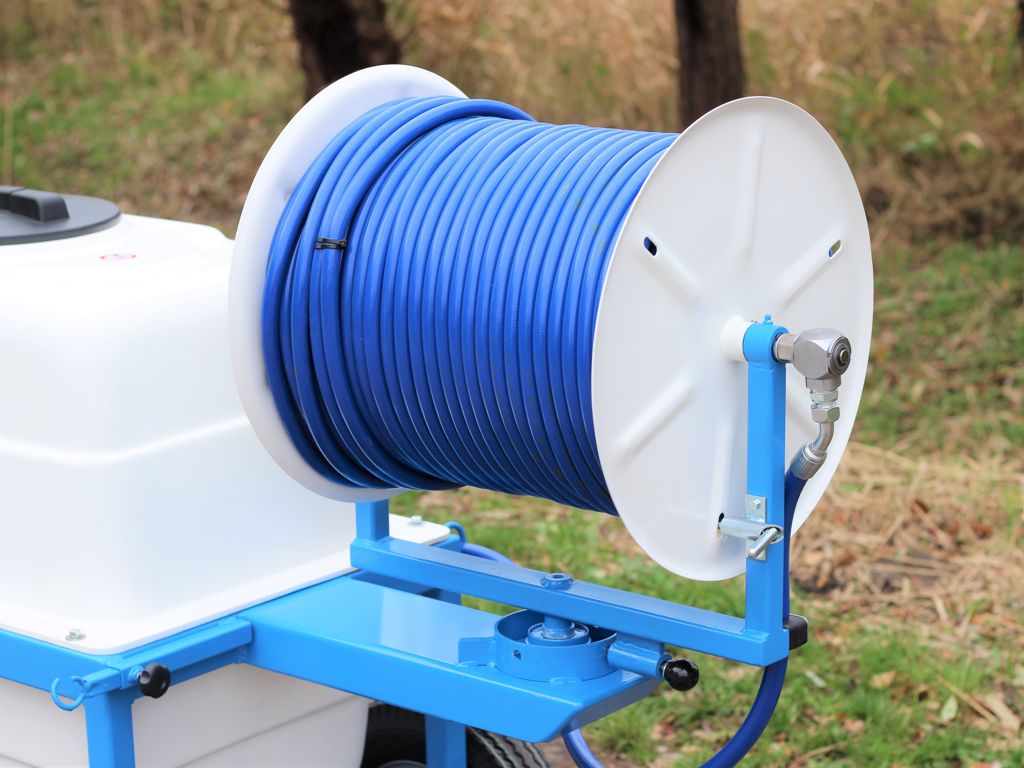

Reel: Manual reel 450mm

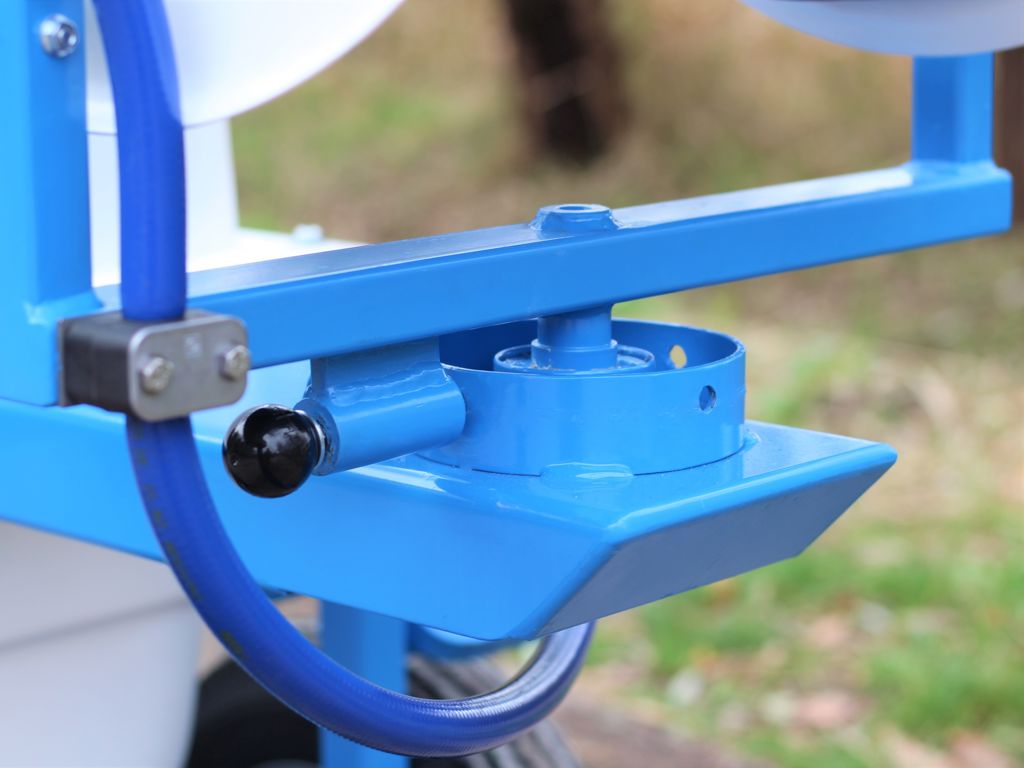

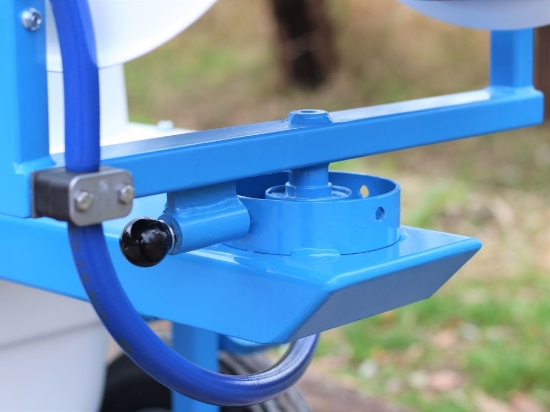

Swiveling reel, adjustable in 3 positions
Maximum hose length on reel (mtr.): 163 (with 3/8" Ø 14,6mm)
114 (with1/2" Ø18,5mm)
118 (with 3/8" Ø 19mm)
83 (with 3/8" Ø 22mm)
Tire dimensions: 400×8-4ply
Weight (kg): 195
Accessories: Power cable (10 mtr.)
Support bracket for power cable
Parking brake
Guide for power cable
Gauge
External suction filter above liquid level
Stir injectors (1x)
Options: Various spray hoses on reel
Hose reel with wider drum
Fixed or moveable electric reel
300 mm or 400 mm hand reel; fixed or rotatable
Stainless steel packing cleaner
Extra length power cord
