Spray Cart 1000T - Plunger Pump P63 42l/min~50bar - Hand reel 450mm

Product code: 0925005
Picture of Spray Cart 1000T - Plunger Pump P63 42l/min~50bar - Hand reel 450mm
Picture of Spray Cart 1000T - Plunger Pump P63 42l/min~50bar - Hand reel 450mm
Picture of Spray Cart 1000T - Plunger Pump P63 42l/min~50bar - Hand reel 450mm
Picture of Spray Cart 1000T - Plunger Pump P63 42l/min~50bar - Hand reel 450mm
Picture of Spray Cart 1000T - Plunger Pump P63 42l/min~50bar - Hand reel 450mm
+1 +0 +-1

€ 6.477,00

-
+
Ask a question

Description

Whether it comes to spraying of crop protection products or spray cleaning of the glass or concrete floors in greenhouses, the Weterings spraying cart is the perfect tool.

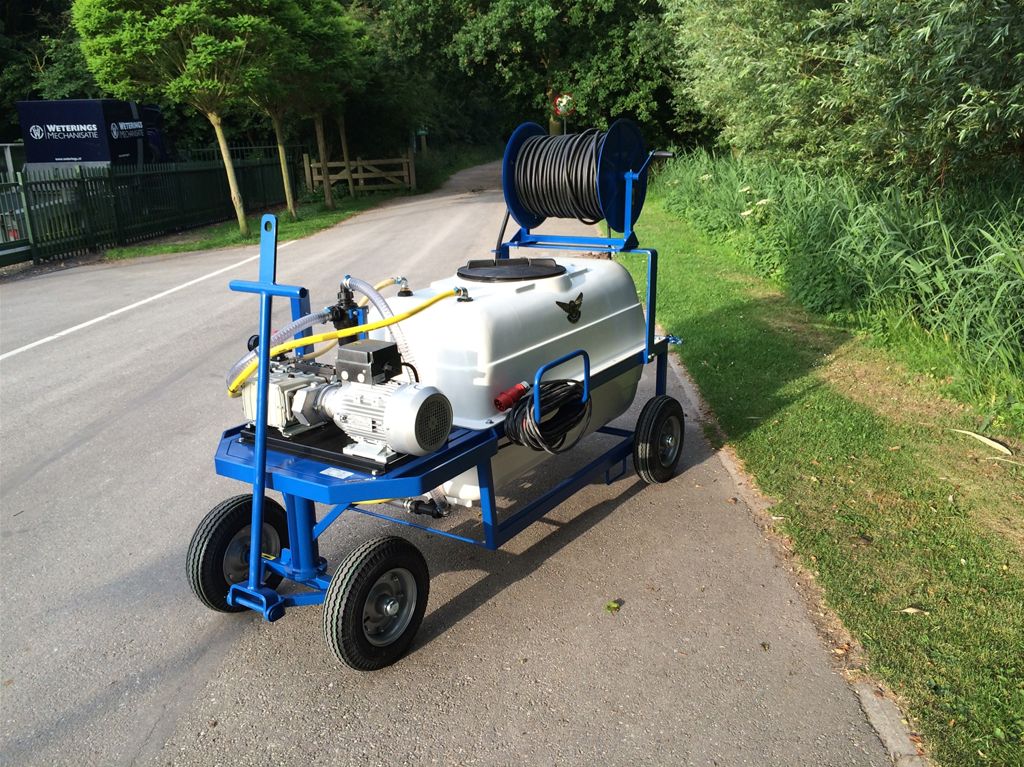

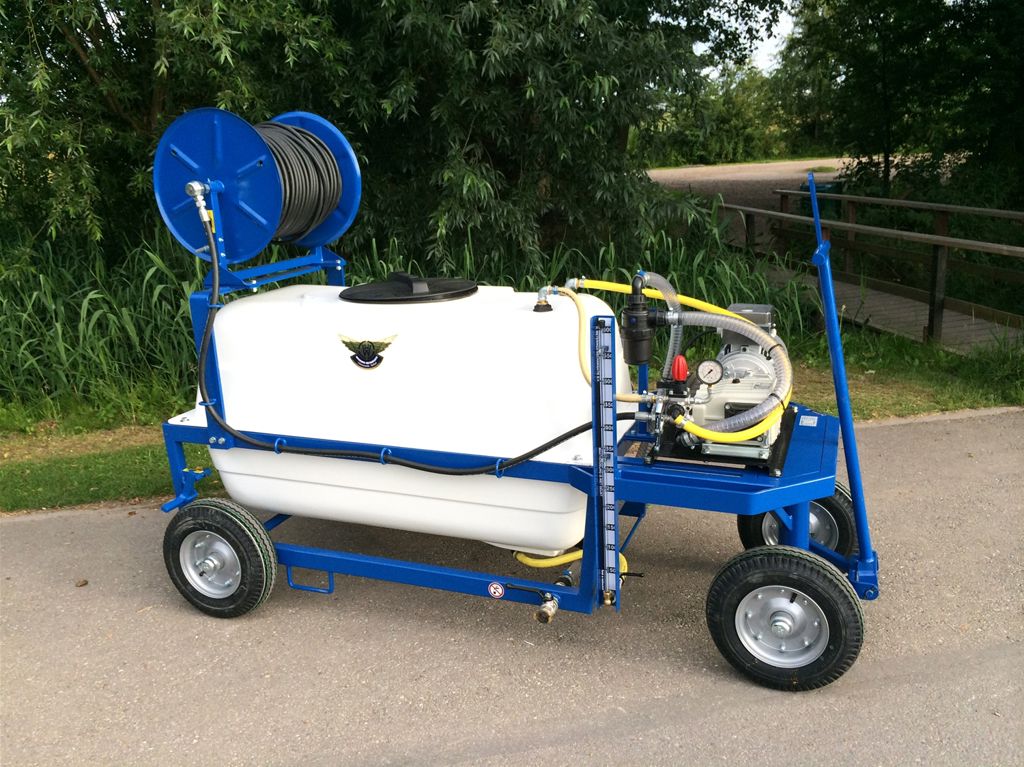

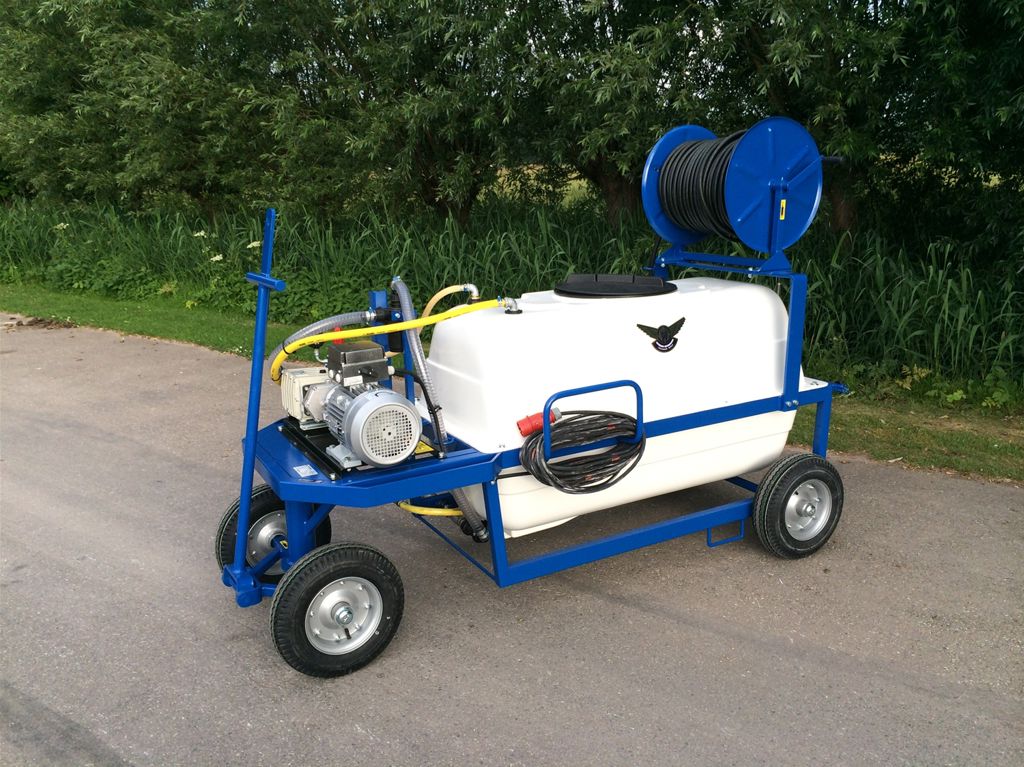

This spray trolley is equipped with a 1000 litre polyester tank, a direct coupled Imovilli P63 piston pump and a fixed manual hose reel.

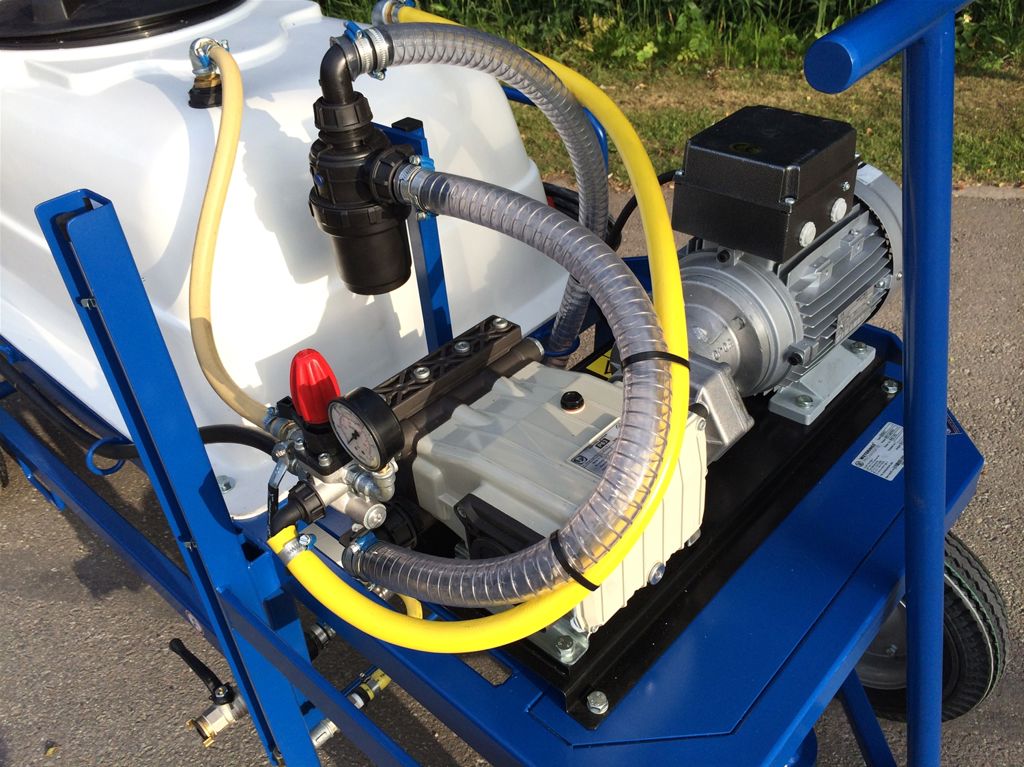

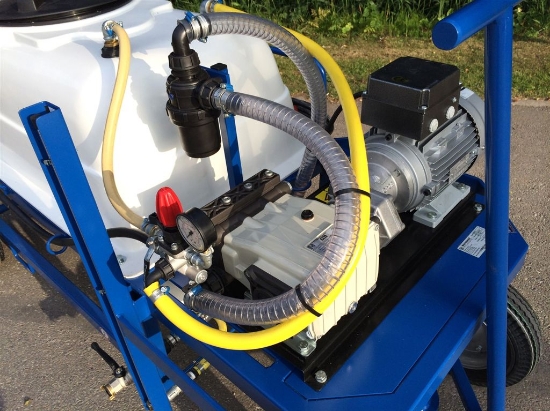

The Imovilli P63 plunger pump is very suitable for pumping protection agents. In addition, the plunger pump is also suitable for pumping ditch and surface water. The 4kW/400V pump motor is equipped with a star-delta switch. The pump is driven by a direct, maintenance free, reductor transmission.

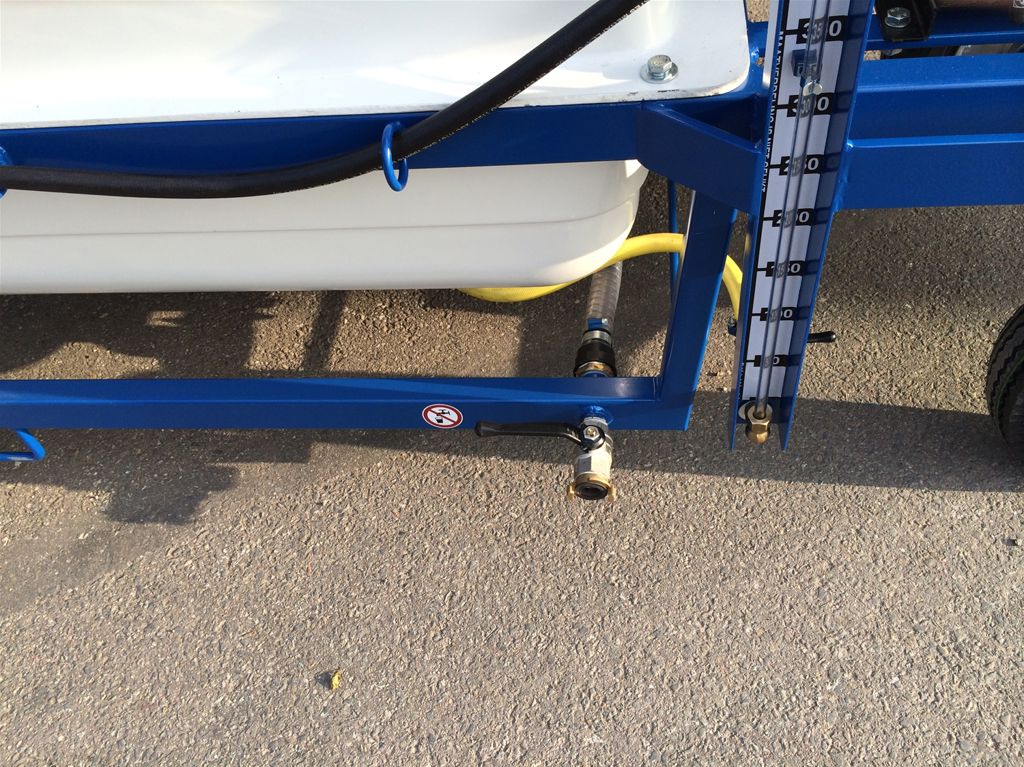

This trolley is equipped with anti-swirl inlet, stir injector, level glass, parking brake, cord bracket, cord guidance and external suction filter above liquid level. The tank can be filled from below to prevent foaming in the tank.

Specifications
Attribute name Attribute value
Item-number: 0925005
Main dimensions in transport position (mm): Length: 3100
Width: 1210
Height: 1440
Pump unit: P63 piston pump with 4kW electric motor and gearbox transmission
Water capacity of pump (ltr/min.): 40
Working pressure of pump (bar = kg/cm²): 50
Tank/barrel capacity (ltr.): 1000
Reel: Hand operated reel width 450mm
Maximum hose length on reel (mtr.): 163 (with 3/8” Propress hose)
114 (with 1/2” Propress hose)
118 (with 3/8” Altiplus hose)
83 (with 1/2” Altiplus hose)
Supply voltage (V), frequency (Hz): 400, 50
Tire dimensions: 500×8-8ply
Weight (kg): 365
Accessories: Power cable (10 mtr.)
Support bracket for power cable
Guide for power cable
Parking brake
Gauge
External suction filter above liquid level
Stir injectors (1x)
Options: Spraying hose
Spring operated reel
Electric reel / Weri Compact Roller
Stainless steel packing cleaner
