Sky Hopper Scissor lift

Product code: 0699850

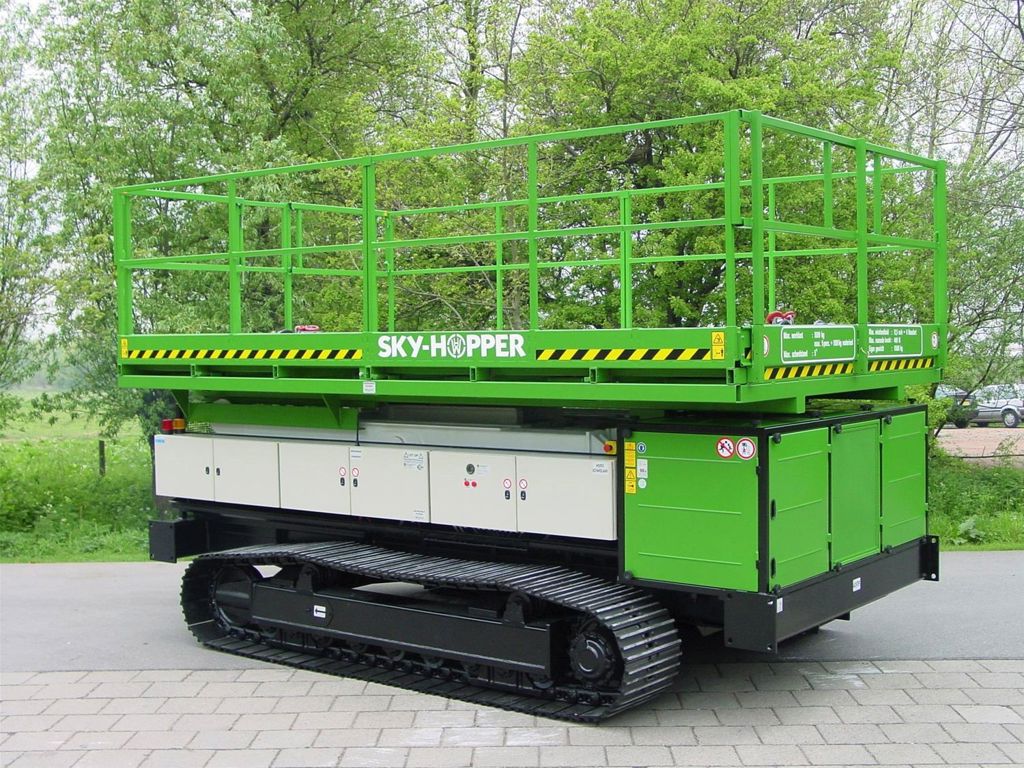

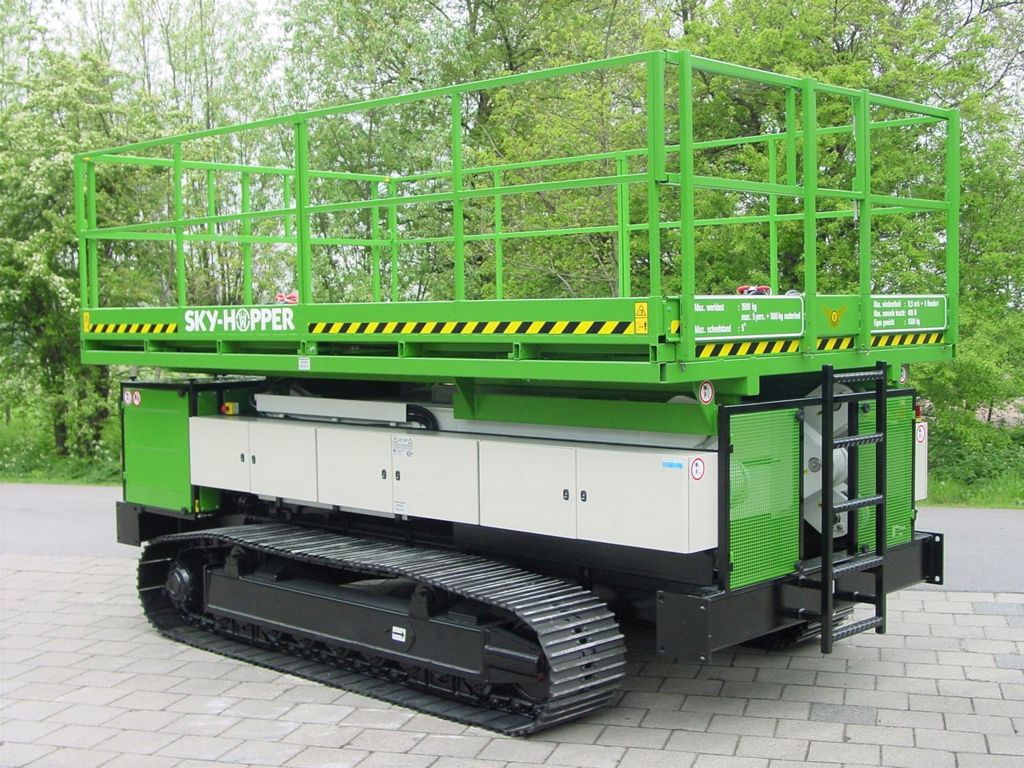

Picture of Sky Hopper Scissor lift

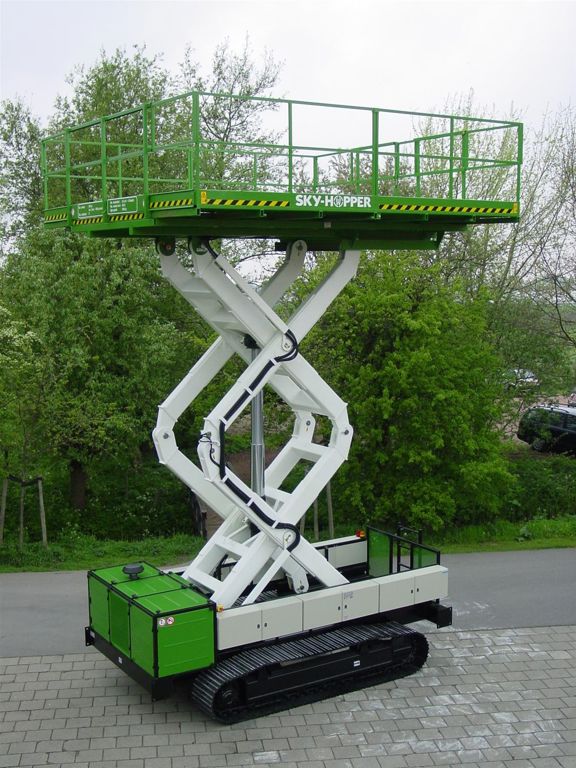

Picture of Sky Hopper Scissor lift

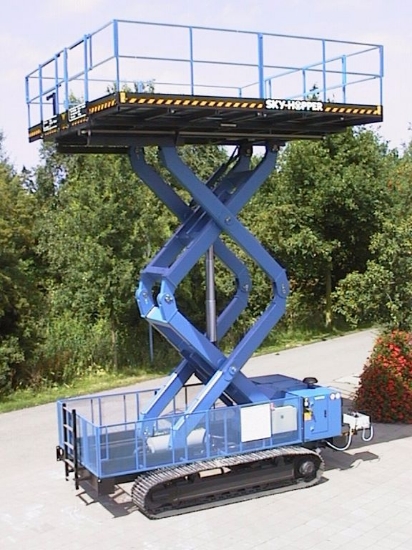

Picture of Sky Hopper Scissor lift
Picture of Sky Hopper Scissor lift

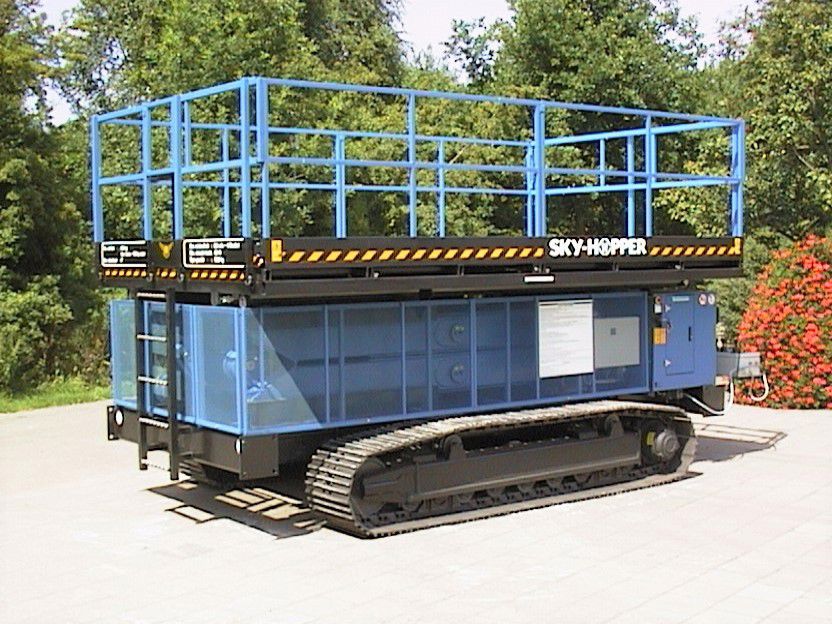

Picture of Sky Hopper Scissor lift

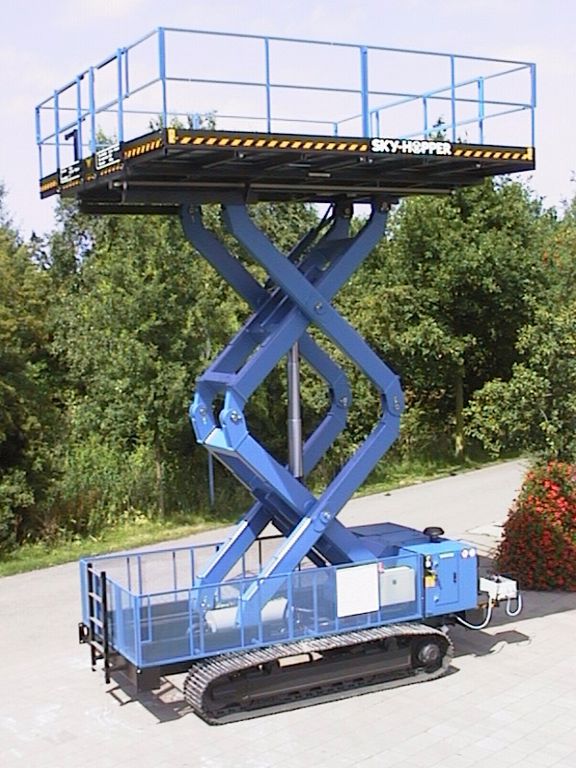

Picture of Sky Hopper Scissor lift

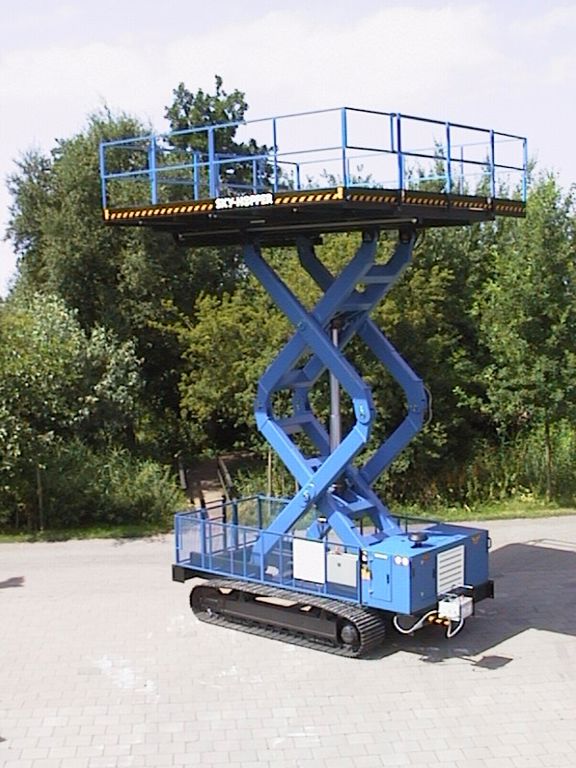

Picture of Sky Hopper Scissor lift

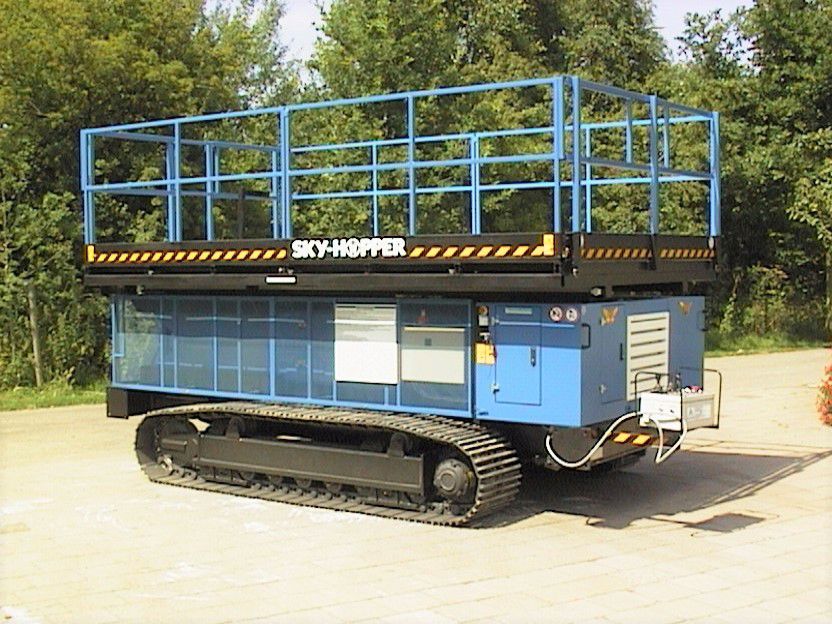

Picture of Sky Hopper Scissor lift
+4 +3 +2

€ 135.944,58

-
+
Ask a question

Description

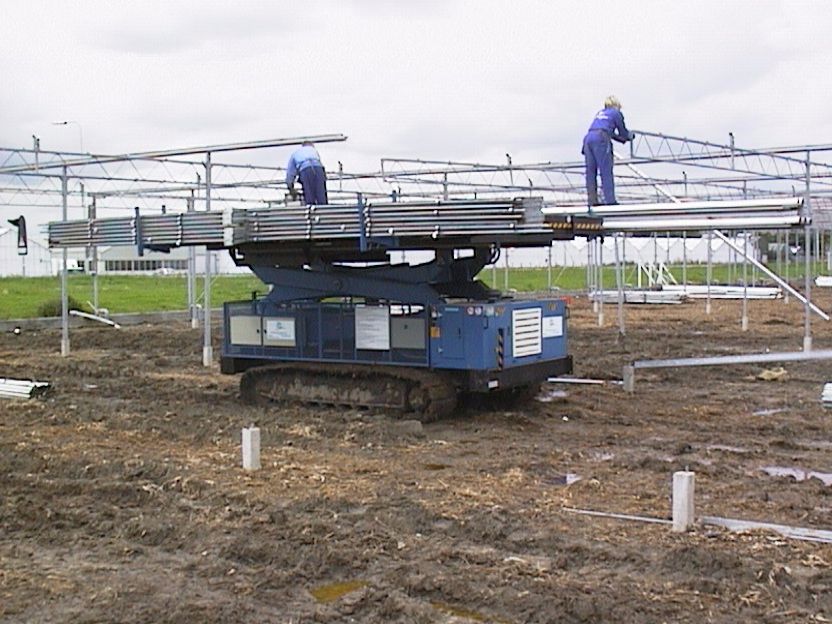

The Sky Hopper scissor lift is the ideal aerial work platform to demolish structures of horticulture greenhouses.

Both sides of the work platform can be extended hydraulically. It is possible to install a lifter at the front side of the caterpillar base to remove glass plates and four hydraulic stabilisers to provide the complete machine for a quick leveling.

Specifications
Attribute name Attribute value
Item-number: 0699850
Main dimensions in transport position (mm): Length: 4710
Width: 2600
Height: 2905 (with fencing), 1950 (without fencing)
Working width work platform (mm): 2600-4500
Height of floor work platform (mm): 1760-6120
Max. working height (mm): 8000
Wheelbase (mm): 2760
Gauge (mm): 2100
Width of tracks (mm): 500
Ground clearance (mm): 330
Ground pressure tracks (gr/cm²): 420
Max. level of work platform (°): 5,0
Max. level of caterpillar base (°): 5,0
Max. driving speed (km/h): 2,0
Weight (kg): 11,500
Lifting capacity of work platform (kg): 1500
Diesel engine: John Deere 4045TF280 (60 kW)
Options: Mastervolt 24-2500W sine inverter
Lifter
Hydraulic stabilisers
Documents: Handbook of aerial work platform
Instructions for use in Dutch
