PTO Drive Shaft HQ Walterscheid 1010mm 1-3/8" 39kW~695Nm

Product code: 5678454

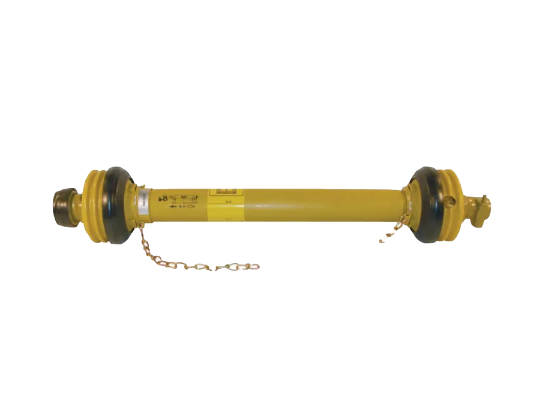

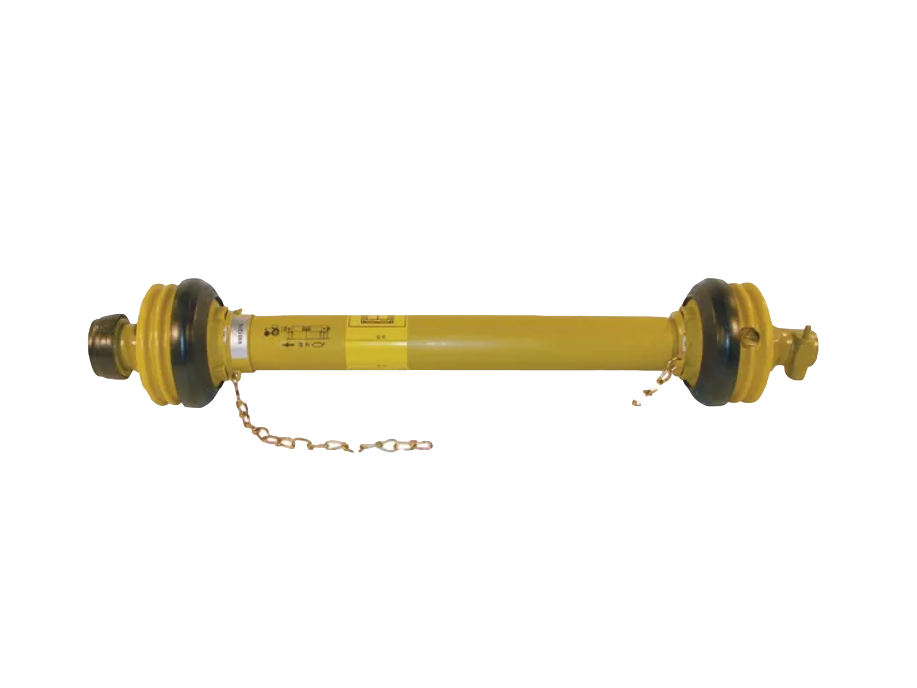

Picture of PTO Drive Shaft HQ Walterscheid 1010mm 1-3/8" 39kW~695Nm
Picture of PTO Drive Shaft HQ Walterscheid 1010mm 1-3/8" 39kW~695Nm

Price on request

-
+
Ask a question

Description

High-quality PTO shaft with standard 5 degree angle, suitable for heavier applications such as tillage and larger pump units. The drive shaft is equipped with quick connections on both collars.

Specifications
Attribute name Attribute value
Item-number: 5678454
Outer diameter connecting shaft 1-3/8 Inch
Splines 6
Closed length Lz (mm) 1010
Size code W2400
Weight (kg): -
Properties Tension side 1-3/8" (6) shaft collar kit
Machine side 1-3/8" (6) slide pin
Lubrication frequency from 50 to 100 hours
Fulfilling the requirements laid out in EC 89/392 EEC
Fulfilling the safety standard EN12965
CE marking available
Consists of PTO shaft with shielding
Declaration of conformity
Instruction manual
Technical information See Walterscheid instruction manual
Max. dynamic capacity 540 rpm: 39 kW, 695 Nm
Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm
Values at working angle 5° and service life 1000 hours

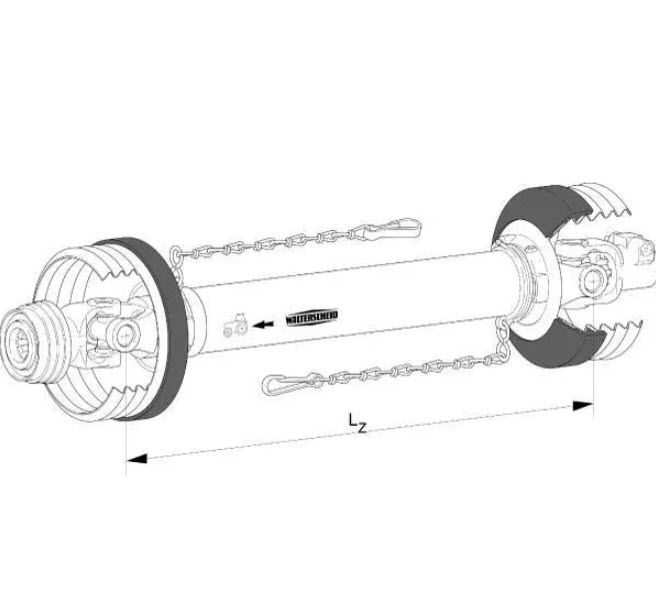

LZ = slid in length in mm, from intersection to intersection
