Hosereel unit triple hydraulic

Name: Hosereel unit triple hydraulic
SKU: 0500260
Availability: InStock

Product code: 0500260

+6 +5 +4

Price on request

Ask a question

Description

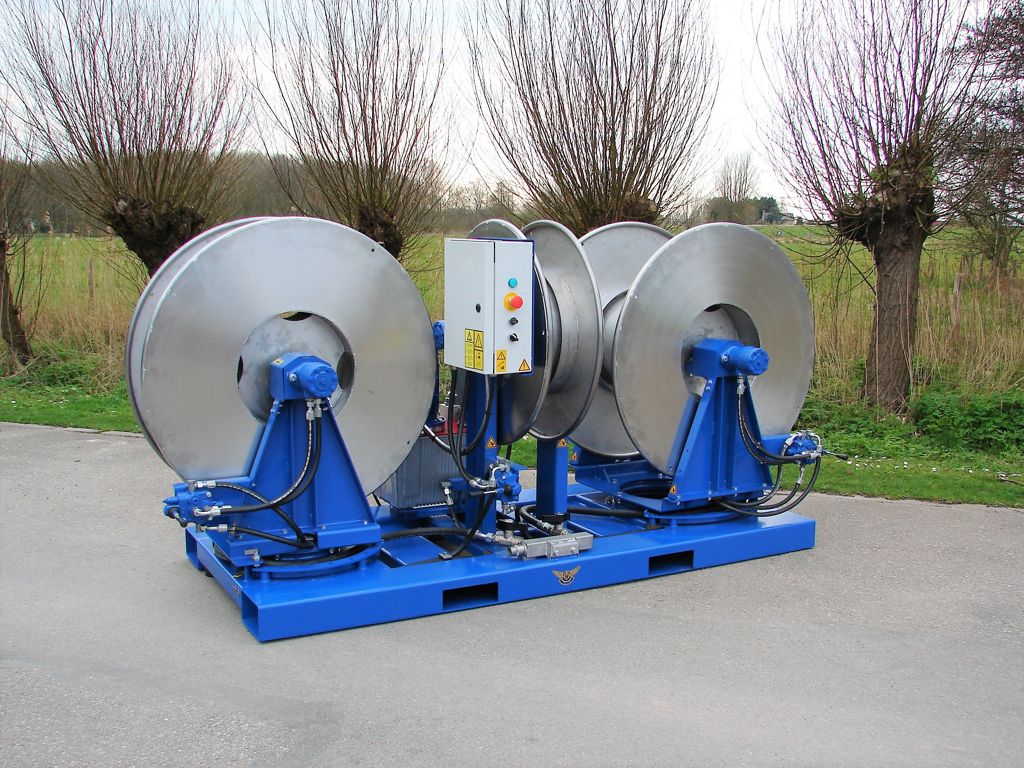

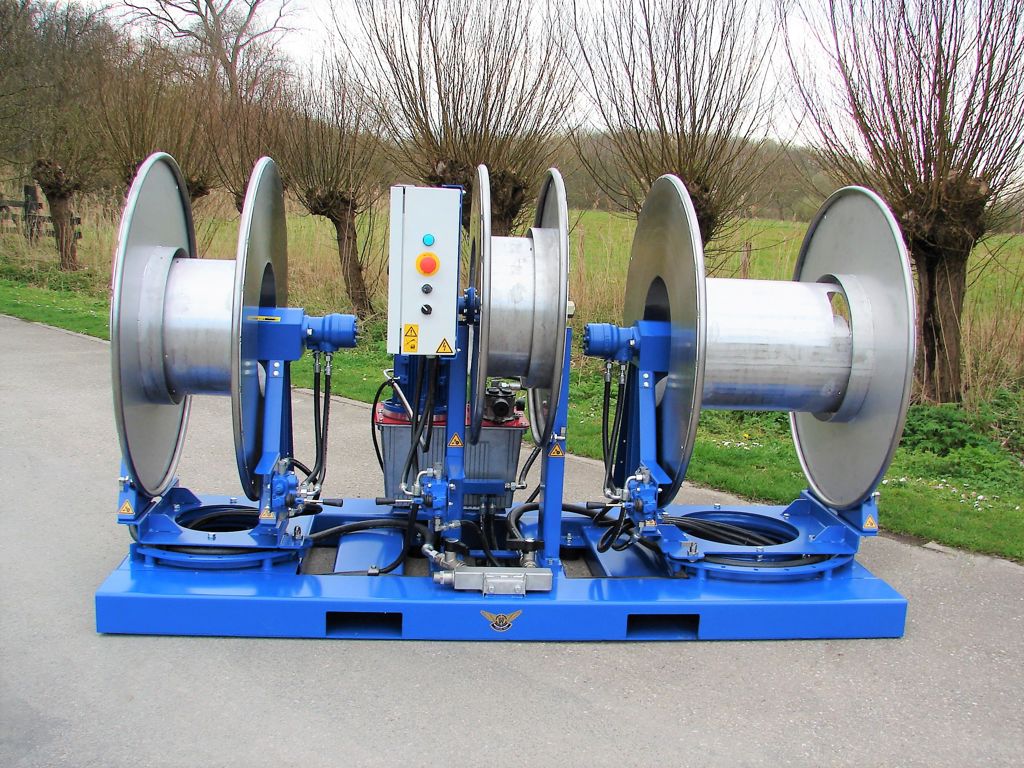

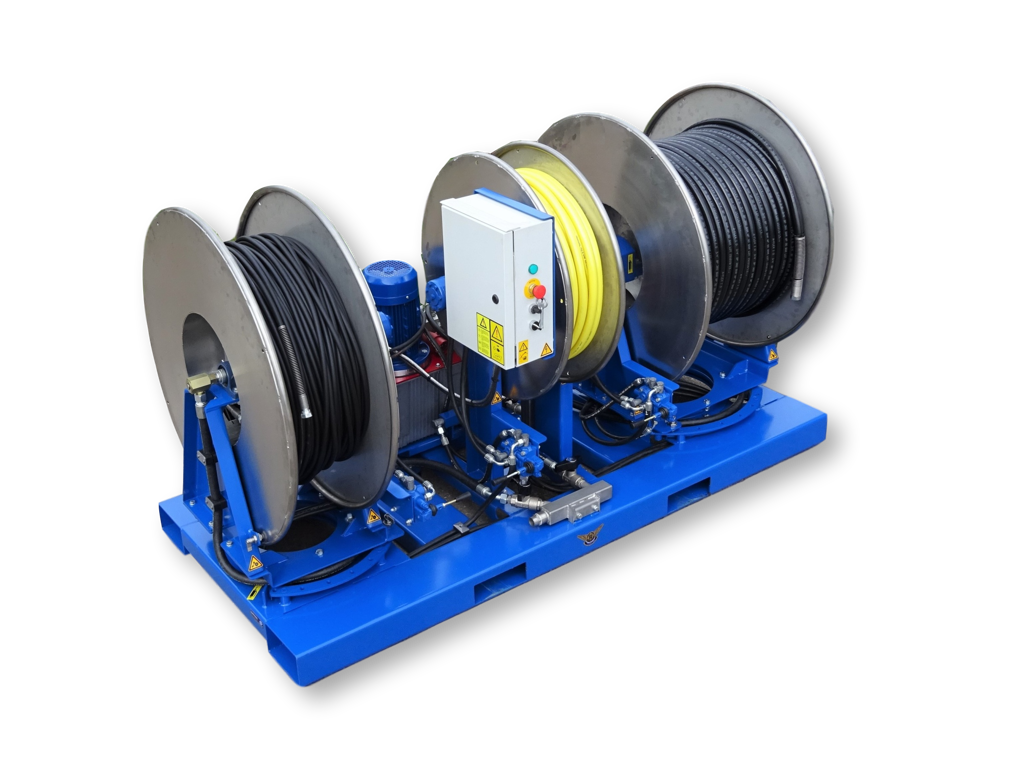

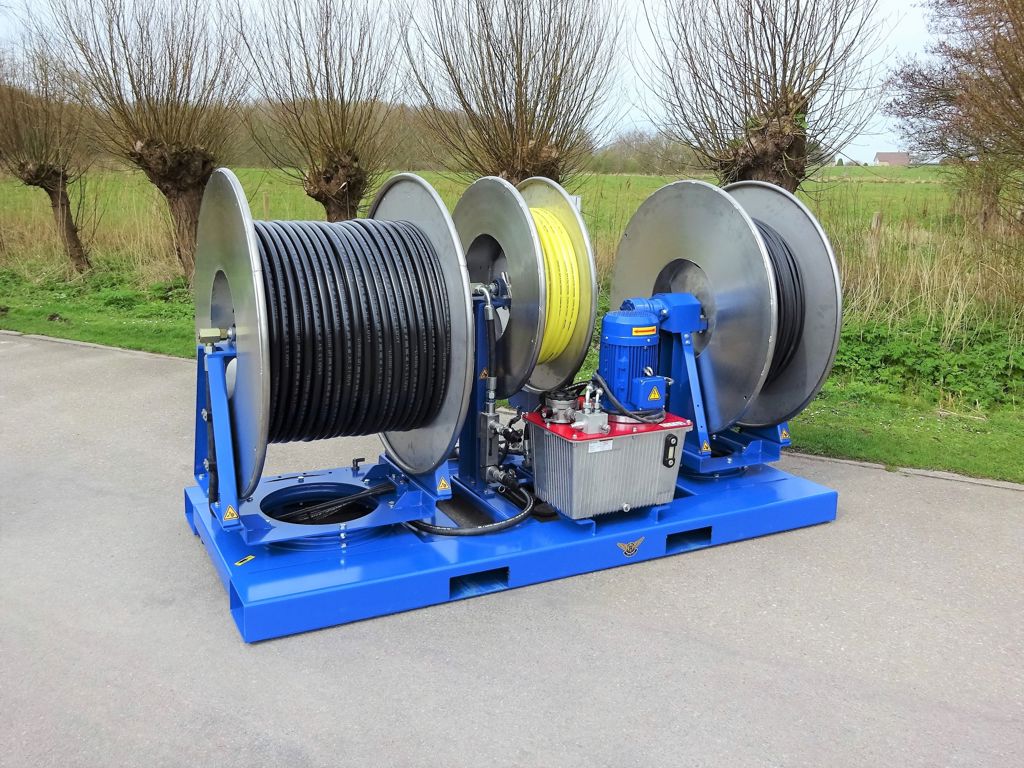

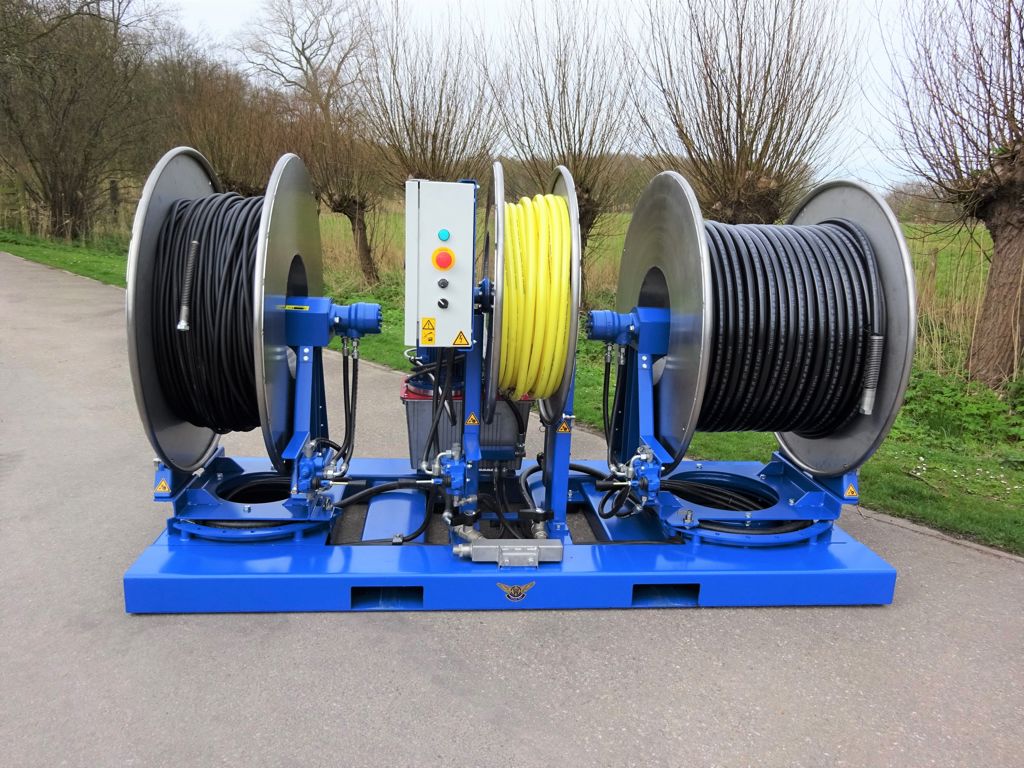

This reel unit has three hose reels for winding and unwinding of spray hoses. the two outer reels are pivotable by 90 degrees and provided with a swing lock. The reels are hydraulically driven by an electric hydraulic power unit. The winding speed is electronically controlled and can be set easily. The reels are provided with a freewheel for unwinding of the spray hoses. The Reel drums are made of stainless steel and fitted with swivel couplers.

Specifications

Attribute name	Attribute value
Item-number:	0500260
Main dimensions (mm):	Length: 2200
	Width: 1000
	Height: 1260
Maximum working pressure (bar = kg/cm²):	150
Hose reels:	Max. hose length reel 1: 300m 1/2” HP hose
	Max. hose length reel 2: 50m 3/4” hose
	Max. hose length reel 3: 300m 3/4” HP hose
Supply voltage (V), frequency (Hz):	400, 50
Electric motor (kW):	3
Maximum hydraulic pressure (bar = kg/cm²):	150
Weight (kg):	650
Accessories:	Power cable (5 mtr.)
	3/4” Swivel couplings
Options:	Spray hose on reel
	Mix tanks
	Pump units
	stirring units
