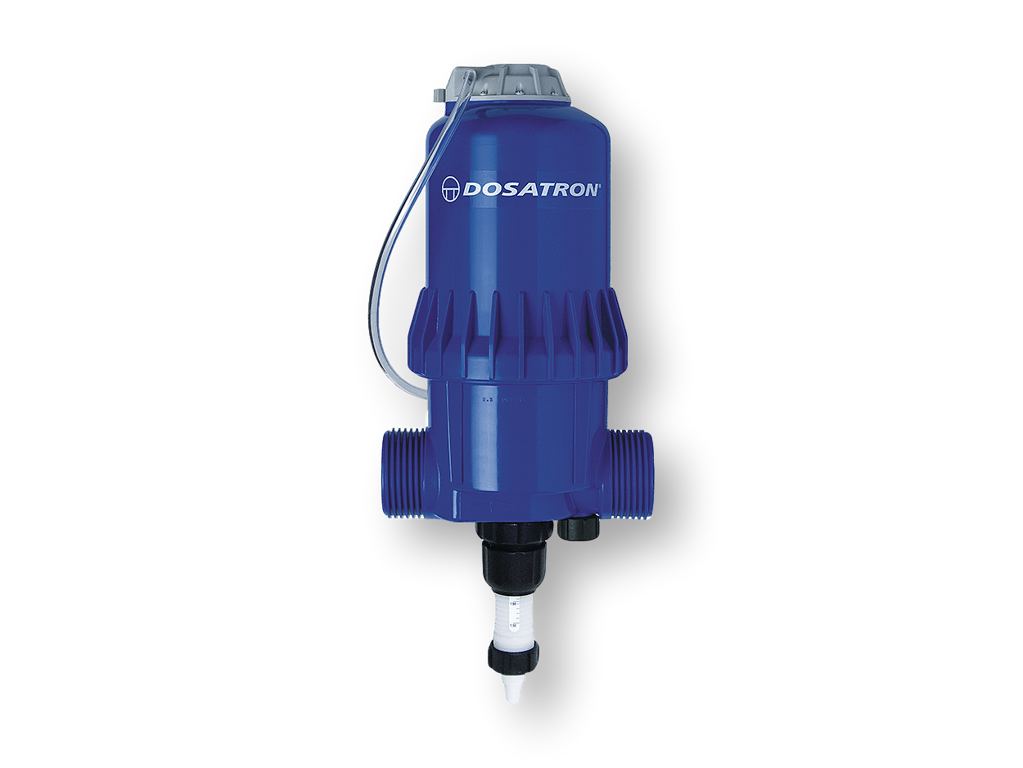

Dosatron D8RE2VF =500 L/h tot 8m³/h

Product code: 3860643

€ 1.702,44

-
+
Ask a question

Description

The proportional dispenser Dosatron D8RE2VF is very suitable for the precise dosing of liquids. The dosing pump operates without electricity and is driven by the water flowing through it. The motor drives a piston in the dosing adjustment mechanism and in this way feeds the liquid medium to be dosed through. Because of the pure quantity proportional drive, the dosing pump also works very accurately and reliably in case of pressure fluctuations happening. The desired dosage rate can be changed very easily at the dosage adjustment mechanism of the D8RE2.

Specifications
Attribute name Attribute value
Item-number: 3860643
Brand: Dosatron
Type: D8RE2VF
VF= standard chemical dosing pump
oils, odour- or pestcontrol concentrates
Seals for acidic additives (Viton)
Equipped with a bypass (on and off): No
Injection Range: 0,2 - 2,0 %, (1:500-1:50)
Operating pressure: 0,15 - 8 bar
Concentrated additive injection: 1 - 160 l/u
Material: Polyacetal Blue
Maximum operating water temperature: 40 °C
Minimum operating water temperature: 5 °C
Capaciteit: 500 l/h tot 8m³/h
Inlet/Outlet: NPT-BSP 1,½'' male thread M Ø 40x49mm
Weight (kg): 2
