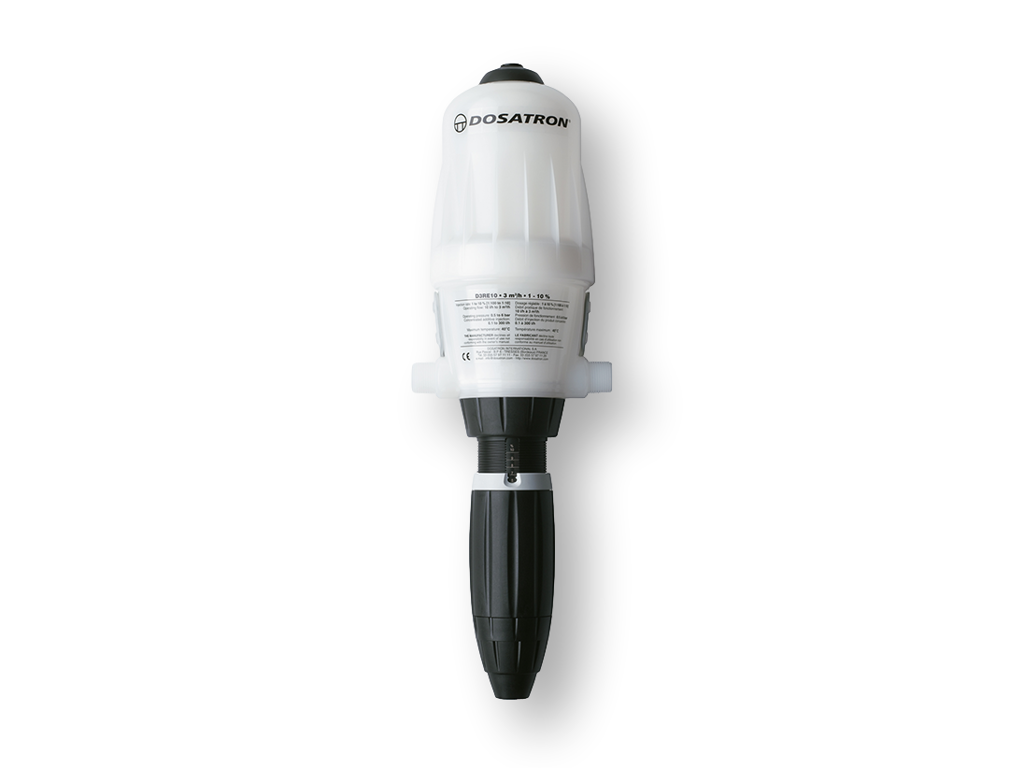

Dosatron D3RE10BPVFP=10 l/h tot 3m³/h

Product code: 3860621

Price on request

-
+

Description

The Dosatron D3RE10 is engineered for applications that demand high-concentration chemical dosing with precision and control. With an adjustable dosing range of 1.0% to 10% and a flow rate of 2 to 53 liters per minute, this pump is perfect for high-injection tasks such as cleaning, disinfection, and chemical treatments in both agricultural and industrial settings. The D3RE10’s non-electric operation relies solely on water flow, providing consistent and proportional dosing without the need for an external power source. Its robust design ensures durability and long-term reliability, even in challenging environments. Whether you’re working with potent chemicals or simply need a pump that can handle more concentrated solutions, the Dosatron D3RE10 offers the flexibility and performance to meet your dosing needs with ease.

Specifications
Attribute name Attribute value
Item-number: 3860621
Brand: Dosatron

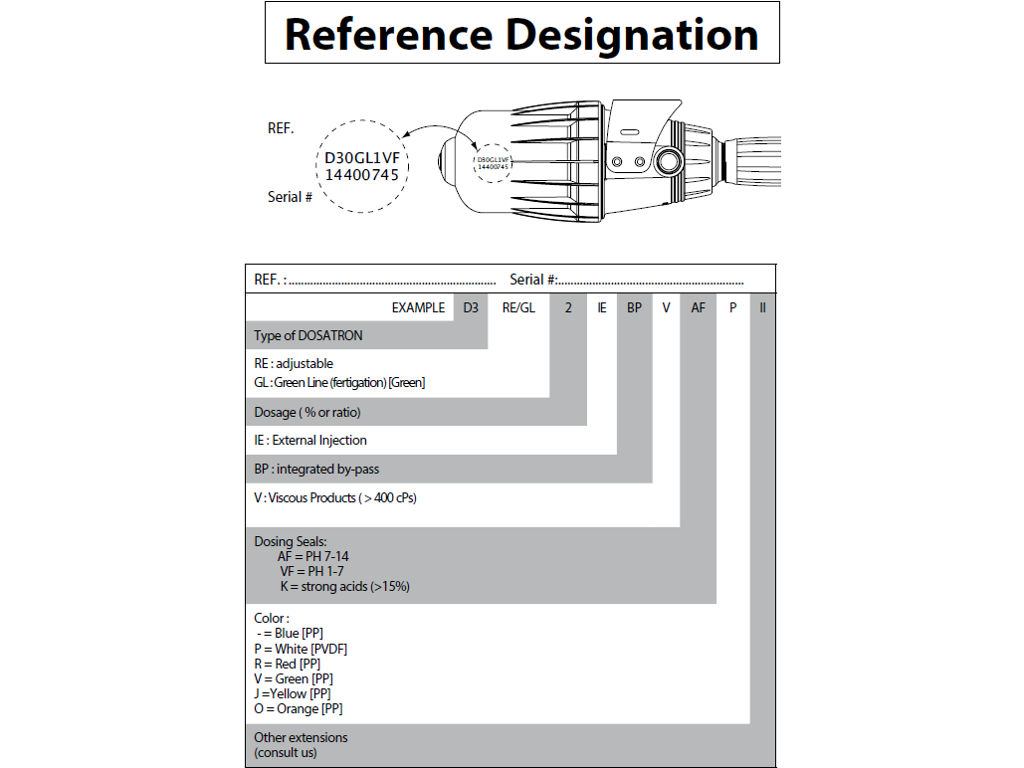

Type: D3RE10BPVFP
VF= For acids, oils, odour-
or pestcontrol concentrates.
Seals for acidic additives (Viton)
PVDF housing for highly concentrated acids and other aggressive concentrates
Equipped with a bypass (on and off) Yes
Injection Range: 1 - 10 %, (1:100-1:10)
Operating pressure: 0,3 - 6 bar
Concentrated additive injection: 0,01 - 300 l/u
Stroke volume 0,53 l
Material: Polyacetal White
Maximum operating water temperature: 40 °C
Minimum operating water temperature: 5 °C
Capaciteit: 10 l/h tot 3,0 m³/h
Inlet/Outlet NPT-BSP ¾'' male thread M Ø 20x27mm
Weight (kg): 2
