Dosatron D3GL2BPVF=10 l/h tot 3,0m³/h

Product code: 3860460

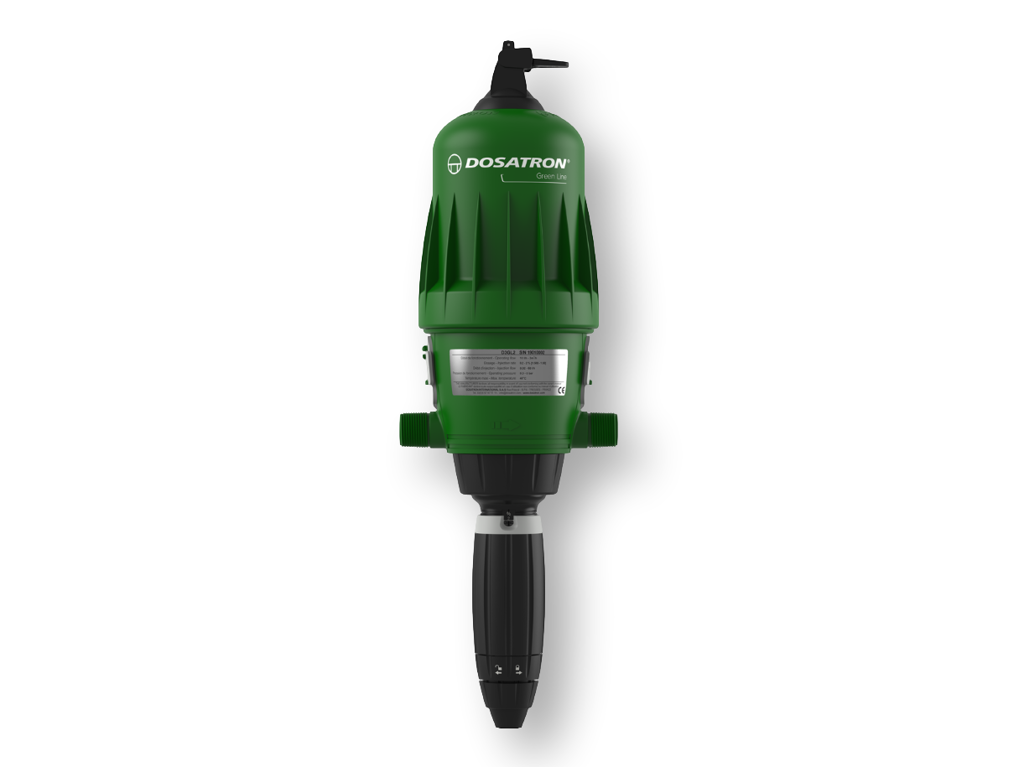

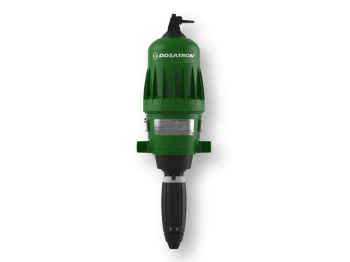

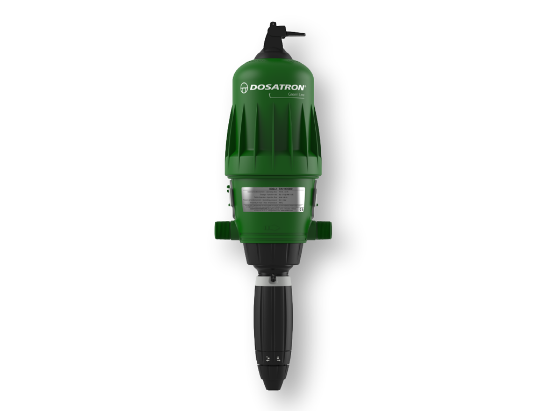

Picture of Dosatron D3GL2BPVF=10 l/h tot 3,0m³/h
Picture of Dosatron D3GL2BPVF=10 l/h tot 3,0m³/h

Price on request

-
+
Ask a question

Description

DOSATRON -Dosing pump for accurate dosing without electricity. A dosing pump from DOSATRON belonging to the GreenLine series with pump housing in green plastic that is extra UV resistant and specially developed for use in irrigation technology.

Product Files
D3GL Irrigation
D3GL Irrigation
D3GL Parts diagram
D3GL Parts diagram
Specifications
Attribute name Attribute value
Item-number: 3860460
Brand: Dosatron

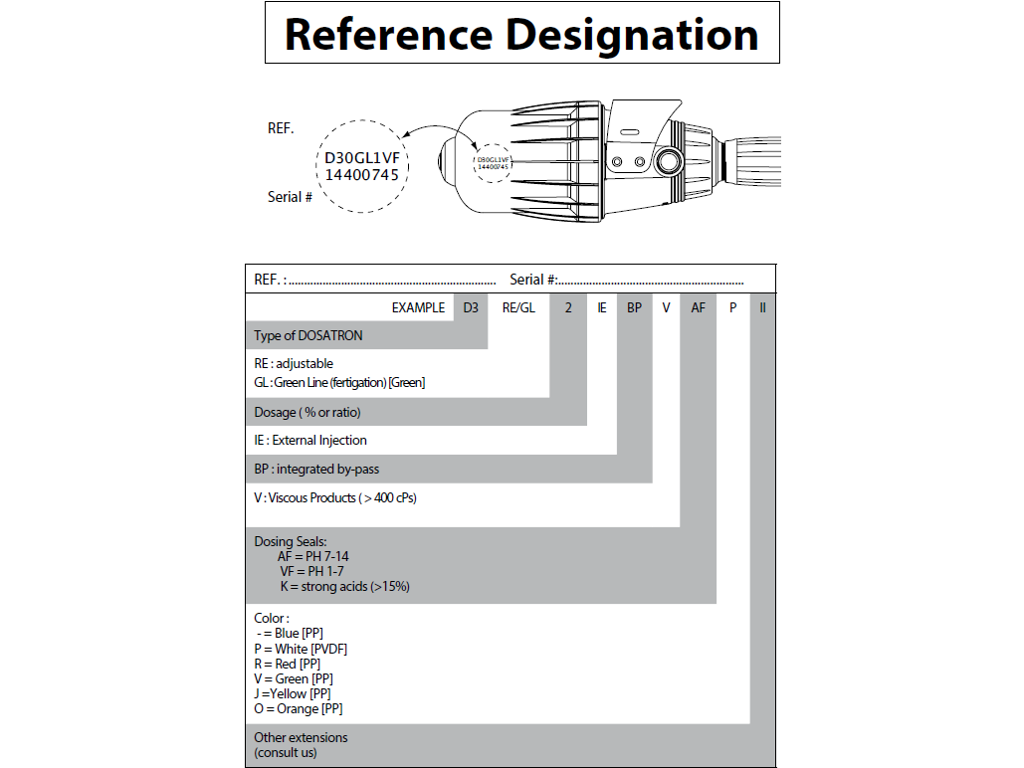

Type: D3GL2BPVF
For acids, oils, odour-
or pestcontrol concentrates.
Seals for acidic additives (Viton)
Equipped with a bypass (on and off): Yes
Injection Range: 0,2 - 2,0 %, (1:500-1:50)
Operating pressure: 0,3 - 6 bar
Concentrated additive injection: 0,02 - 60 l/u
Material: Polyacetal Green
Maximum operating water temperature: 40 °C
Minimum operating water temperature: 5 °C
Capaciteit: 10 l/h tot 3,0 m³/h
Inlet/Outlet NPT-BSP 3/4'' male thread M Ø 20x27mm
Weight (kg): 2
