Dosatron D25RE2BPVF=10 l/h tot 2.5m³/h

Product code: 3860500

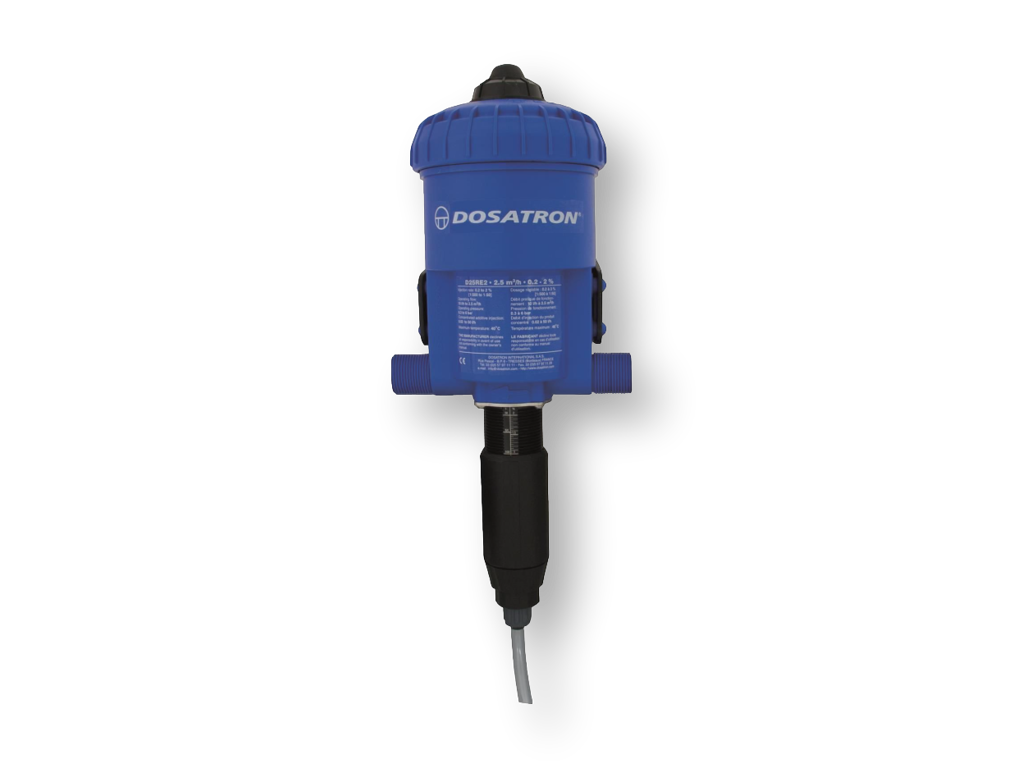

Picture of Dosatron D25RE2BPVF=10 l/h tot 2.5m³/h
Picture of Dosatron D25RE2BPVF=10 l/h tot 2.5m³/h

Price on request

-
+
Ask a question

Description

The Dosatron D25RE2 Medicator is a versatile and reliable solution for all your dosing needs, suitable for applications requiring dosing from 10 l/h to 2.5 m³/h. This device is ideal for accurately dispensing antibiotics, vaccines, vinegar, chlorine, and disinfectants. Powered by water pressure, the Dosatron D25RE2 installs directly into your water supply line, ensuring precise injection of medications and chemicals into water lines regardless of flow or pressure variations.

Product Files
D25 Parts diagram BP
D25 Parts diagram BP
D25 Quick start up
D25 Quick start up
D25 Rangesheet
D25 Rangesheet
D25 User manual
D25 User manual
Specifications
Attribute name Attribute value
Item-number: 3860500
Brand: Dosatron

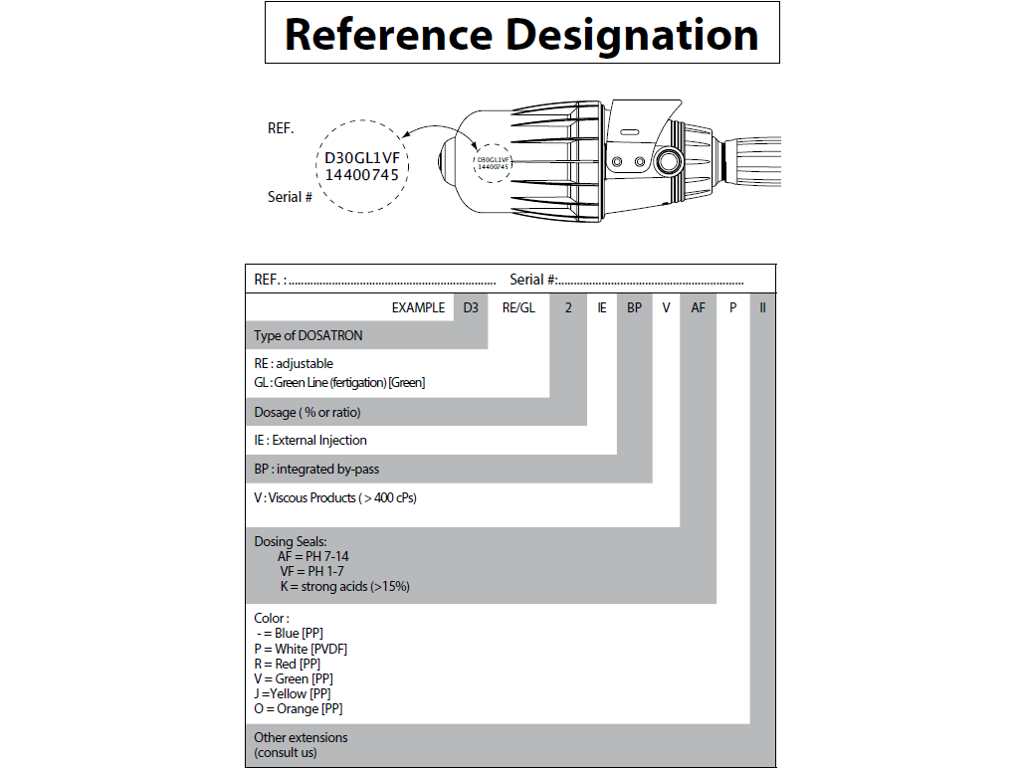

Type: D25RE2BPVF
VF= standard chemical dosing pump,
oils, odour- or pestcontrol concentrates
Seals for acidic additives (Viton)
Equipped with a bypass (on and off) Yes
Injection Range: 0,2 - 2,0 %, (1:500-1:50)
Operating pressure: 0,3 - 6 bar
Concentrated additive injection: 0,02 - 50 l/u
Stroke volume: 0,45 l
Maximum operating water temperature: 40 °C
Minimum operating water temperature: 5 °C
Capaciteit: 10 l/h tot 2,5 m³/h
Inlet/Outlet NPT-BSP 3/4'' male thread M Ø 20x27mm
Weight (kg): 2
