Dosatron D25RE09VFP=10 l/h tot 2,5m³/h

Product code: 3860448

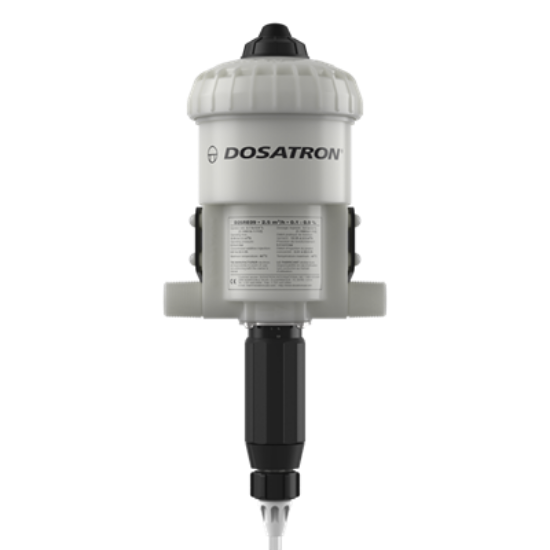

Picture of Dosatron D25RE09VFP=10 l/h tot 2,5m³/h
Picture of Dosatron D25RE09VFP=10 l/h tot 2,5m³/h

Price on request

-
+
Ask a question

Description

Precise, simple and reliable. Installed directly in the water supply line, the DOSATRON operates by using water pressure as the power source. Water activates the DOSATRON, which takes up the required percentage of concentrate. Inside the DOSATRON, concentrate is mixed with water. Water pressure forces the solution downstream. The dose of concentrate will be directly proportional to the volume of water entering the DOSATRON, regardless of variations in flow or pressure which may occur in the main line.

Product Files
D25 Parts diagram BP
D25 Parts diagram BP
D25 Quick start up
D25 Quick start up
D25 Rangesheet
D25 Rangesheet
D25 User manual
D25 User manual
Specifications
Attribute name Attribute value
Item-number: 3860448
Brand: Dosatron

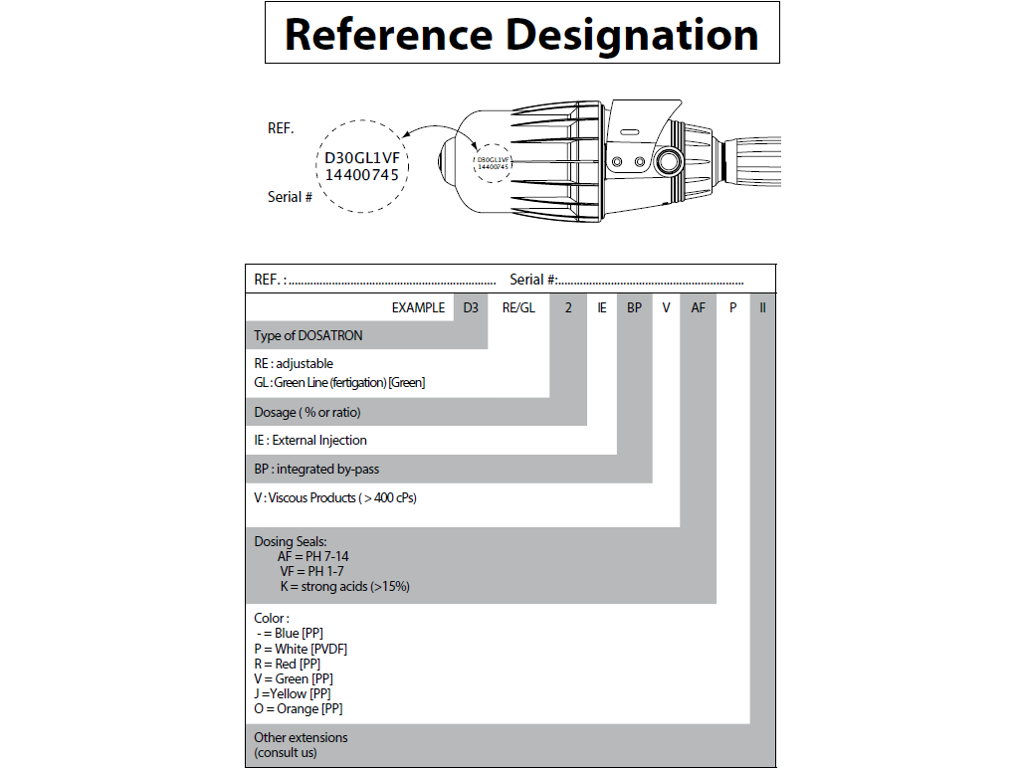

Type: D25RE09VFP
VF= For acids, oils, odour-
or pestcontrol concentrates.
PVDF housing for highly concentrated acids and other aggressive concentrates
Equipped with a bypass (on and off) No
Injection Range: 0,1 - 0, 9 %, (1:1000-1:112)
Operating pressure: 0,3 - 6 bar
Concentrated additive injection: 0,01 - 22,5 l/u
Stroke volume 0,34 l
Material: Polyacetal White
Maximum operating water temperature: 40 °C
Minimum operating water temperature: 5 °C
Capaciteit: 10 l/h tot 2,5 m³/h
Inlet/Outlet NPT-BSP ¾'' male thread M Ø 20x27mm
Weight (kg): 2
