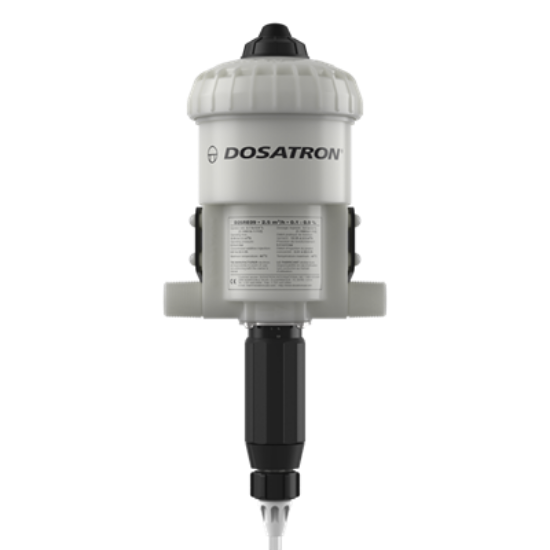

Dosatron D25RE09AFP=10 l/h tot 2,5m³/h

Product code: 3860449

Price on request

-
+

Description

The Dosatron D25RE09 is a precision dosing pump engineered for applications requiring lower dosage ranges with high accuracy. With an adjustable dosing range of 0.10% to 0.90% and a flow rate capacity from 4 to 34 liters per minute, this model is ideal for scenarios where precise and controlled chemical injection is crucial. The D25RE09 is perfect for horticulture, livestock care, and water treatment applications, where maintaining consistent concentration levels is essential for optimal results. Its non-electric design makes it easy to install and operate, while its reliable performance ensures that you can achieve consistent dosing even with fluctuating water pressure. Compact, efficient, and user-friendly, the D25RE09 provides a dependable solution for smaller-scale operations that demand meticulous dosing accuracy.

Specifications
Attribute name Attribute value
Item-number: 3860449
Brand: Dosatron
Type: D 25 RE 09 AFP
AF- for alkaline detergents-disinfectants
Saels for alkaline additives
PVDF housing for highly concentrated acids and other aggressive concentrates
Equipped with a bypass (on and off) No
Injection Range: 0,1 - 0, 9 %, (1:1000-1:112)
Operating pressure: 0,3 - 6 bar
Concentrated additive injection: 0,01 - 22,5 l/u
Stroke volume: 0,34 l
Material: Polyacetal white
Maximum operating water temperature: 40 °C
Minimum operating water temperature: 5 °C
Capaciteit: 10 l/h tot 2,5 m³/h
Inlet/Outlet NPT-BSP 3/4'' male thread M Ø 20x27mm
Weight (kg): 2
