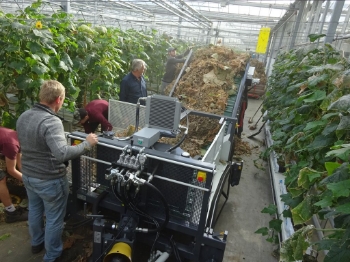

Bio Hopper XLE-32A (Electric)

Product code: 2460035

Price on request

-
+

Description

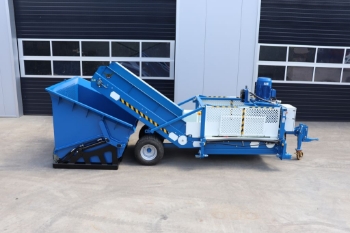

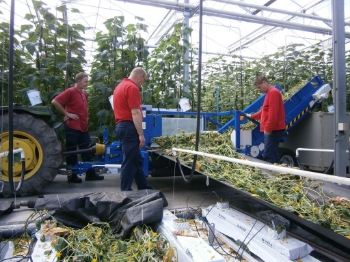

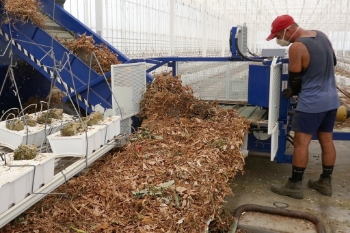

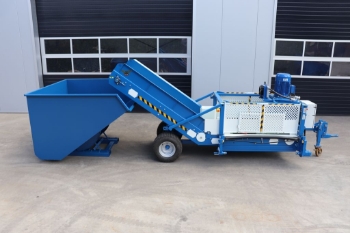

This fully electrically driven Bio Hopper XL is a very powerful and efficient machine for cleaning out various horticultural substrates (rockwool, perlite, coir, slabs), tomato leaf, groundcover and various crops (cucumber, tomato, strawberries, chrysanthemums, etc.). The Bio Hopper rolls up the canvas on which the material is drawn to the machine. The material falls on a conveyor belt, which transports it into a (tipping)container or on the concrete path. Instead of a containers, the material can also be driven out with a foliage fork.

The Bio Hopper XLE is equipped with safetydoors. These safetydoors ensure that the winding of the canvas is fully shielded. Winding is only possible when the safetydoors are fully opened. This guarantees the safety of the operators!

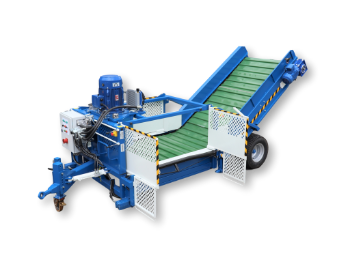

The conveyor belt is extremely durable and reïnforced with steel bars. The steel bars ensure that an accidental damage to the belt has no influence on the strength of the belt, so you can always finish the job.

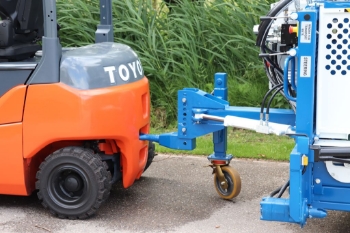

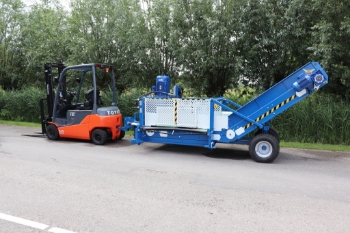

This crop rotation machine can be coupled behind a forklift for moving, is fed by means of a 32 Amp connection and is optionally available for various power supplies other than 400V @ 50Hz.

Specifications
Attribute name Attribute value
Item-number: 2460035
Main dimensions in transport position (mm): Length: 4945
Width: 2010
Height: 1901 (wheel axle in lowest position)
Weight (kg): 1,300
Gauge (mm): 1000
Tire dimensions: 24.0×13.00-12 (2x)
Processing capacity (m²/u): 3000-6500 (depending on circumstances)
Max. length of transport mat (m): 160
Hydraulic working pressure (bar): 180
Power Supply: 400VAC / 50Hz / 32A
Total power consumption (kW) 14
Accessories: Fully electric driven
Intake on both sides of the Bio Hopper
Integrated fabric steering for straight and foldfree rolling of the fabric
WSS safetysystem with full shielding around fabric winder for maximum safety and efficiency
Force reducing roller tubes on high torque intake units for pulling in long heavy rows
Multifunctional safety doors
Belt driven conveyor with steel cross pins
Rear axle in height adjustable
In height adjustable drawbar eye: Cat.2-Ø25,7 / Cat.3-Ø37,6
Robust in height adjustable jockey wheel
Proportional hydraulic controlls
Load sensing hydraulic pump for maximum efficiency
Oil cooler for extreme conditions
Conveyor speed stepless adjustable
Options: Robust flights on conveyor
Lighting
{4418772:Transport fabric!} with {4418752:steel core!}
