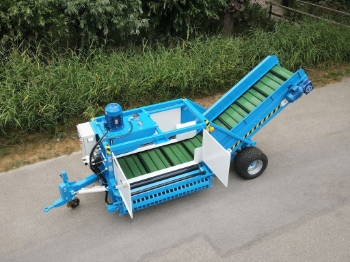

Bio Hopper E-16A (Electric)

Product code: 2460036

Price on request

-
+

Description

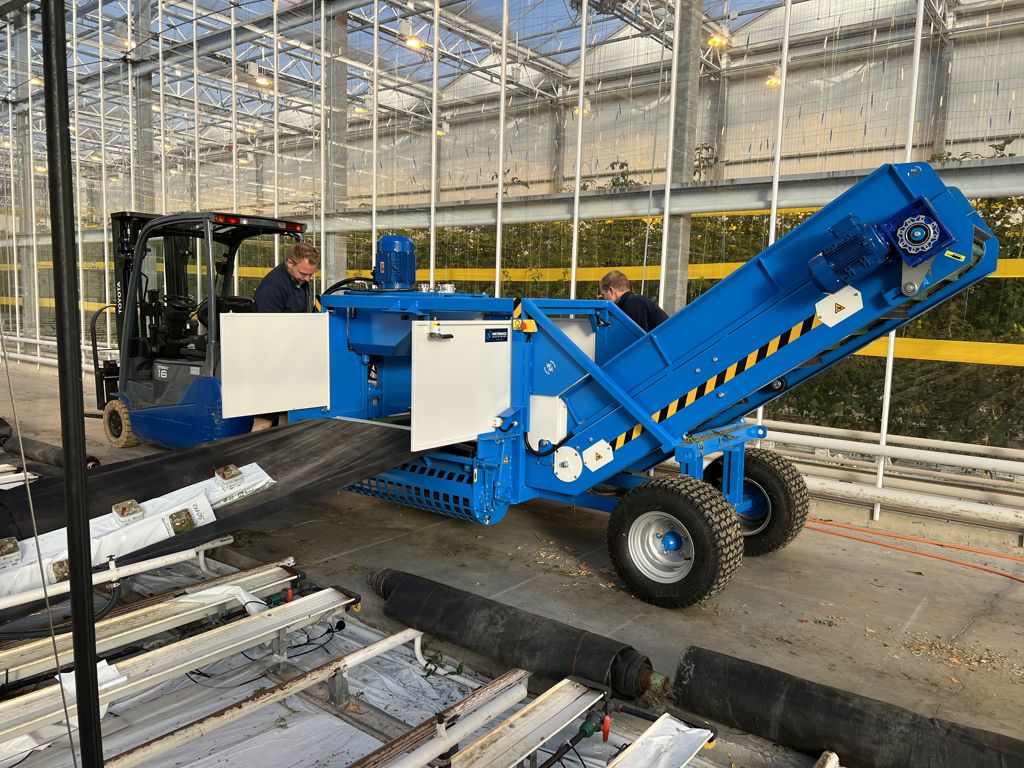

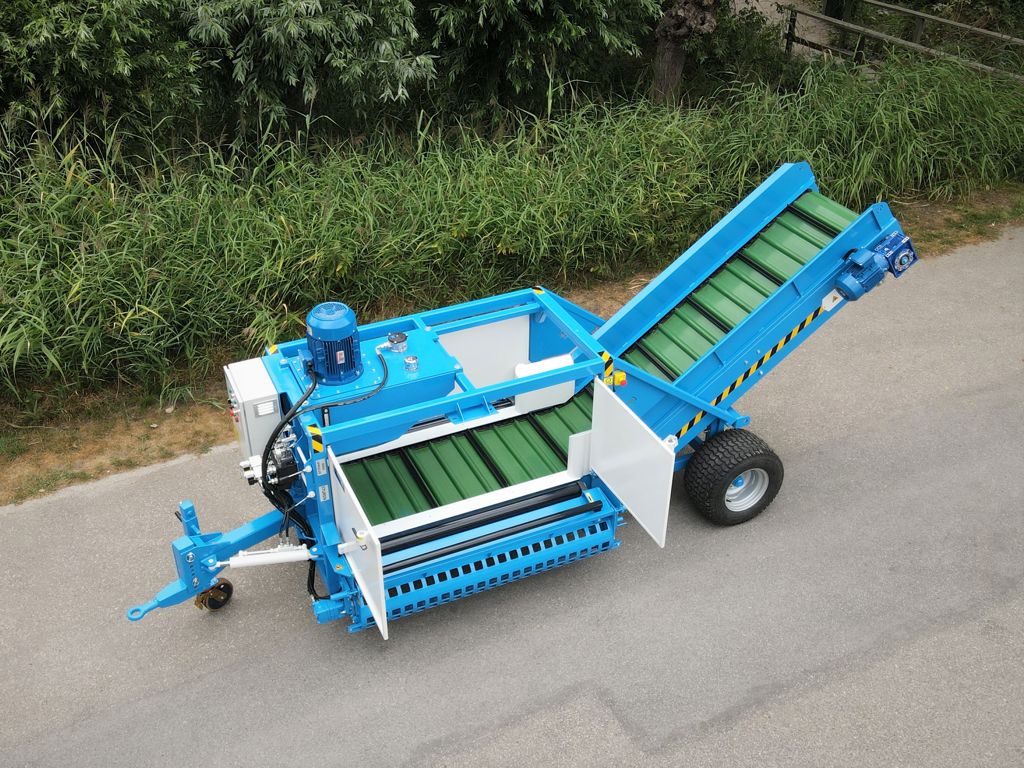

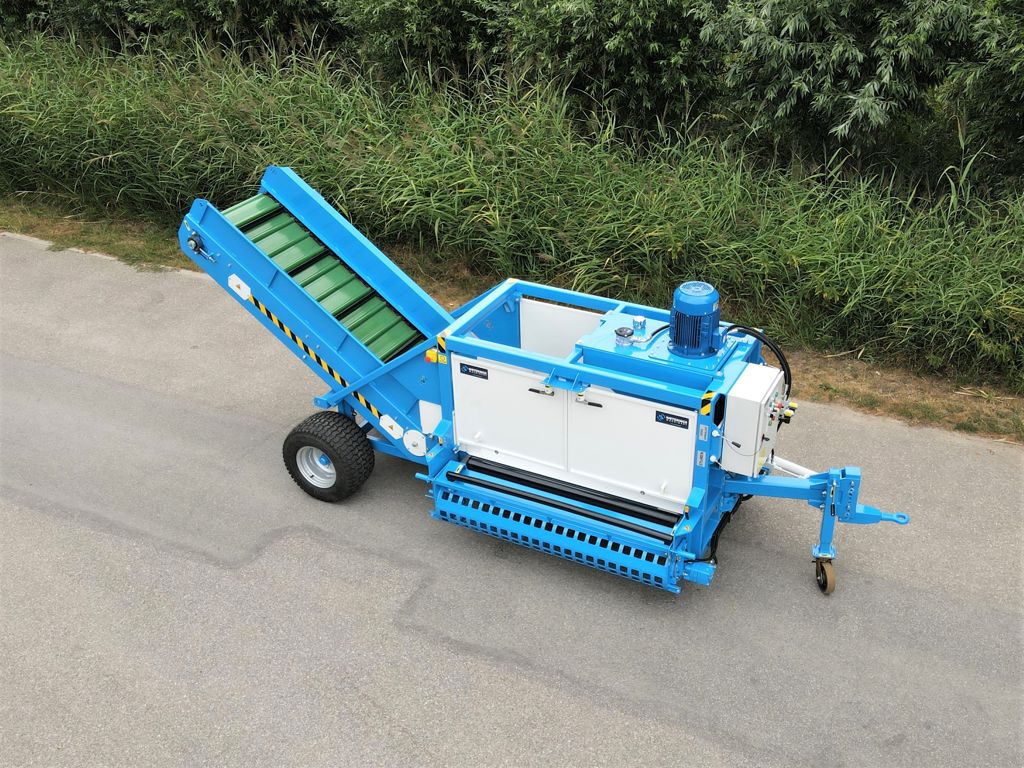

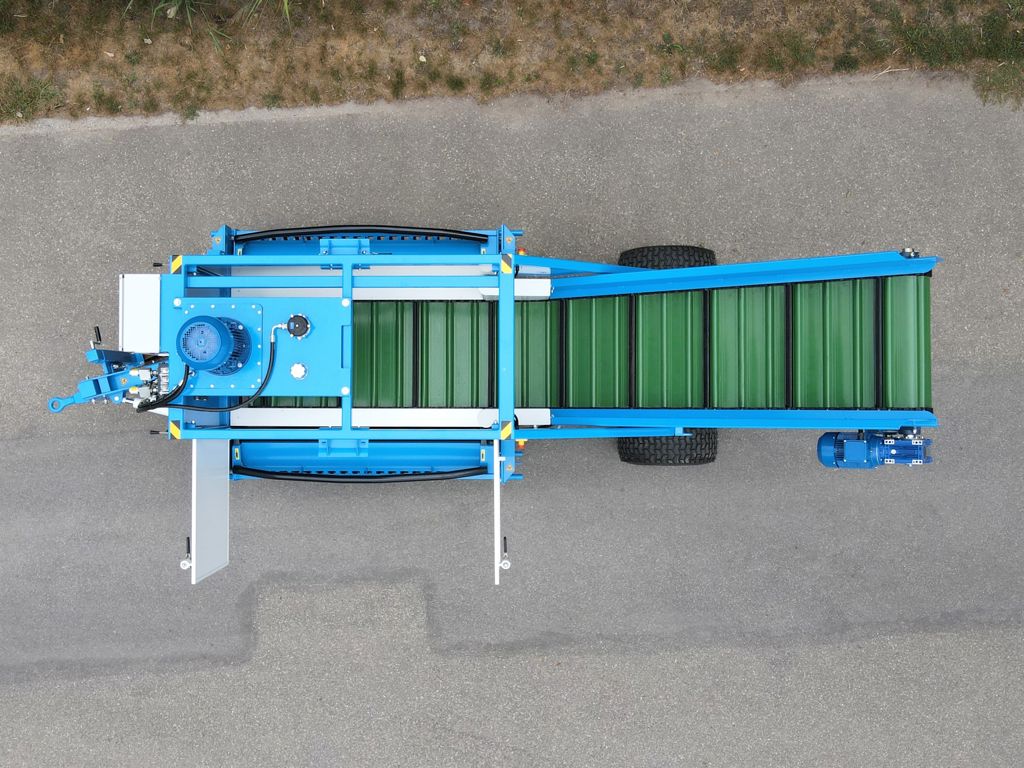

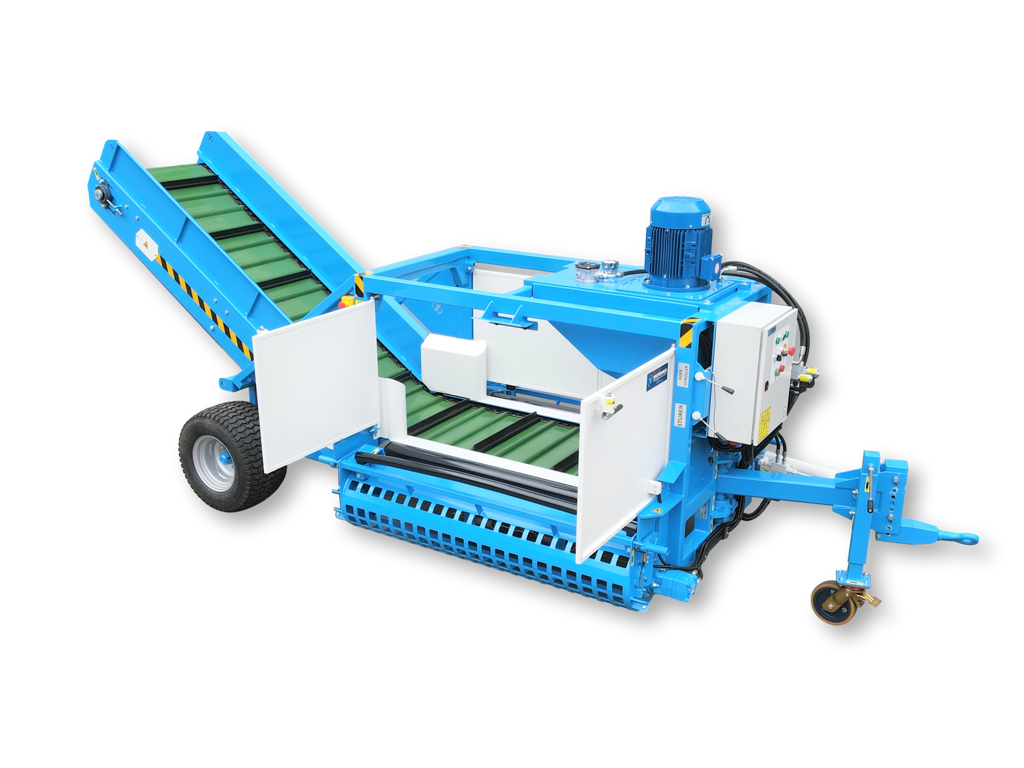

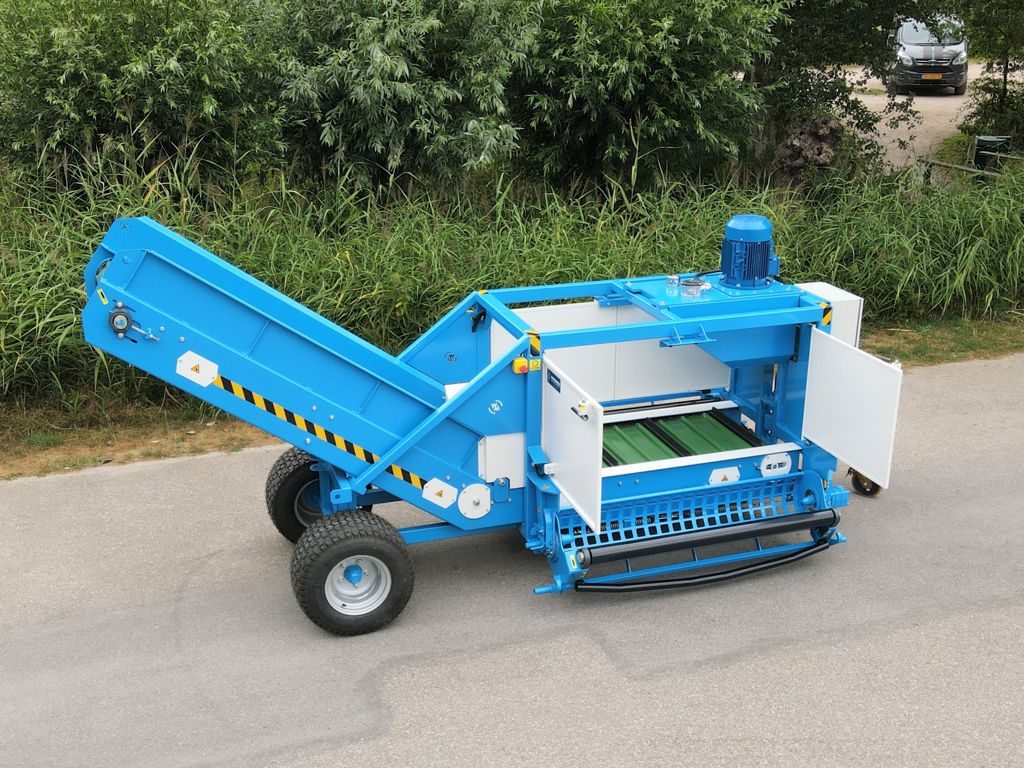

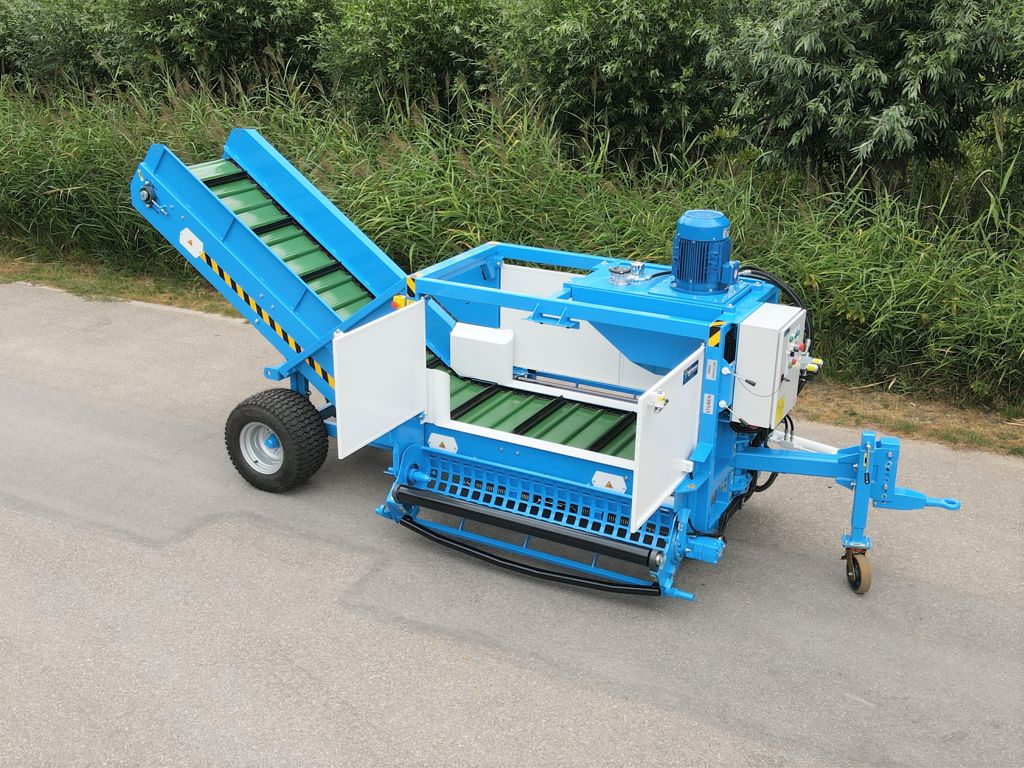

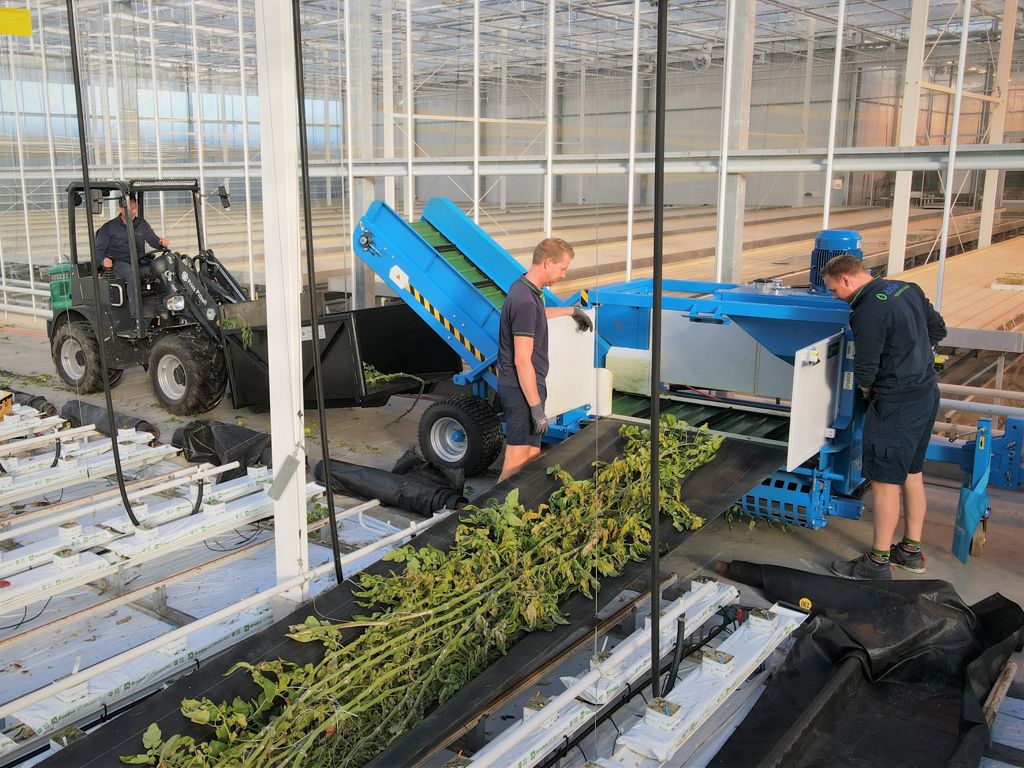

This fully electrically driven Bio Hopper is a very powerful and efficient machine for cleaning out various horticultural substrates (rockwool, perlite, coir, slabs), tomato leaf, groundcover and various crops (cucumber, tomato, strawberries, chrysanthemums, etc.). The Bio Hopper rolls up the canvas on which the material is drawn to the machine. The material falls on a conveyor belt, which transports it into a (tipping)container or on the concrete path. Instead of a containers, the material can also be driven out with a foliage fork.

The Bio Hopper is equipped with safetydoors. These safetydoors ensure that the winding of the canvas is fully shielded. Winding is only possible when the safetydoors are fully opened. This guarantees the safety of the operators!

The conveyor belt is extremely durable and reïnforced with steel bars. The steel bars ensure that an accidental damage to the belt has no influence on the strength of the belt, so you can always finish the job.

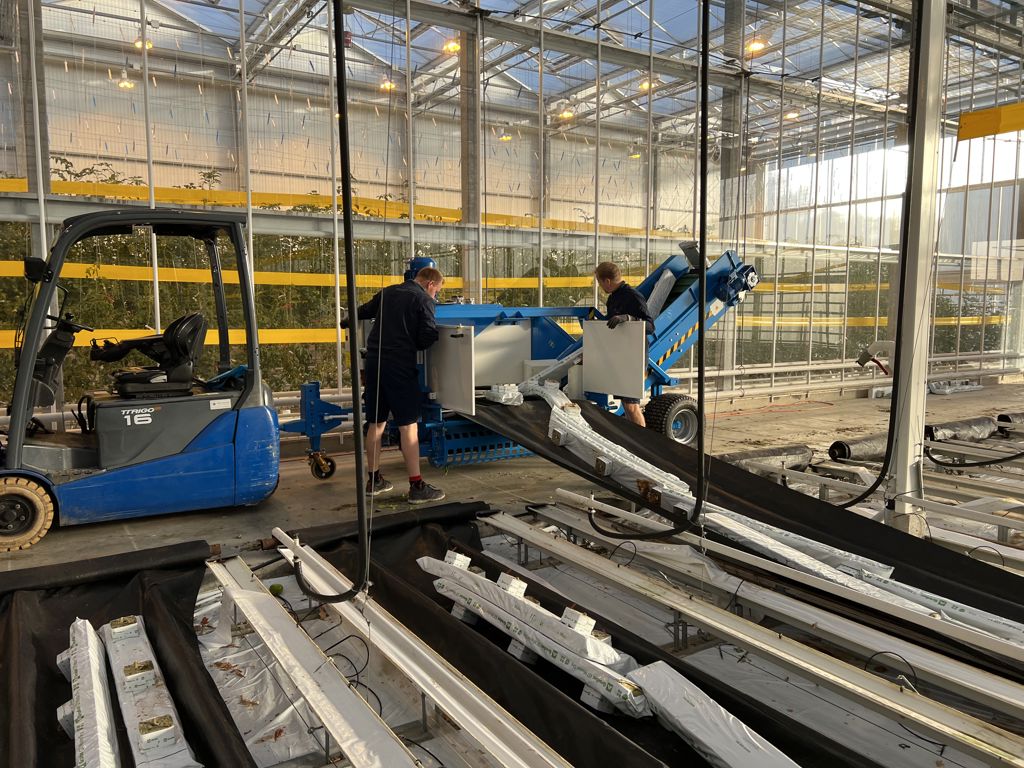

This crop rotation machine can be coupled behind a forklift for moving, is fed by means of a 16 Amp connection and is optionally available for various power supplies other than 400V @ 50Hz.

Specifications
Attribute name Attribute value
Item-number: 2460036
Main dimensions in transport position (mm): Length: 4950
Width: 1520
Height: 2000 (wheel axle in lowest position)
Weight (kg): 1,400
Gauge (mm): 1000
Tire dimensions: 24.0×13.00-12 (2x)
Processing capacity (m²/u): 1500-6000 (depending on circumstances)
Max. length of transport mat (m): 140
Hydraulic working pressure (bar): 150
Power Supply: 400VAC / 50Hz / 16A
Total power consumption (kW) 7
Accessories: WSS safetysystem with full shielding around fabric winder for maximum safety and efficiency
Force reducing roller tube on high torque intake unit
Multifunctional safety doors
Crop conveyor belt with canvas and robust flights
In height adjustable drawbar eye: Cat.2-Ø25,7 / Cat.3-Ø37,6
Rear axle in height adjustable
Proportional hydraulic controlls
Conveyor speed stepless adjustable
Integrated fabric steering for straight and foldfree rolling of the fabric
Options: Higher capacity depending on available power connection
Lighting
Oil cooler
Transport mats with steel core
Tipping containers
Modifications for deviating power supply voltages and frequency
