ANK2006LZB Grader / Leveler

Product code: 1100190

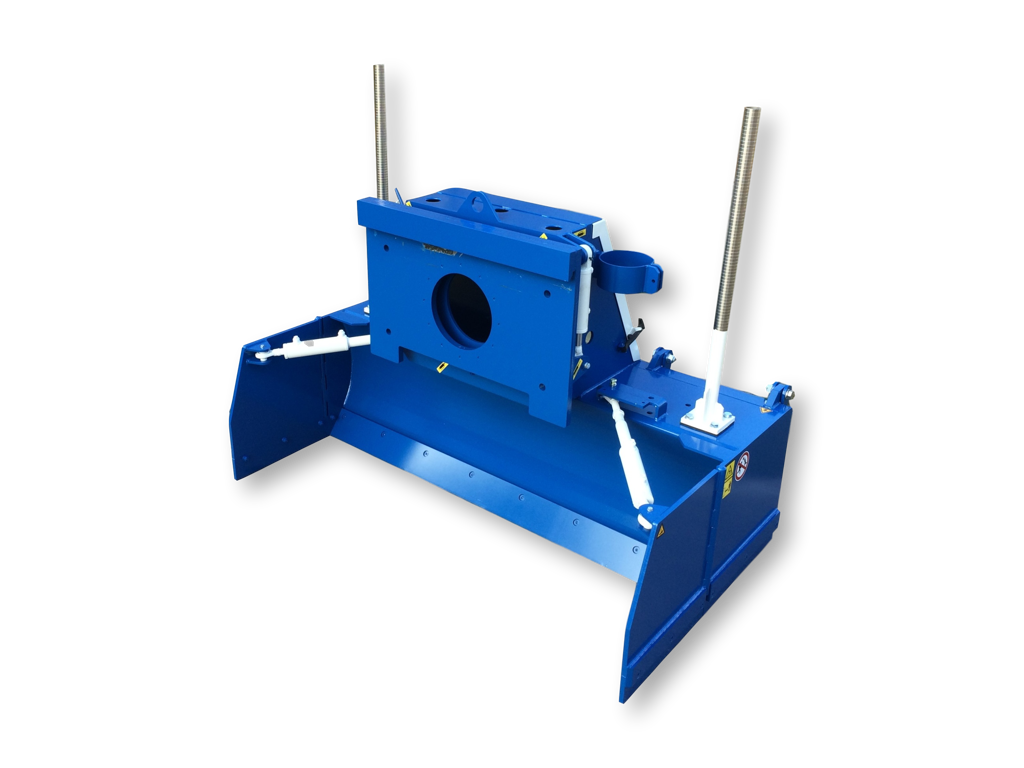

Picture of ANK2006LZB Grader / Leveler

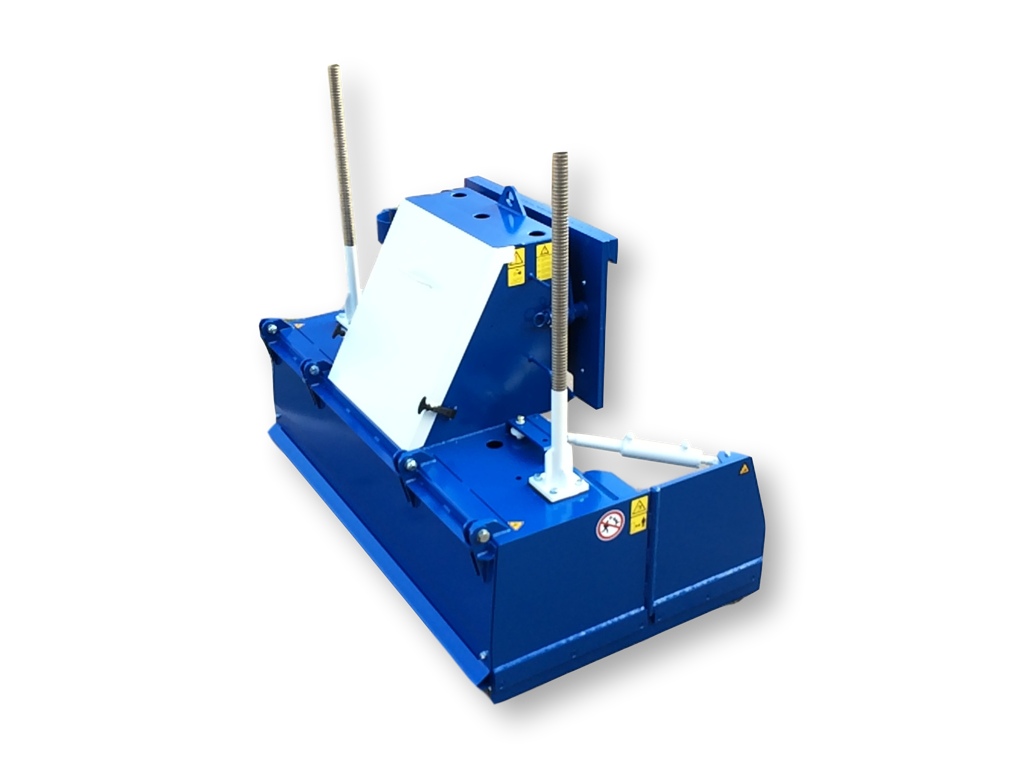

Picture of ANK2006LZB Grader / Leveler

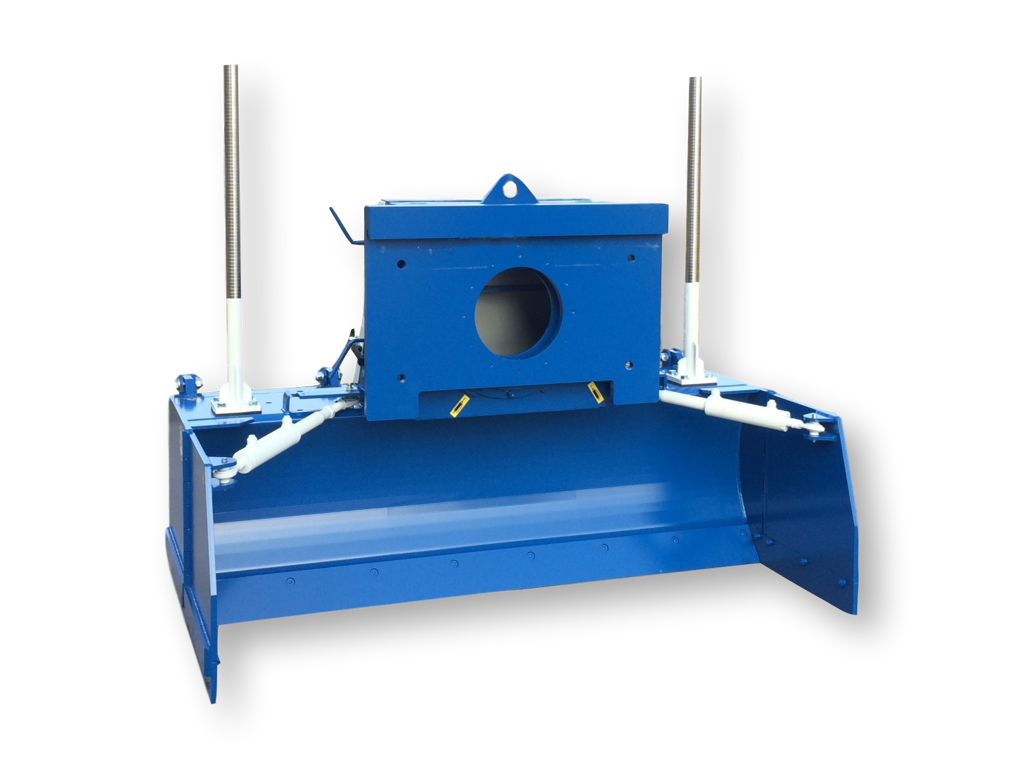

Picture of ANK2006LZB Grader / Leveler

Price on request

-
+
Ask a question

Description

The Automatic Leveling Graders, also called “levelers”, are especially designed for horizontal leveling or on slope leveling of earth on larger scale, for example road construction for the purpose of stelcon plates, new construction projects or sport fields.

The leveler is pulled by a shovel which is provided with a quick coupling sytem, a hydraulic pressure port, a pressureless return port and a supply voltage of 12VDC or 24VDC. Grading of the earth is done by means of a hardox wear plate that provides a ready to use flat surface.

Specifications
Attribute name Attribute value
Item-number: 1100190
Main dimensions in transport position (mm): Length: 1124
Width: 2070
Height: 1581 (with standard masts), 1270 (without masts)
Working width (mm): 2000 (with closed doors), 2600 (with open doors)
Doors: Hydraulic adjustable
Hardox 530-550 bottom blades
Leveling board: Hardox 530-550 front blade
Push board: Flat version
Soleplate: RAEX support plate
Hardox 400 wear plates
Receiver masts: Standard receiver masts (height: 1,0 mtr.)
Hydraulic system: Cylinders for height adjustment soleplate and locking of slewing ring and doors
Hydraulic working pressure (bar): 90-120 (depending on type of shovel)
Hydraulic flow (ltr/min.): 20-100 (depending on type of shovel)
Supply voltage (VDC): 12-24
Weigth (kg): 905
Options: Accumulator pressostat system
Long receiver masts
Various types of laser equipment
Hydraulic hoses and cables
